UL recognized PP/PUR drag chain cable, screened
Industrial Cables
Extremely flexible PP/PUR control cable for transmission of instrumentation and control signals for machine building and plant construction purposes, especially for continuous moving machine parts, e.g. within C-tracks. FLEXICS® CHAIN 99111C UL/c(UL) cables are designed for both indoor and outdoor applications when exposed to high mechanical stress. Resistant against a wide range of oils, greases, coolants and lubricants.

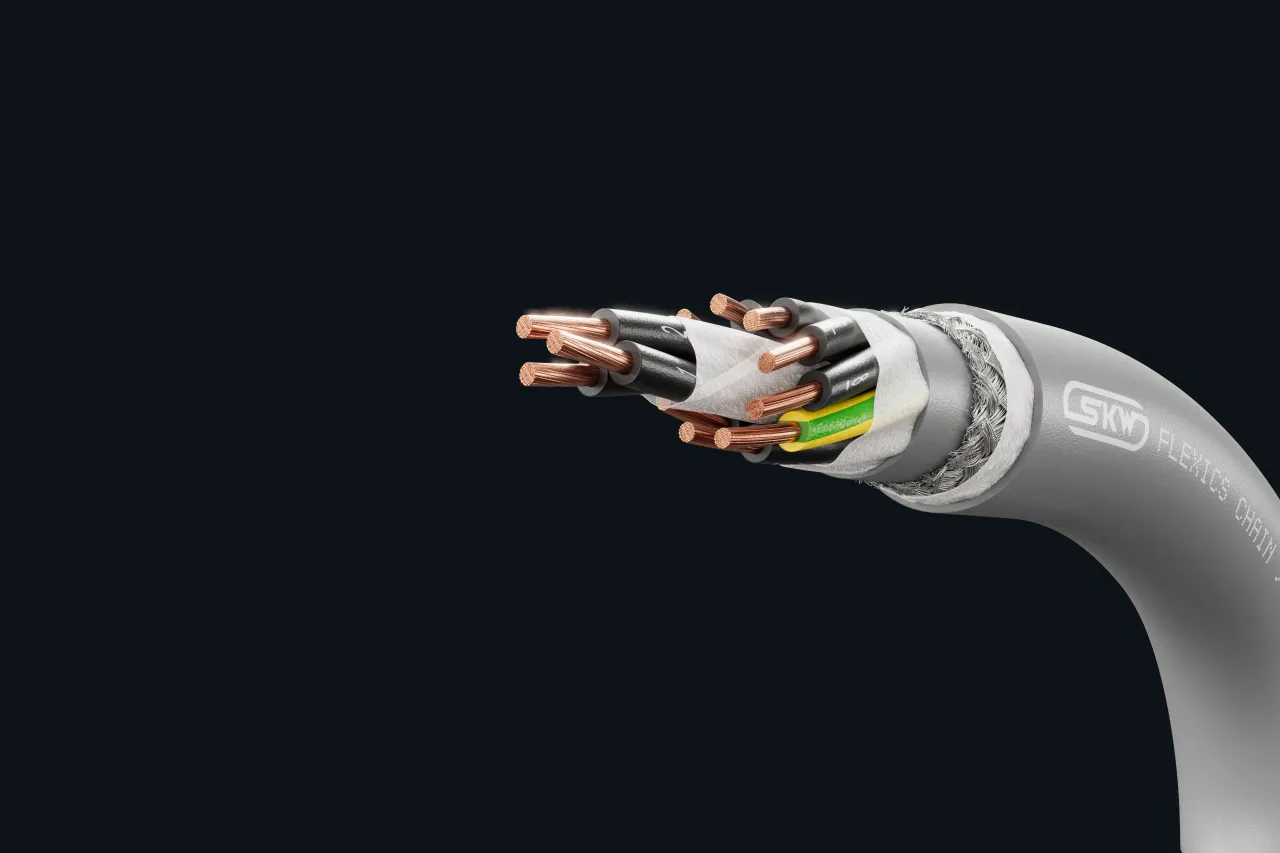

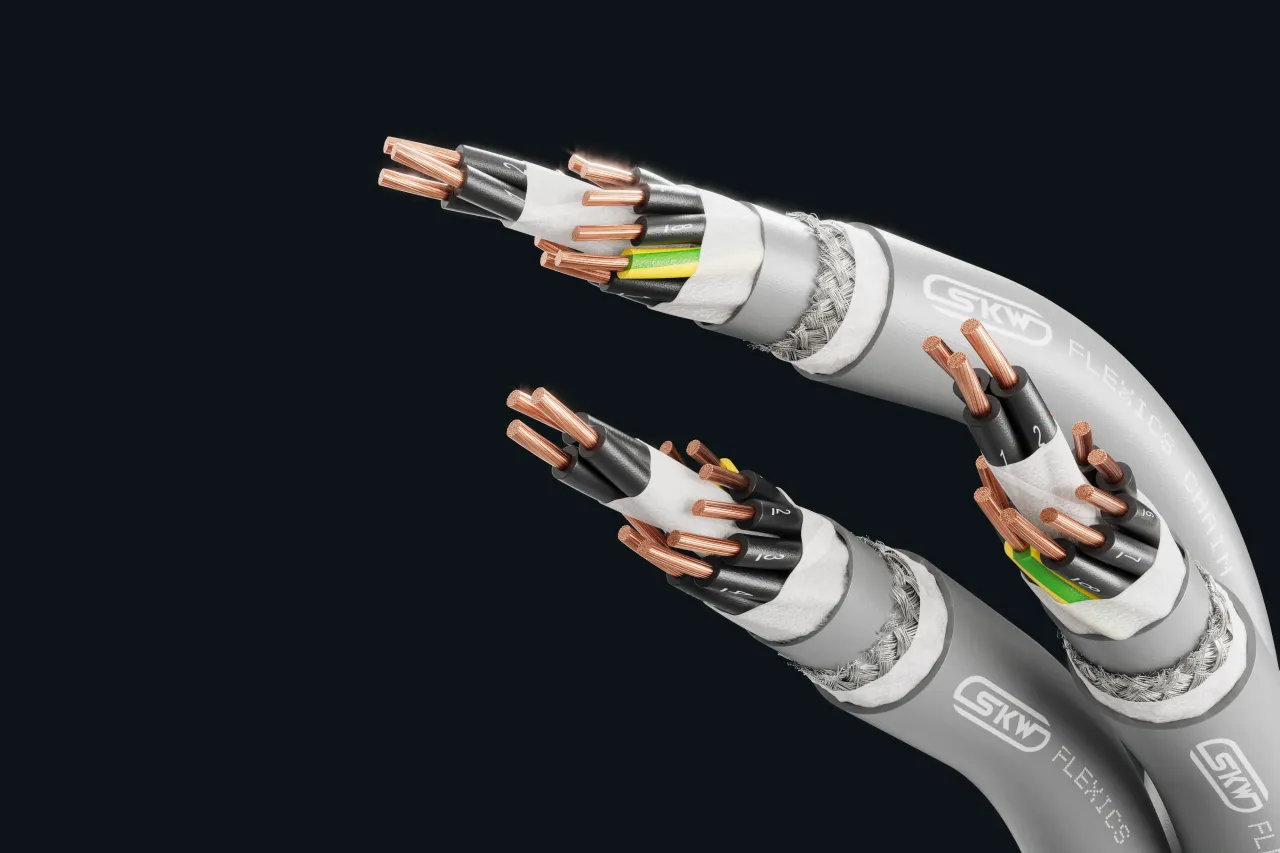

Design
This product consists of:
- 1Bare copper conductors, super fine wires class 6 according to DIN EN 60228 / VDE 0295 / IEC 60228
- 2Core insulation of polypropylene compound (PP)
- 3Cores stranded in layers with short lay-lengths
- 4Non-woven wrapping over each stranding layer
- 5Inner sheath of thermoplastic elastomer compound (TPE)
- 6Tinned copper wire braiding
- 7Non-woven wrapping over braiding
- 8Special polyurethane (PUR) outer sheath, colour: grey (RAL 7001)
Technical Data
Standard: Based on VDE 0285
Certificate:
- UL AWM Style 20234
- CSA C22.2 No.210-11, AWM
Test Voltage: 4000 V / 50 Hz
Rated Voltage:
- 300/500 V (Uo/U)
- 1000 V (UL/CSA)
Bending cycles: 5 million
Bending radius (min.):
- Fixed installation: 5 x Ø of cable
- Flexible use: 7.5x Ø of cable
Fire properties:
- EN 60332-1-2: self-extinguishing and flame retardant
- UL: vertical flame test VW-1, cable flame test
- CSA: FT1
Core identification: Black (continuously numbered), from 3 cores with green/yellow ground conductor
Temperature range:
- Fixed installation: -50°C up to 80°C
- Flexible use: -30°C up to 80°C
