FLEXICS® CHAIN 911

Download PDF

Add to inquiry

Download PDF

To inquiry

PP/PUR drag chain cable, unscreened

Industrial Cables

Extremely flexible PP/PUR control cable for transmission of instrumentation and control signals for machine building and plant construction purposes, especially for continuous moving machine parts, e.g. within C-tracks. FLEXICS® CHAIN 911 cables are designed for both indoor and outdoor applications when exposed to high mechanical stress. Resistant against a wide range of oils, greases, coolants and lubricants.

Design

This product consists of:

  • 1
    Bare copper conductors, super fine wires class 6 according to DIN EN 60228 / VDE 0295 / IEC 60228
  • 2
    Core insulation of polypropylene compound (PP)
  • 3
    Cores stranded in layers with short lay-lengths
  • 4
    Non-woven wrapping over each stranding layer
  • 5
    Special polyurethane (PUR) outer sheath, colour: grey (RAL 7001)

Technical Data

Standard: Based on VDE 0285
Test Voltage: 4000 V / 50 Hz
Rated Voltage: 300/500 V (Uo/U)
Bending cycles: 5 million
Bending radius (min.):
  • Fixed installation: 5 x Ø of cable
  • Flexible use: 7.5 x Ø of cable
Fire properties: EN 60332-1-2: self-extinguishing and flame retardant
Core identification: Black (continuously numbered), from 3 cores with green/yellow ground conductor
Temperature range:
  • Fixed installation: -50°C up to 80°C
  • Flexible use: -30°C up to 80°C

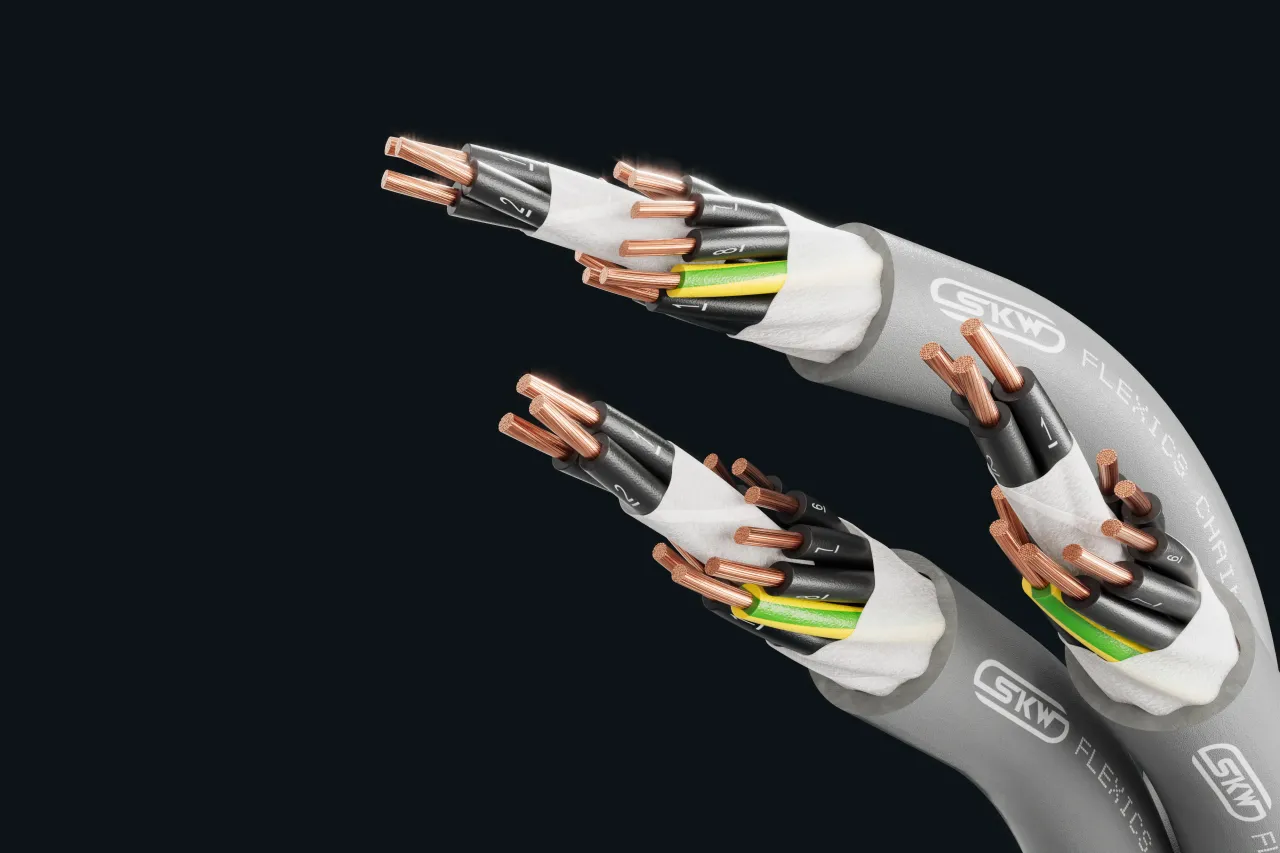

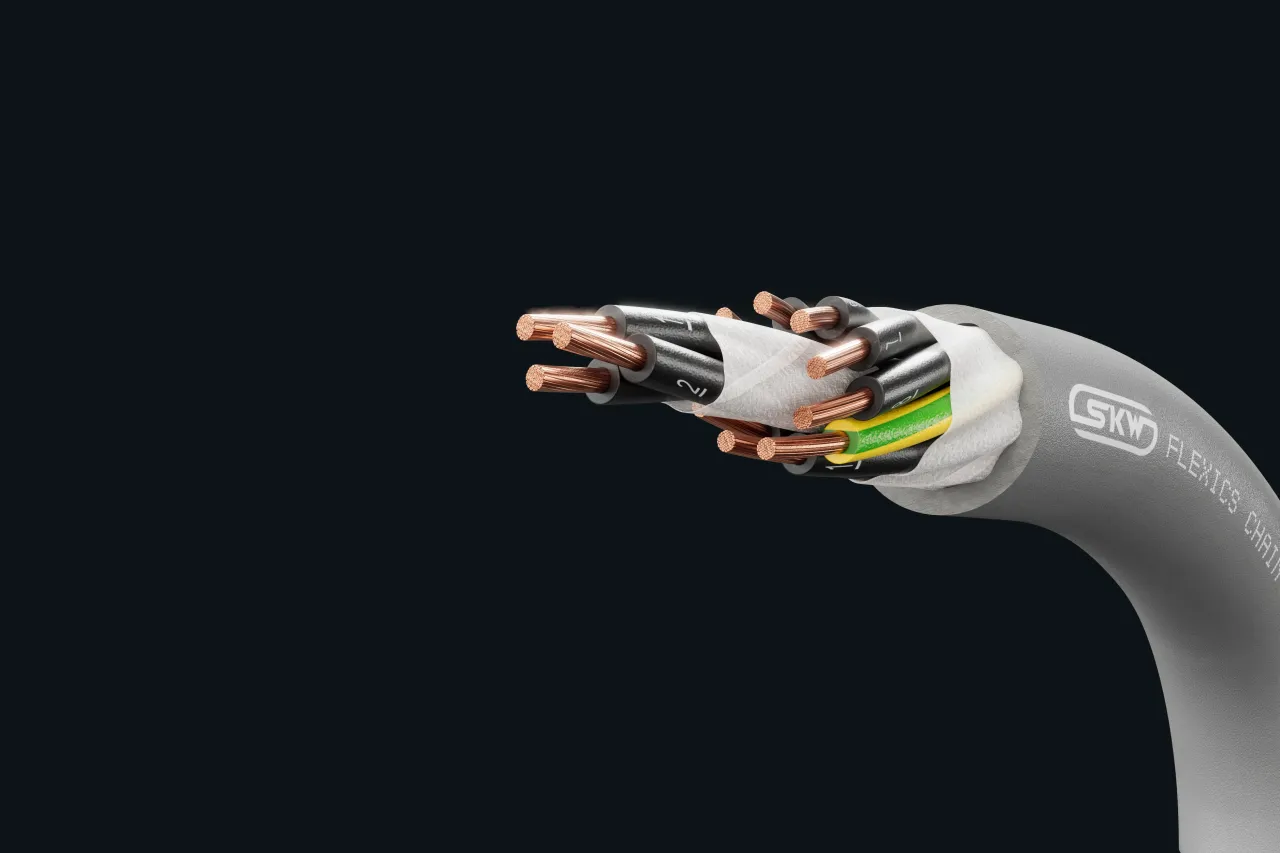

Cable image - FLEXICS® CHAIN 911
+
-
Cable image - FLEXICS® CHAIN 911
+
-
Cable image - FLEXICS® CHAIN 911
+
-

Contact us

Are you interested in this product?

Dogan Özcan, MSc

Product supervisor

+43 (0) 1 70170-154
[email protected]

Options

Add to inquiry
Number of cores x nominal cross-section (mm²)
Outer diameter appr. (mm)
Total weight appr. (kg/km)
2 x 0.5
5.0
33
3 G 0.5
5.2
40
4 G 0.5
6.5
54
5 G 0.5
7.0
62
7 G 0.5
7.7
76
12 G 0.5
9.1
114
18 G 0.5
11.0
165
25 G 0.5
13.2
218
2 x 0.75
5.6
42
3 G 0.75
5.9
50
4 G 0.75
6.7
61
5 G 0.75
7.2
72
7 G 0.75
8.8
100
12 G 0.75
10.2
158
18 G 0.75
12.2
219
25 G 0.75
15.4
314
2 x 1
6.0
48
3 G 1
6.5
61
4 G 1
7.2
72
5 G 1
7.7
93
7 G 1
9.5
122
12 G 1
11.2
196
18 G 1
13.7
278
25 G 1
17.2
385
36 G 1
20.1
625
41 G 1
22.0
779
50 G 1
24.0
953
65 G 1
27.2
1205
2 x 1.5
6.7
68
3 G 1.5
7.3
83
4 G 1.5
7.9
102
5 G 1.5
9.0
128
7 G 1.5
10.6
177
12 G 1.5
12.5
275
18 G 1.5
15.2
405
25 G 1.5
19.0
562
36 G 1.5
22.2
880
42 G 1.5
24.0
1209
50 G 1.5
26.2
1449
3 G 2.5
8.8
122
4 G 2.5
9.8
163
5 G 2.5
11.0
196
7 G 2.5
13.3
268
12 G 2.5
15.8
446
18 G 2.5
18.8
665
25 G 2.5
24.0
932
4 G 4
12.8
240
5 G 4
14.1
298
7 G 4
16.9
418
4 G 6
14.9
354
7 G 6
19.0
610
4 G 10
18.4
685
5 G 10
20.7
817
7 G 10
24.7
1023
4 G 16
21.3
1042
5 G 16
23.8
1292

Technical changes reserved.

All figures are therefore without guarantee.
