FLEXICS® CHAIN

Download PDF

Add to inquiry

Download PDF

To inquiry

PVC/PVC drag chain cable, unscreened

Industrial Cables

Extremely flexible PVC/PVC control cable for transmission of instrumentation and control signals for machine building and plant construction purposes, especially for continuous moving machine parts, e.g. within C-tracks. FLEXICS® CHAIN cables are designed for indoor applications when exposed to medium mechanical stress.

Design

This product consists of:

  • 1
    Bare copper conductors, super fine wires class 6 according to DIN EN 60228 / VDE 0295 / IEC 60228
  • 2
    Core insulation of special compound based on polyvinyl chloride (PVC)
  • 3
    Cores stranded together in short lay-lengths
  • 4
    Non-woven wrapping over each stranding layer
  • 5
    Outer sheath of special compound based on polyvinyl chloride (PVC), colour: grey (RAL 7001)

Technical Data

Standard: Based on VDE 0285
Test Voltage: 4000 V / 50 Hz
Rated Voltage: 300/500 V (Uo/U)
Bending cycles: 3 million
Bending radius (min.):
  • Fixed installation: 7.5 x Ø of cable
  • Flexible use: 10 x Ø of cable
Fire properties: EN 60332-1-2: self-extinguishing and flame retardant
Core identification: Black (continuously numbered), from 3 cores with green/yellow ground conductor
Temperature range:
  • Fixed installation: -30°C up to 80°C
  • Flexible use: -5°C up to 70°C

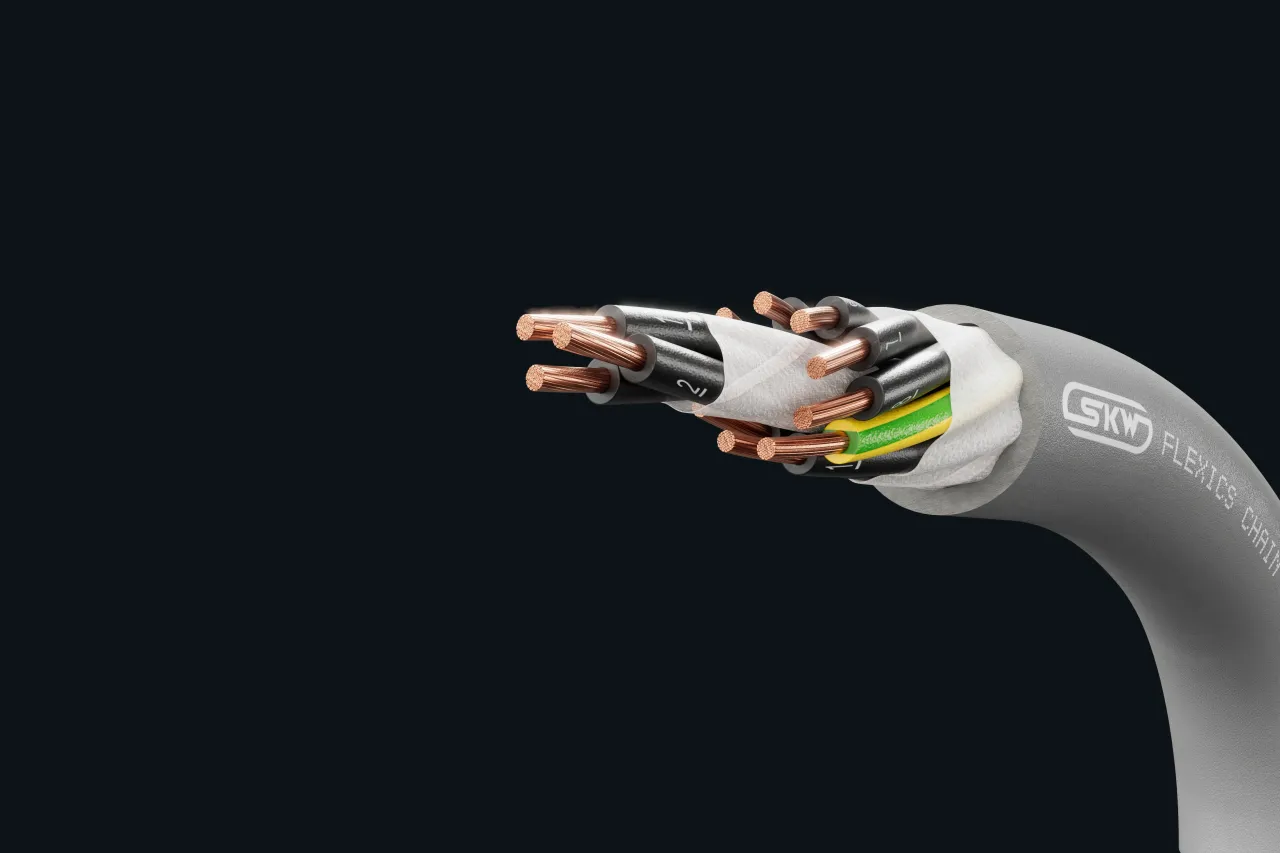

Cable image - FLEXICS® CHAIN
+
-

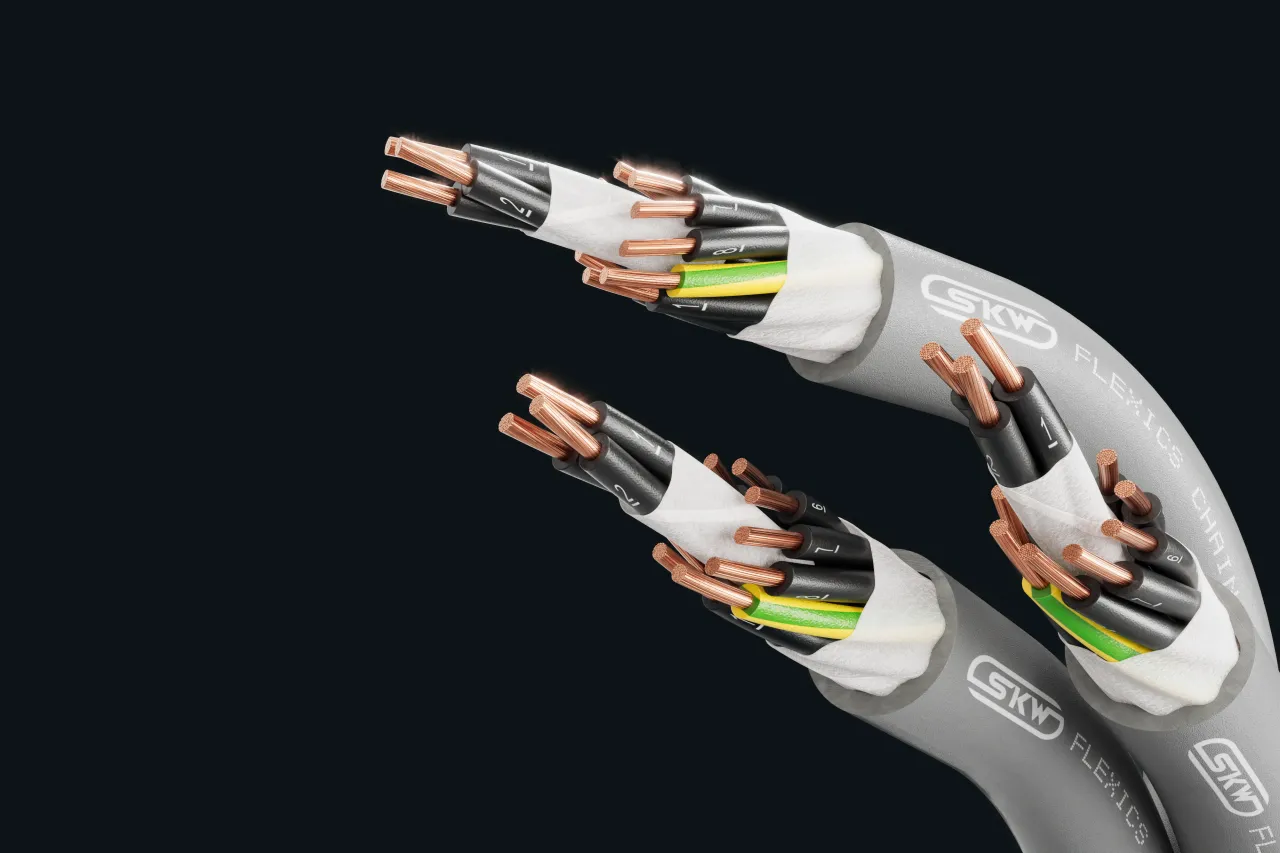

Cable image - FLEXICS® CHAIN
+
-
Cable image - FLEXICS® CHAIN
+
-

Contact us

Are you interested in this product?

Dogan Özcan, MSc

Product supervisor

+43 (0) 1 70170-154
[email protected]

Options

Add to inquiry
Number of cores x nominal cross-section (mm²)
Outer diameter appr. (mm)
Total weight appr. (kg/km)
2 x 0.5
5.2
32
3 G 0.5
5.5
41
4 G 0.5
6.1
52
5 G 0.5
6.6
64
7 G 0.5
8.0
92
12 G 0.5
9.6
128
18 G 0.5
11.5
195
25 G 0.5
14.2
284
2 x 0.75
5.7
39
3 G 0.75
6.2
51
4 G 0.75
6.8
65
5 G 0.75
7.4
80
7 G 0.75
8.9
117
12 G 0.75
10.5
169
18 G 0.75
12.7
254
25 G 0.75
15.8
376
2 x 1
6.0
46
3 G 1
6.6
60
4 G 1
7.3
78
5 G 1
7.9
96
7 G 1
9.6
144
12 G 1
11.4
205
18 G 1
13.9
314
25 G 1
17.6
498
2 x 1.5
6.7
60
3 G 1.5
7.4
80
4 G 1.5
8.1
102
5 G 1.5
9.1
130
7 G 1.5
10.8
192
12 G 1.5
13.0
273
18 G 1.5
15.6
417
25 G 1.5
19.8
632
3 G 2.5
9.0
128
4 G 2.5
10.0
161
5 G 2.5
11.2
205
7 G 2.5
13.5
300
12 G 2.5
16.0
440
18 G 2.5
20.4
703
25 G 2.5
24.7
1054
3 G 4
10.6
176
4 G 4
11.8
227
5 G 4
13.5
298
7 G 4
18.6
446
3 G 6
13.0
280
4 G 6
14.2
358
7 G 6
19.8
614

Technical changes reserved.

All figures are therefore without guarantee.
