FLEXICS® CHAIN 11C

Download PDF

Add to inquiry

Download PDF

To inquiry

PVC/PUR drag chain cable, screened

Industrial Cables

Extremely flexible PVC/PUR control cable for transmission of instrumentation and control signals for machine building and plant construction purposes, especially for continuous moving machine parts, e.g. within C-tracks. Cables are designed for indoor applications when exposed to medium mechanical stress. Resistant against a wide range of oils, greases, coolants and lubricants. Especially when excellent EMC behavior is requested.

Design

This product consists of:

  • 1
    Bare copper conductors, super fine wires class 6 according to DIN EN 60228 / VDE 0295 / IEC 60228
  • 2
    Core insulation of special compound based on polyvinyl chloride (PVC)
  • 3
    Cores stranded in layers with short lay-lengths
  • 4
    Non-woven wrapping over each stranding layer
  • 5
    Inner sheath of special compound based on polyvinyl chloride (PVC)
  • 6
    Tinned copper wire braiding
  • 7
    Non-woven wrapping over braiding
  • 8
    Special polyurethane (PUR) outer sheath, colour: grey (RAL 7001)

Technical Data

Standard: Based on VDE 0285
Test Voltage: 4000 V / 50 Hz
Rated Voltage: 300/500 V (Uo/U)
Bending cycles: 5 million
Bending radius (min.):
  • Fixed installation: 7.5 x Ø of cable
  • Flexible use: 10 x Ø of cable
Fire properties: EN 60332-1-2: self-extinguishing and flame retardant
Core identification: Black (continuously numbered), from 3 cores with green/yellow ground conductor
Temperature range:
  • Fixed installation: -30°C up to 80°C
  • Flexible use: -5°C up to 70°C

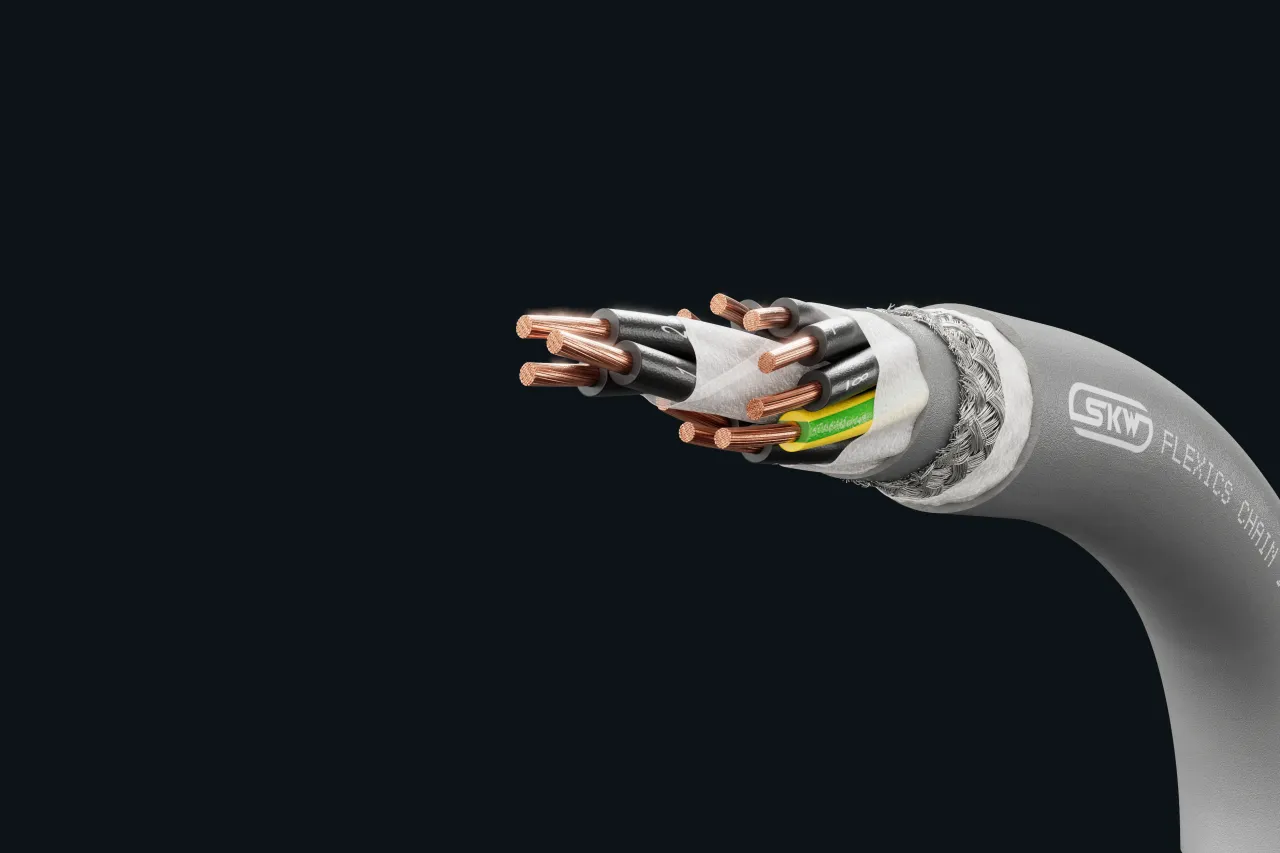

Cable image - FLEXICS® CHAIN 11C
+
-

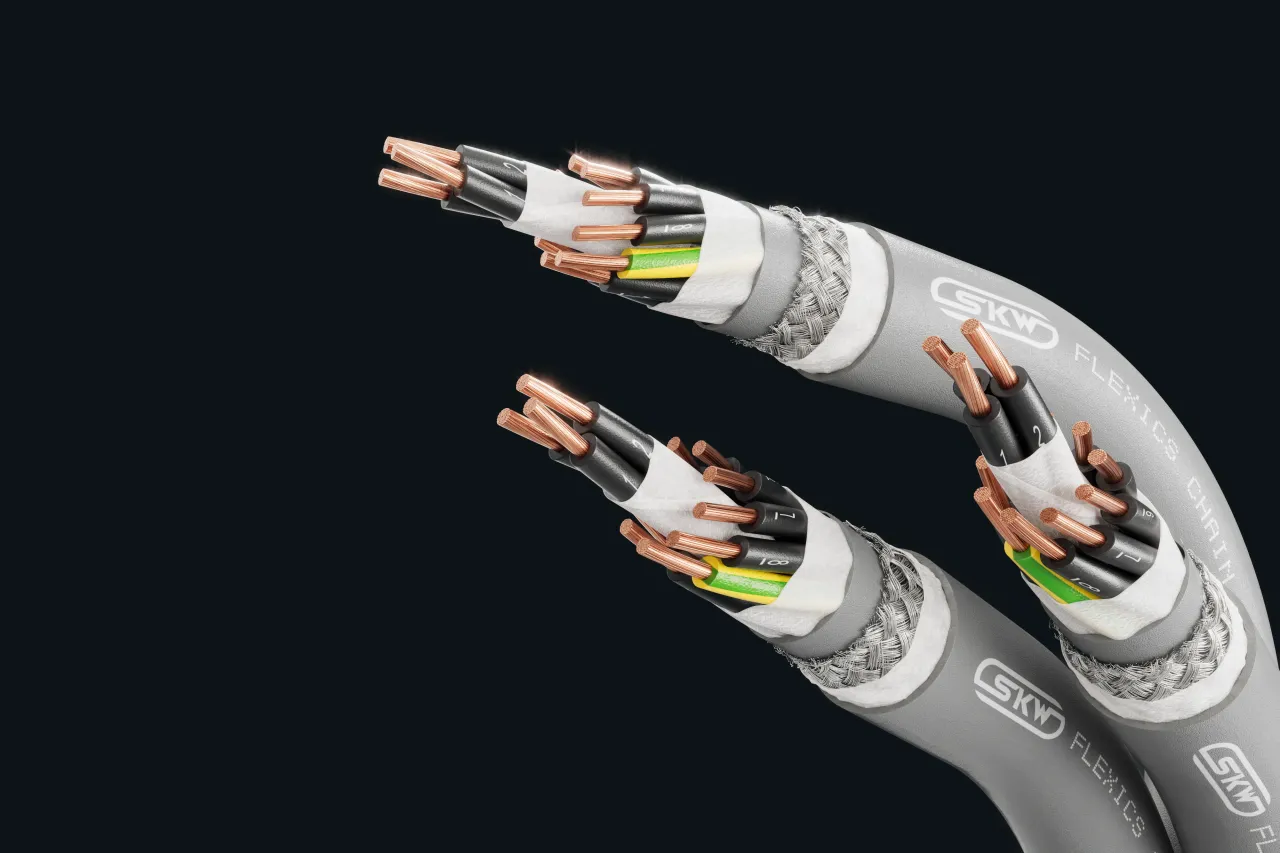

Cable image - FLEXICS® CHAIN 11C
+
-
Cable image - FLEXICS® CHAIN 11C
+
-

Contact us

Are you interested in this product?

Dogan Özcan, MSc

Product supervisor

+43 (0) 1 70170-154
[email protected]

Options

Add to inquiry
Number of cores x nominal cross-section (mm²)
Outer diameter appr. (mm)
Total weight appr. (kg/km)
2 x 0.5
6.9
70
3 G 0.5
7.3
80
4 G 0.5
7.9
94
5 G 0.5
8.5
106
7 G 0.5
9.8
139
12 G 0.5
11.5
194
18 G 0.5
13.4
182
25 G 0.5
15.9
390
2 x 0.75
7.3
80
3 G 0.75
7.8
92
4 G 0.75
8.4
112
5 G 0.75
9.0
124
7 G 0.75
10.7
168
12 G 0.75
12.5
253
18 G 0.75
14.9
356
25 G 0.75
17.4
479
2 x 1
7.7
92
3 G 1
8.2
100
4 G 1
8.9
129
5 G 1
9.8
154
7 G 1
11.4
198
12 G 1
13.4
300
18 G 1
16.1
429
25 G 1
18.8
590
34 G 1
23.3
825
41 G 1
25.1
980
50 G 1
27.6
1160
65 G 1
30.7
1670
2 x 1.5
8.4
112
3 G 1.5
9.0
133
4 G 1.5
9.9
162
5 G 1.5
10.9
188
7 G 1.5
12.7
251
12 G 1.5
15.2
378
18 G 1.5
17.8
536
25 G 1.5
21.2
766
34 G 1.5
26.1
1180
42 G 1.5
27.8
1458
50 G 1.5
30.3
1857
3 G 2.5
11.0
198
4 G 2.5
11.9
233
5 G 2.5
13.2
294
7 G 2.5
15.8
399
12 G 2.5
20.4
582
18 G 2.5
24.0
989
25 G 2.5
28.2
1400
4 G 4
13.7
348
5 G 4
15.3
420
7 G 4
20.0
651
4 G 6
16.1
499
7 G 6
23.0
844
3 G 10
20.4
855
4 G 10
23.0
1140
5 G 10
25.3
1310
7 G 10
28.0
1630
4 G 16
26.2
1391
5 G 16
28.6
1810

Technical changes reserved.

All figures are therefore without guarantee.
