FLEXICS® CHAIN 11 UL/c(UL)

Download PDF

Add to inquiry

Download PDF

To inquiry

UL recognized PVC/PUR drag chain cable, unscreened

Industrial Cables

Extremely flexible PVC/PUR control cable for transmission of instrumentation and control signals for machine building and plant construction purposes, especially for continuous moving machine parts, e.g. within C-tracks. FLEXICS® CHAIN 11 UL/c(UL) cables are designed for both indoor and outdoor applications when exposed to high mechanical stress. Resistant against a wide range of oils, greases, coolants and lubricants.

Design

This product consists of:

  • 1
    Bare copper conductors, super fine wires class 6 according to DIN EN 60228 / VDE 0295 / IEC 60228
  • 2
    Core insulation of special compound based on polyvinyl chloride (PVC)
  • 3
    Cores stranded in layers with short lay-lengths
  • 4
    Non-woven wrapping over each stranding layer
  • 5
    Special polyurethane (PUR) outer sheath, colour: grey (RAL 7001)

Technical Data

Standard: Based on VDE 0285
Certificate:
  • UL AWM Style 20234
  • CSA C22.2 No. 210-11, AWM
Test Voltage: 4000 V / 50 Hz
Rated Voltage:
  • 300/500 V (Uo/U)
  • 1000 V (UL/CSA)
Bending cycles: 5 million
Bending radius (min.):
  • Fixed installation: 7.5 x Ø of cable
  • Flexible use: 10 x Ø of cable
Fire properties:
  • EN 60332-1-2: self-extinguishing and flame retardant
  • UL: vertical flame test VW-1, cable flame test
  • CSA: FT1
Core identification: Black (continuously numbered), from 3 cores with green/yellow ground conductor
Temperature range:
  • Fixed installation: -30°C up to 80°C
  • Flexible use: -5°C up to 70°C

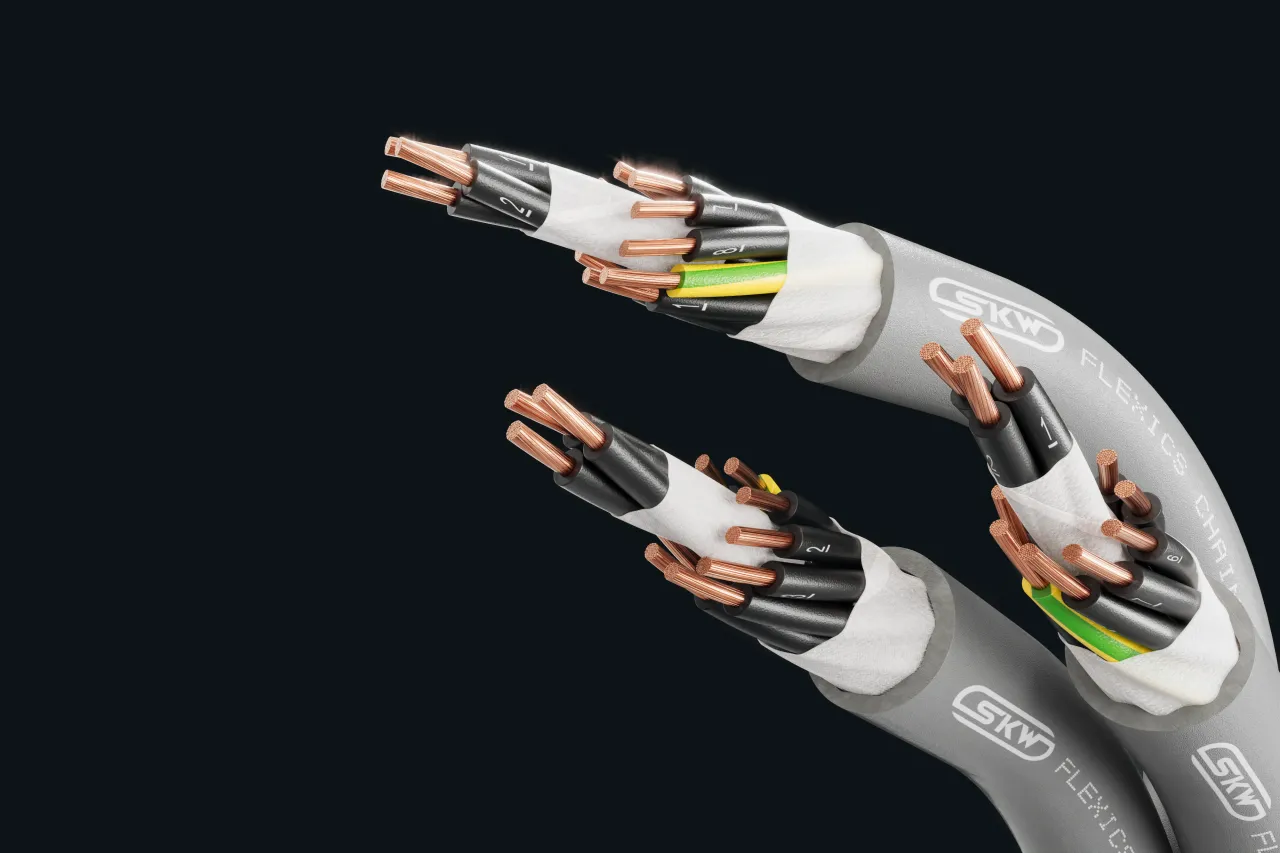

Cable image - FLEXICS® CHAIN 11 UL/c(UL)
+
-

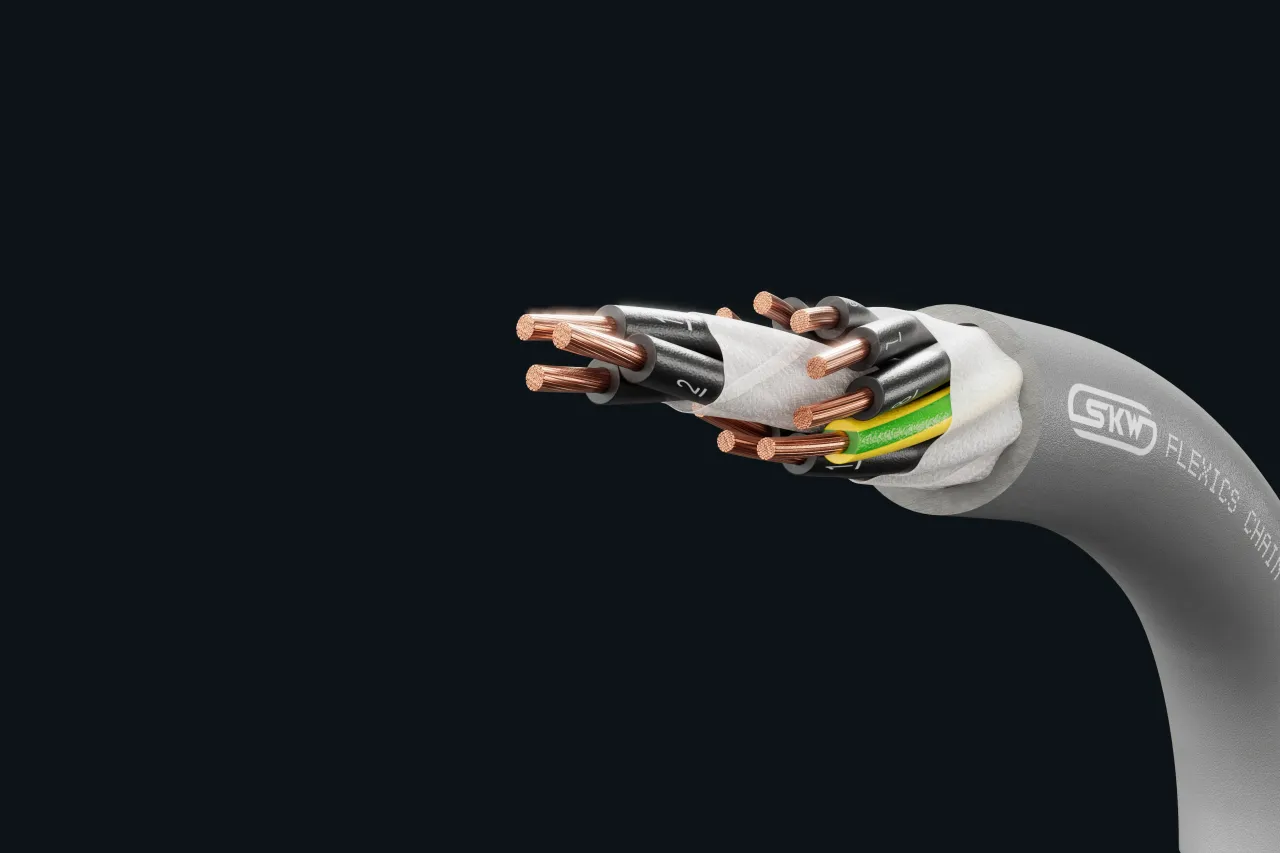

Cable image - FLEXICS® CHAIN 11 UL/c(UL)
+
-
Cable image - FLEXICS® CHAIN 11 UL/c(UL)
+
-

Contact us

Are you interested in this product?

Dogan Özcan, MSc

Product supervisor

+43 (0) 1 70170-154
[email protected]

Options

Add to inquiry
Number of cores x nominal cross-section (mm²)
Outer diameter appr. (mm)
Total weight appr. (kg/km)
2 x 0.5
6.5
46
3 G 0.5
6.8
55
4 G 0.5
7.5
69
5 G 0.5
8.0
85
7 G 0.5
9.8
117
12 G 0.5
10.8
155
18 G 0.5
12.7
224
25 G 0.5
15.2
328
2 x 0.75
6.8
54
3 G 0.75
7.3
66
4 G 0.75
8.0
82
5 G 0.75
8.7
101
7 G 0.75
10.7
142
12 G 0.75
11.7
196
18 G 0.75
13.9
282
25 G 0.75
16.6
404
2 x 1
7.1
60
3 G 1
7.7
75
4 G 1
8.5
94
5 G 1
9.2
117
7 G 1
11.4
168
12 G 1
12.6
231
18 G 1
15.1
343
25 G 1
18.4
538
2 x 1.5
7.7
78
3 G 1.5
8.4
98
4 G 1.5
9.3
125
5 G 1.5
10.1
151
7 G 1.5
11.9
221
12 G 1.5
13.9
318
18 G 1.5
16.9
484
25 G 1.5
20.1
671
3 G 2.5
9.3
134
4 G 2.5
10.3
170
5 G 2.5
11.3
205
7 G 2.5
13.4
295
12 G 2.5
16.0
440
18 G 2.5
20.4
698
25 G 2.5
24.7
1045
3 G 4
10.9
190
4 G 4
12.1
247
5 G 4
13.5
312
7 G 4
18.6
452
3 G 6
13.0
288
4 G 6
14.2
363
7 G 6
19.8
622

Technical changes reserved.

All figures are therefore without guarantee.
