FLEXICS® CHAIN 11

Download PDF

Add to inquiry

Download PDF

To inquiry

PVC/PUR drag chain cable, unscreened

Industrial Cables

Extremely flexible PVC/PUR control cable for transmission of instrumentation and control signals for machine building and plant construction purposes, especially for continuous moving machine parts, e.g. within C-tracks. FLEXICS® CHAIN 11 cables are designed for indoor applications when exposed to medium mechanical stress. Resistant against a wide range of oils, greases, coolants and lubricants.

Design

This product consists of:

  • 1
    Bare copper conductors, super fine wires class 6 according to DIN EN 60228 / VDE 0295 / IEC 60228
  • 2
    Core insulation of special compound based on polyvinyl chloride (PVC)
  • 3
    Cores stranded in layers with short lay-lengths
  • 4
    Non-woven wrapping over each stranding layer
  • 5
    Special polyurethane (PUR) outer sheath, colour: grey (RAL 7001)

Technical Data

Standard: Based on VDE 0285
Test Voltage: 4000 V / 50 Hz
Rated Voltage: 300/500 V (Uo/U)
Bending cycles: 5 million
Bending radius (min.):
  • Fixed installation: 7.5 x Ø of cable
  • Flexible use: 10 x Ø of cable
Fire properties: EN 60332-1-2: self-extinguishing and flame retardant
Core identification: Black (continuously numbered), from 3 cores with green/yellow ground conductor
Temperature range:
  • Fixed installation: -30°C up to 80°C
  • Flexible use: -5°C up to 70°C

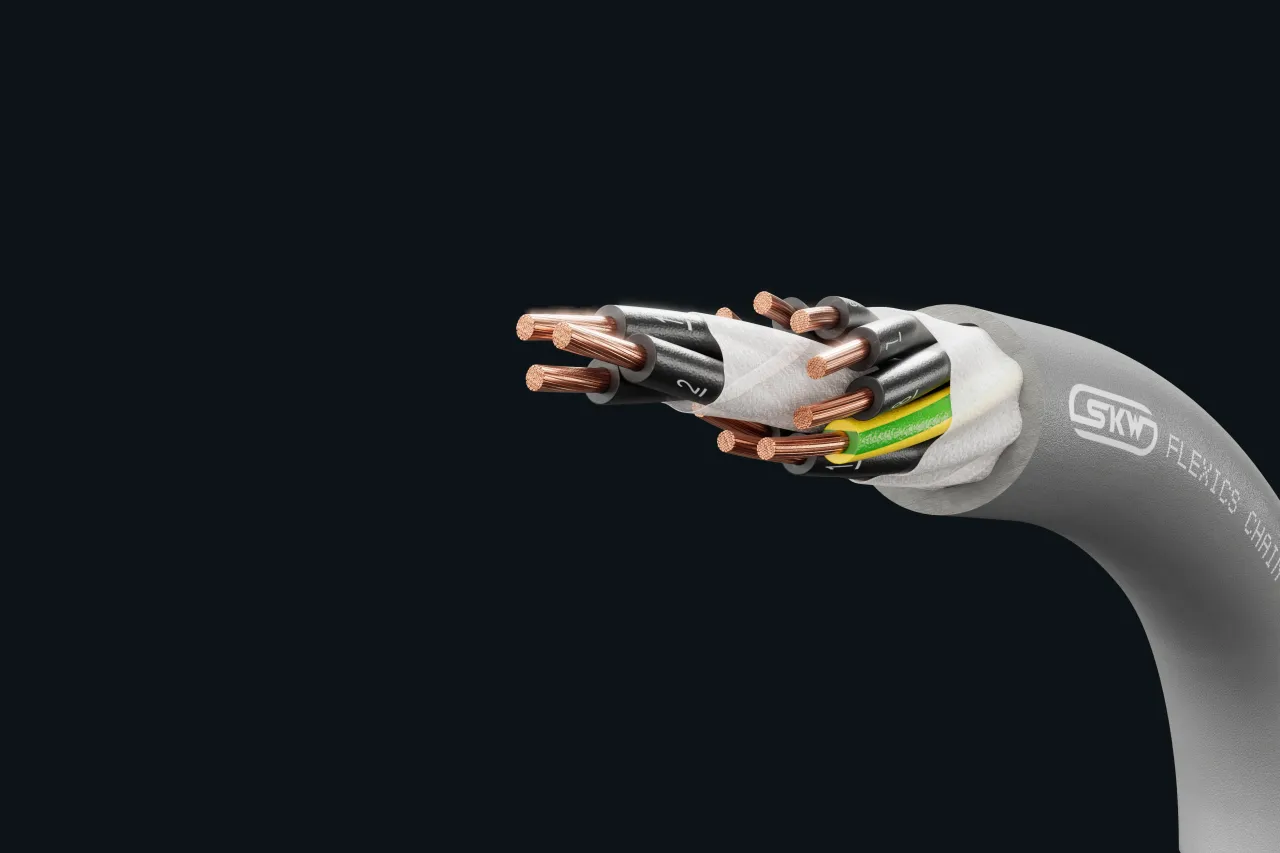

Cable image - FLEXICS® CHAIN 11
+
-

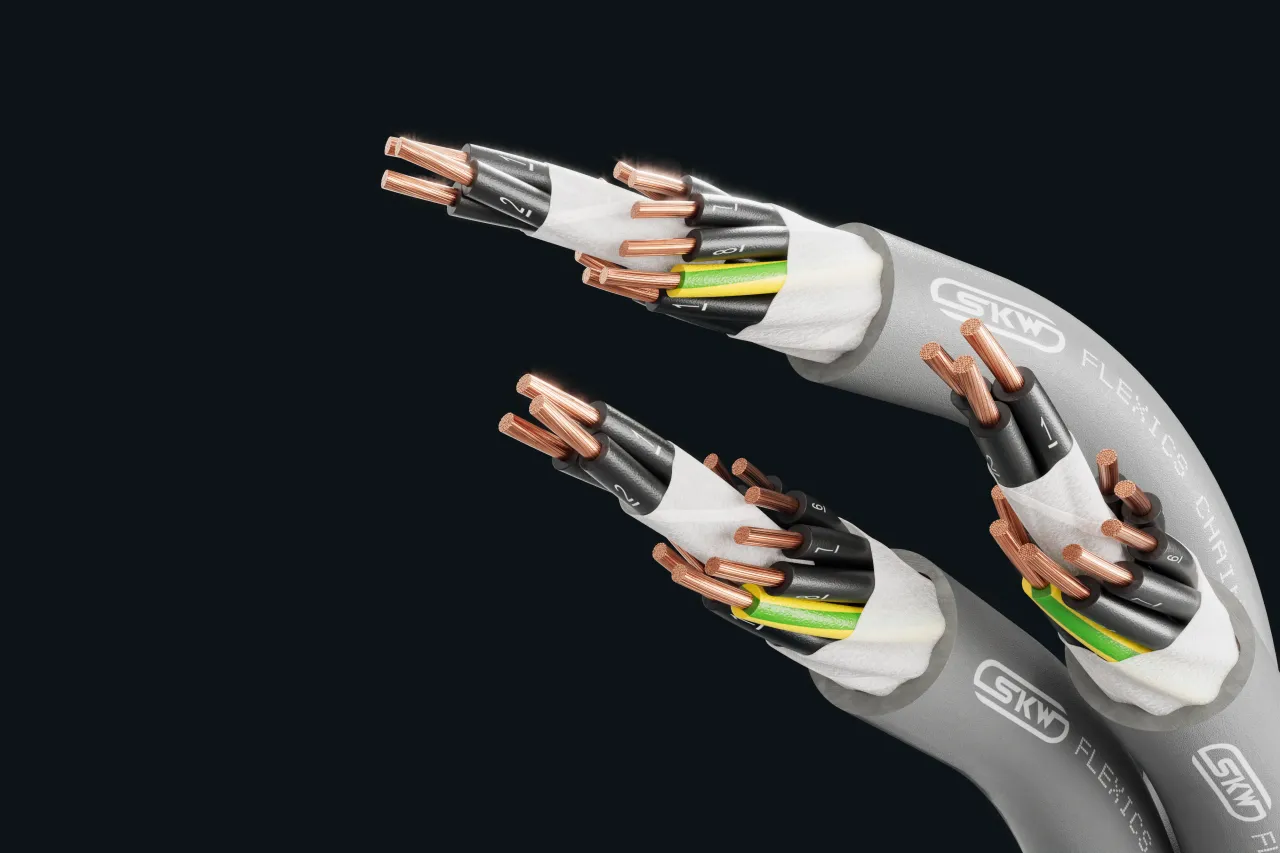

Cable image - FLEXICS® CHAIN 11
+
-
Cable image - FLEXICS® CHAIN 11
+
-

Contact us

Are you interested in this product?

Dogan Özcan, MSc

Product supervisor

+43 (0) 1 70170-154
[email protected]

Options

Add to inquiry
Number of cores x nominal cross-section (mm²)
Outer diameter appr. (mm)
Total weight appr. (kg/km)
2 x 0.5
5.3
31
3 G 0.5
5.7
39
4 G 0.5
6.3
51
5 G 0.5
6.7
62
7 G 0.5
8.0
90
12 G 0.5
9.6
125
18 G 0.5
11.5
191
25 G 0.5
14.2
280
2 x 0.75
5.7
38
3 G 0.75
6.2
50
4 G 0.75
6.8
64
5 G 0.75
7.4
78
7 G 0.75
8.9
115
12 G 0.75
10.5
166
18 G 0.75
12.7
249
25 G 0.75
15.6
356
2 x 1
6.0
44
3 G 1
6.6
59
4 G 1
7.3
76
5 G 1
7.9
94
7 G 1
9.6
141
12 G 1
11.4
201
18 G 1
13.9
310
25 G 1
17.4
490
34 G 1
18.4
776
41 G 1
19.7
925
50 G 1
21.7
1092
65 G 1
30.9
1400
2 x 1.5
6.7
59
3 G 1.5
7.4
78
4 G 1.5
8.1
100
5 G 1.5
9.1
128
7 G 1.5
10.8
189
12 G 1.5
13.0
269
18 G 1.5
15.6
415
25 G 1.5
19.4
628
34 G 1.5
20.6
1048
42 G 1.5
22.4
1290
50 G 1.5
24.2
1520
3 G 2.5
9.0
126
4 G 2.5
10.0
158
5 G 2.5
11.2
201
7 G 2.5
13.5
295
12 G 2.5
16.0
436
18 G 2.5
20.4
696
25 G 2.5
24.7
1042
3 G 4
10.6
175
4 G 4
12.0
224
5 G 4
13.5
292
7 G 4
18.6
440
3 G 6
13.0
276
4 G 6
14.2
352
7 G 6
19.8
608
3 G 10
16.2
660
4 G 10
18.1
750
5 G 10
20.3
990
7 G 10
24.3
1300
4 G 16
21.1
1200
5 G 16
23.5
1500

Technical changes reserved.

All figures are therefore without guarantee.
