PVC/PUR control cable, screened
Industrial Cables
Power, control and connecting cable for fixed laying and flexible applications, especially in wet areas of machine tools and transfer lines without mechanical stress and guided movements. Outdoor use only when protected from direct exposure to sunlight and in accordance with the indicated temperature range. Especially when excellent EMC behavior is requested.

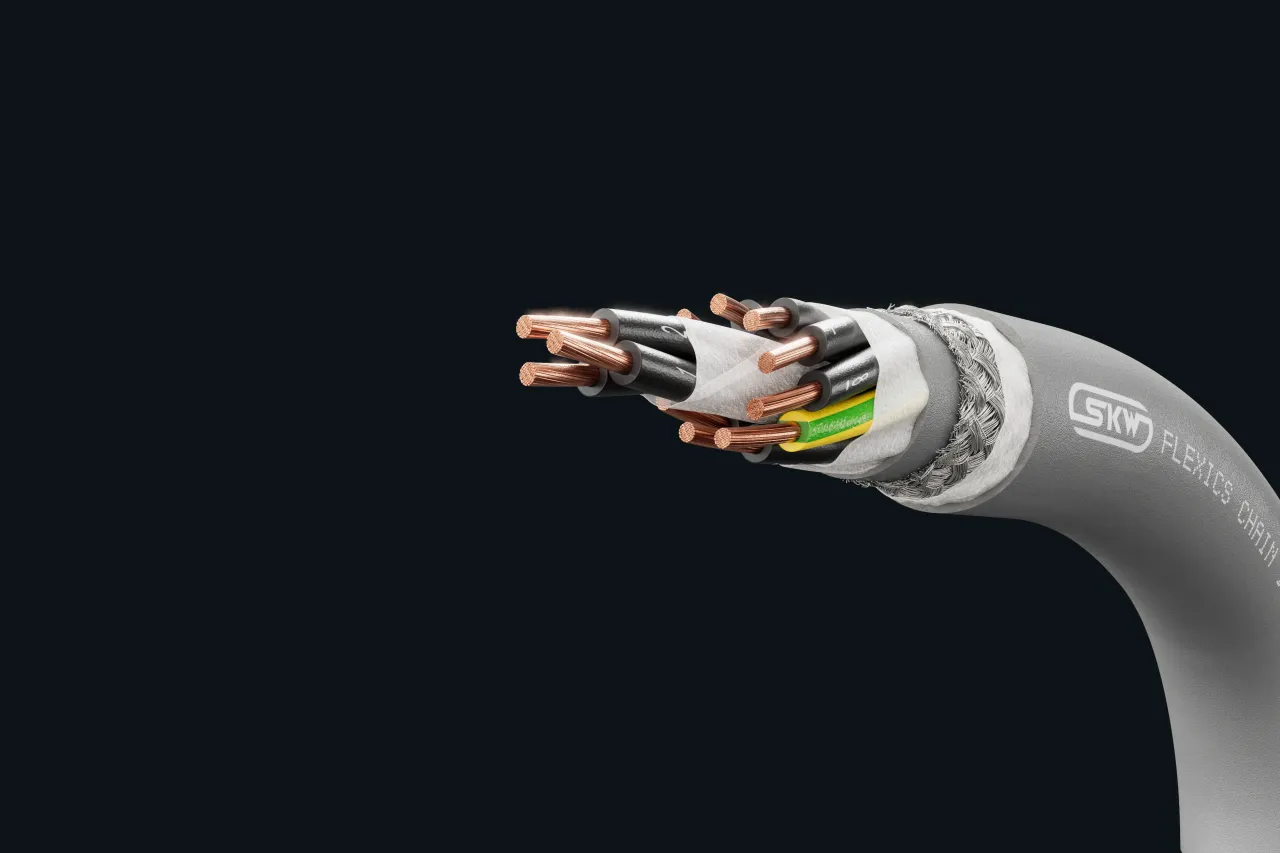

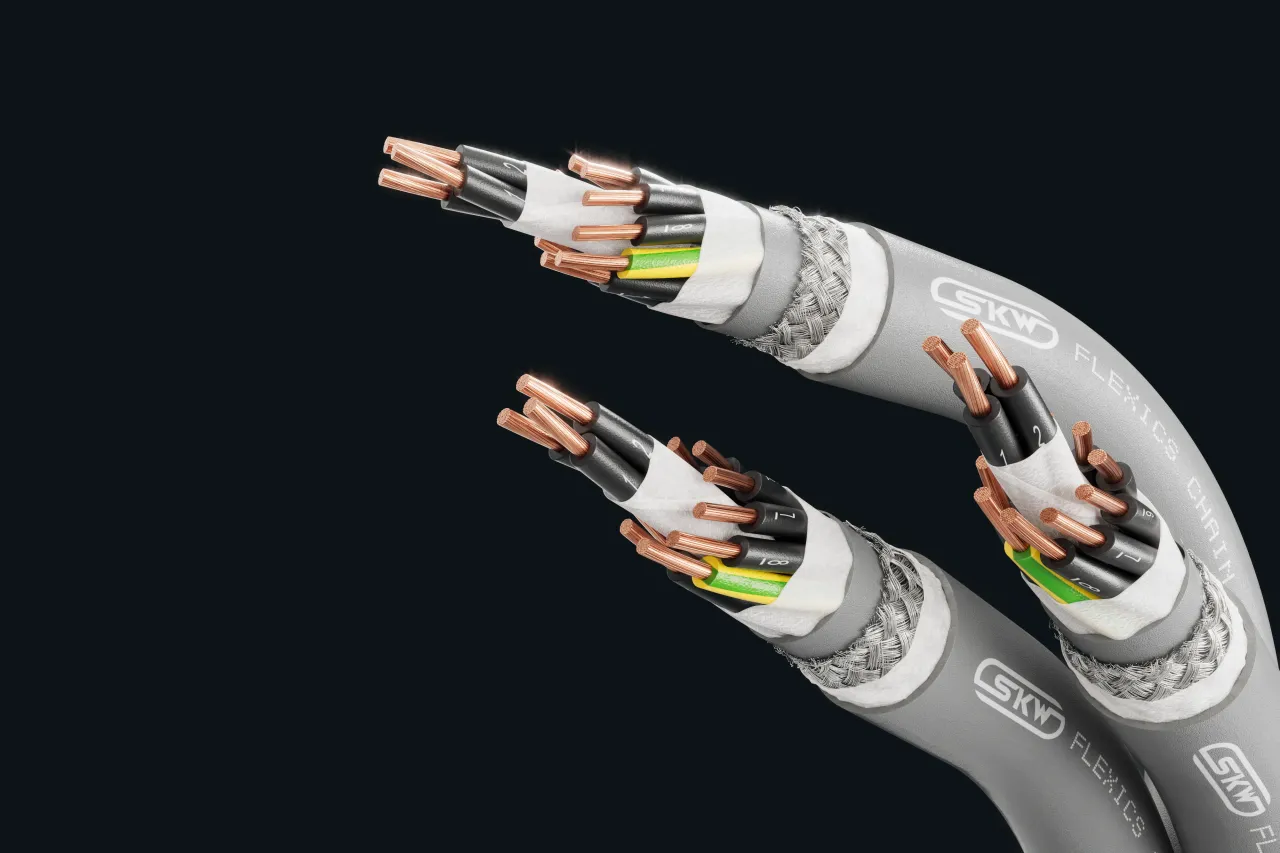

Design
This product consists of:
- 1Bare copper conductors, fine wires class 5 according to DIN EN 60228 / VDE 0295 / IEC 60228
- 2Core insulation of special compound based on polyvinyl chloride (PVC)
- 3Cores are stranded in layers with optimal lay-length
- 4Non-woven tape separation
- 5Inner sheath of special compound based on polyvinyl chloride (PVC)
- 6Tinned copper wire braiding
- 7Non-woven tape separation over braiding (optional)
- 8Special polyurethane (PUR) outer sheath, colour: grey (RAL 7001)
Technical Data
Standard: Based on VDE 0285
Test Voltage: 4000 V / 50 Hz
Rated Voltage: 300/500 V (Uo/U)
Bending radius (min.):
- Fixed installation: 6 x Ø of cable
- Flexible use: 20 x Ø of cable
Core identification: Black (continuously numbered), from 3 cores with green/yellow ground conductor
Temperature range:
- Fixed installation: -40°C up to 80°C
- Flexible use: -5°C up to 70°C
