FLEXICS® 11

Download PDF

Add to inquiry

Download PDF

To inquiry

PVC/PUR control cable, unscreened

Industrial Cables

Power, control and connecting cable for fixed laying and flexible applications, especially in wet areas of machine tools and transfer lines without mechanical stress and guided movements. Outdoor use only when protected from direct exposure to sunlight in accordance with the indicated temperature range.

Design

This product consists of:

  • 1
    Bare copper conductors, fine wires class 5 according to DIN EN 60228 / VDE 0295 / IEC 60228
  • 2
    Core insulation of special compound based on polyvinyl chloride (PVC)
  • 3
    Cores are stranded in layers with optimal lay-length
  • 4
    Non-woven tape separation (optional)
  • 5
    Special polyurethane (PUR) outer sheath, colour: grey (RAL 7001)

Technical Data

Standard: Based on VDE 0285
Test Voltage: 4000 V / 50 Hz
Rated Voltage: 300/500 V (Uo/U)
Bending radius (min.):
  • Fixed installation: 4 x Ø of cable
  • Flexible use: 12.5 x Ø of cable
Core identification: Black (continuously numbered), from 3 cores with green/yellow ground conductor
Temperature range:
  • Fixed installation: -40°C up to 80°C
  • Flexible use: -5°C up to 70°C

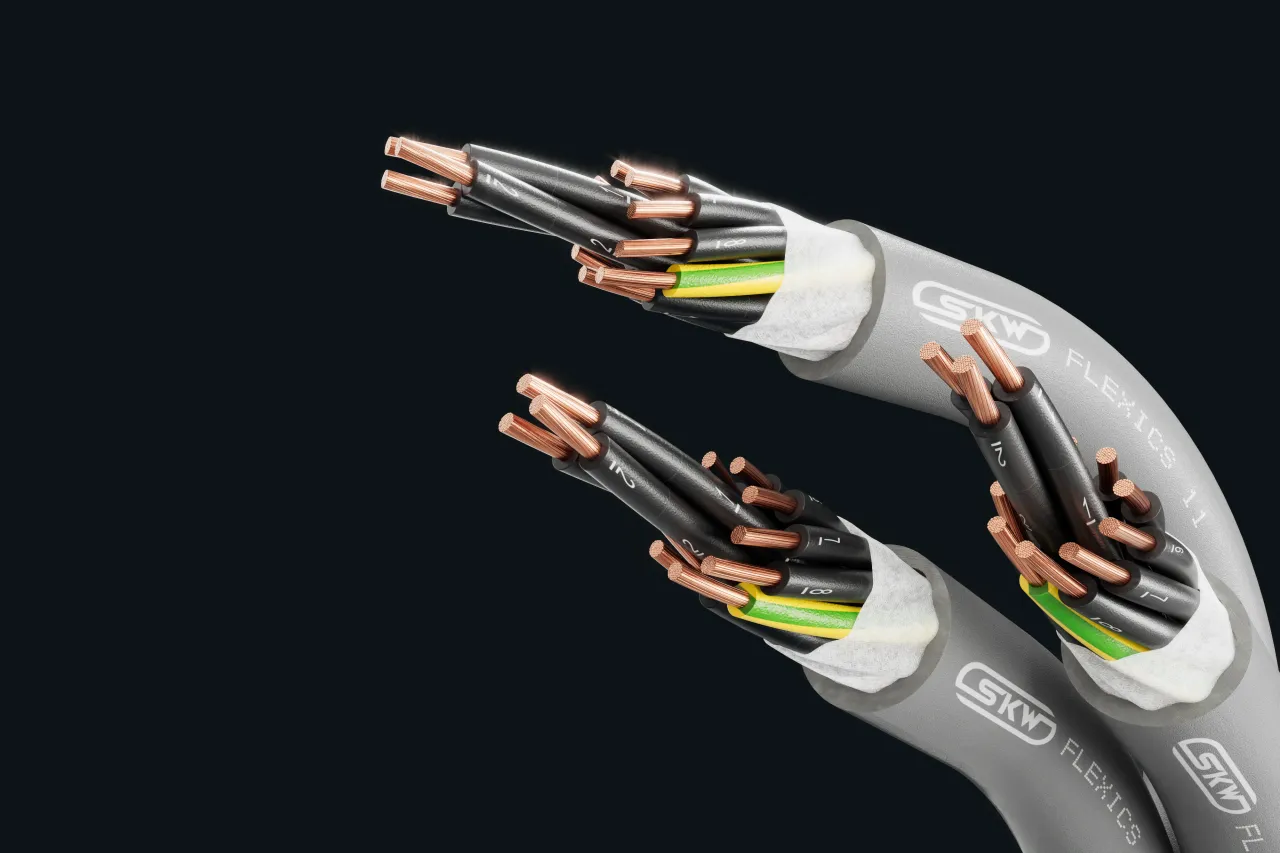

Cable image - FLEXICS® 11
+
-

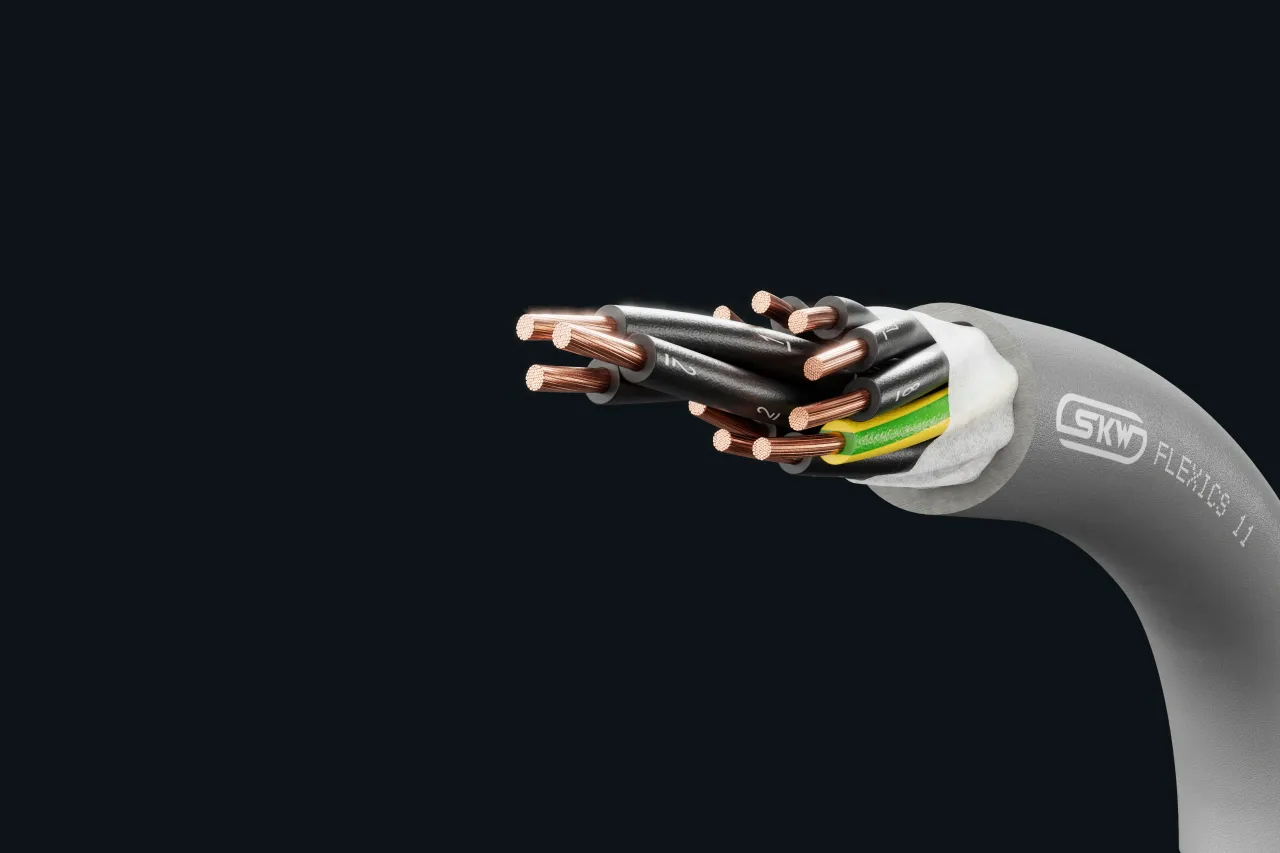

Cable image - FLEXICS® 11
+
-
Cable image - FLEXICS® 11
+
-

Contact us

Are you interested in this product?

Dogan Özcan, MSc

Product supervisor

+43 (0) 1 70170-154
[email protected]

Options

Add to inquiry
Number of cores x nominal cross-section (mm²)
Outer diameter appr. (mm)
Total weight appr. (kg/km)
2 x 0.5
4.8
45
3 G 0.5
5.1
55
4 G 0.5
5.7
62
5 G 0.5
6.2
75
7 G 0.5
7.2
90
10 G 0.5
8.8
120
12 G 0.5
9.1
135
18 G 0.5
10.7
205
25 G 0.5
13.2
270
34 G 0.5
14.7
380
42 G 0.5
15.8
415
2 x 0.75
5.4
44
3 G 0.75
5.7
53
4 G 0.75
6.2
64
5 G 0.75
6.8
76
5 G 0.75
6.8
76
10 G 0.75
9.6
140
12 G 0.75
9.9
170
18 G 0.75
11.9
260
25 G 0.75
14.5
282
34 G 0.75
16.3
475
42 G 0.75
17.7
600
2 x 1
6.9
72
3 G 1
7.3
85
4 G 1
8.1
106
5 G 1
9.0
130
7 G 1
9.8
162
10 G 1
12.8
242
12 G 1
13.0
265
18 G 1
15.5
386
25 G 1
18.7
532
34 G 1
21.5
750
42 G 1
25.6
1100
50 G 1
27.5
1266
2 x 1.5
6.2
68
3 G 1.5
6.6
87
4 G 1.5
7.2
106
5 G 1.5
8.2
131
7 G 1.5
9.8
173
12 G 1.5
12.0
293
18 G 1.5
14.5
454
25 G 1.5
17.8
641
30 G 1.5
18.0
800
2 x 2.5
7.8
110
3 G 2.5
8.3
146
4 G 2.5
9.2
183
5 G 2.5
10.1
222
7 G 2.5
12.3
293
12 G 2.5
15.3
512
4 G 4
11.0
291
5 G 4
12.7
355
7 G 4
14.0
503
4 G 6
13.4
468
5 G 6
14.9
570
7 G 6
16.5
808
4 G 10
16.9
720
5 G 10
18.7
894
7 G 10
20.9
1295
4 G 16
19.8
1063

Technical changes reserved.

All figures are therefore without guarantee.
