F-2YJA2Y

Download PDF

Add to inquiry

Download PDF

To inquiry

Telecommunication underground cable, screened, longitudinally water-proof

Telecommunications cables

Underground cable for use in telecommunications installations and related installations. Suitable for installation under ground, in water, cable ducts etc.

Design

This product consists of:

  • 1
    Kupferleiter, rund eindrähtig (RE)
  • 2
    Aderisolation (foam-skin PE), Adern sind zu Sternvierern und diese in Lagen verseilt, Verseilband längswasserdicht durch Petrolatfüllung
  • 3
    Gemeinsame Aderumhüllung (Kunststofffolie)
  • 4
    Schirm (copolymer beschichtete Aluminiumfolie, die mit dem PE-Mantel verschweißt ist)
  • 5
    Mantel (PE schwarz, UV-beständig)

Technical Data

Standard: adapted to Telekom Austria-Standard
Test Voltage: 2 kV (core/screen)
Rated Voltage: max. 200 Veff
Bending radius (min.): 10 x Ø des Kabels
Fire properties: CPR-Klassifizierung: Fca
Core identification: Colour code with trace quad in each layer (TA standard)
Temperature range:
  • Laying temperature: min. -20°C
  • Conductor temperature: max. 80°C
  • Fixed installation: -20°C up to 50°C
  • Flexible use: -20°C up to 70°C

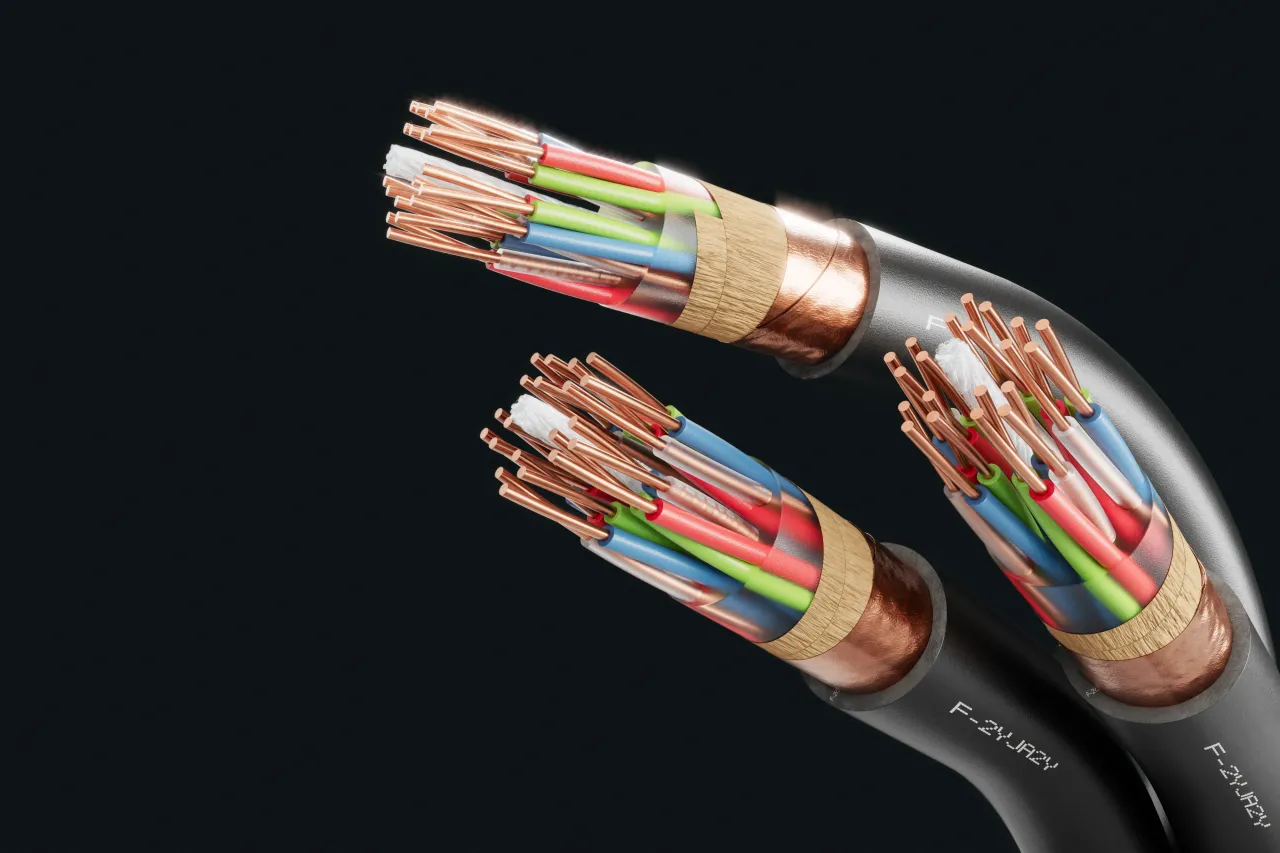

Cable image - F-2YJA2Y
+
-

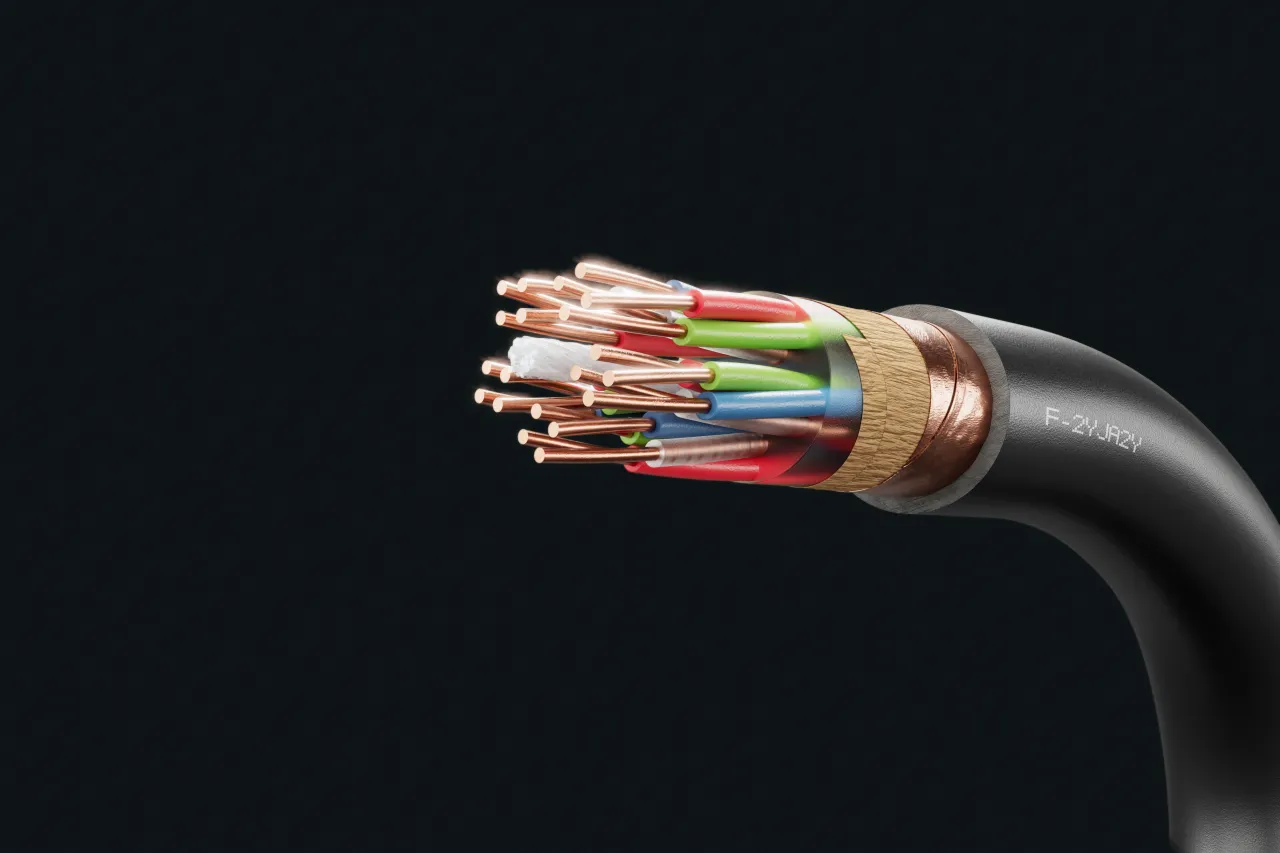

Cable image - F-2YJA2Y
+
-
Cable image - F-2YJA2Y
+
-

Contact us

Are you interested in this product?

Dogan Özcan, MSc

Product supervisor

+43 (0) 1 70170-154
[email protected]

Electricity

Add to inquiry
Parameter
Unit
Values
Conductor diameter (mm)
mm
0.6
0.8
Conductor resistance, max. at 20 °C (Ω/km)
Ω/km
130
73.2
Insulation resistance, min. at 20 °C (MΩ/km)
MΩ/km
5000
5000
Mutual capacitance (approx. value), at 800 Hz (nF/km)
nF/km
50
50

Options

Add to inquiry
Number of pairs x nominal diameter
Outer diameter appr. (mm)
Total weight appr. (kg/km)
Standard lengths/packing (m)
6 x 2 x 0.6
10.7
122
500 T, 1000 T
10 x 2 x 0.6
12.1
165
500 T, 1000 T
20 x 2 x 0.6
17.0
319
500 T, 1000 T
30 x 2 x 0.6
17.9
391
500 T, 1000 T
40 x 2 x 0.6
19.4
481
500 T, 1000 T
50 x 2 x 0.6
21.1
582
500 T, 1000 T
60 x 2 x 0.6
22.2
664
500 T, 1000 T
80 x 2 x 0.6
29.0
978
500 T, 1000 T
100 x 2 x 0.6
31.1
1162
500 T, 1000 T
6 x 2 x 0.8
12.1
165
500 T, 1000 T
10 x 2 x 0.8
13.8
232
500 T, 1000 T
20 x 2 x 0.8
19.8
267
500 T, 1000 T
30 x 2 x 0.8
20.9
586
500 T, 1000 T
40 x 2 x 0.8
22.8
730
500 T, 1000 T
50 x 2 x 0.8
25.3
905
500 T, 1000 T
60 x 2 x 0.8
31.0
1114
500 T, 1000 T
80 x 2 x 0.8
34.0
1470
500 T, 1000 T
100 x 2 x 0.8
37.0
1840
500 T, 1000 T

Technical changes reserved.

All figures are therefore without guarantee.
