F-2YC2Y

Download PDF

Add to inquiry

Download PDF

To inquiry

Telecommunication underground cable, screened

Underground cable for use in telecommunications installations and related installations. Suitable for installation under ground, in water, cable ducts etc.

Design

This product consists of:

  • 1
    Copper conductor, round solid (RE)
  • 2
    Core insulation (PE), cores star quaded and quads stranded in layers
  • 3
    Taping (plastic foil)
  • 4
    Screen (copper foil with drain wire )
  • 5
    Sheath (PE black, UV-resistant)

Technical Data

Standard: adapted to Telekom Austria-Standard X 5019
Test Voltage:
  • 500 Veff (core/core) / 50 Hz
  • 2000 Veff (core/screen) / 50 Hz
Rated Voltage: max. 200 Veff
Bending radius (min.): 10 x Ø of cable
Fire properties: CPR classification: Fca
Core identification: Colour code with trace quad in each layer (TA standard)
Temperature range:
  • Laying temperature: min. -20°C
  • Fixed installation: -20°C up to 70°C
  • Flexible use: -20°C up to 50°C

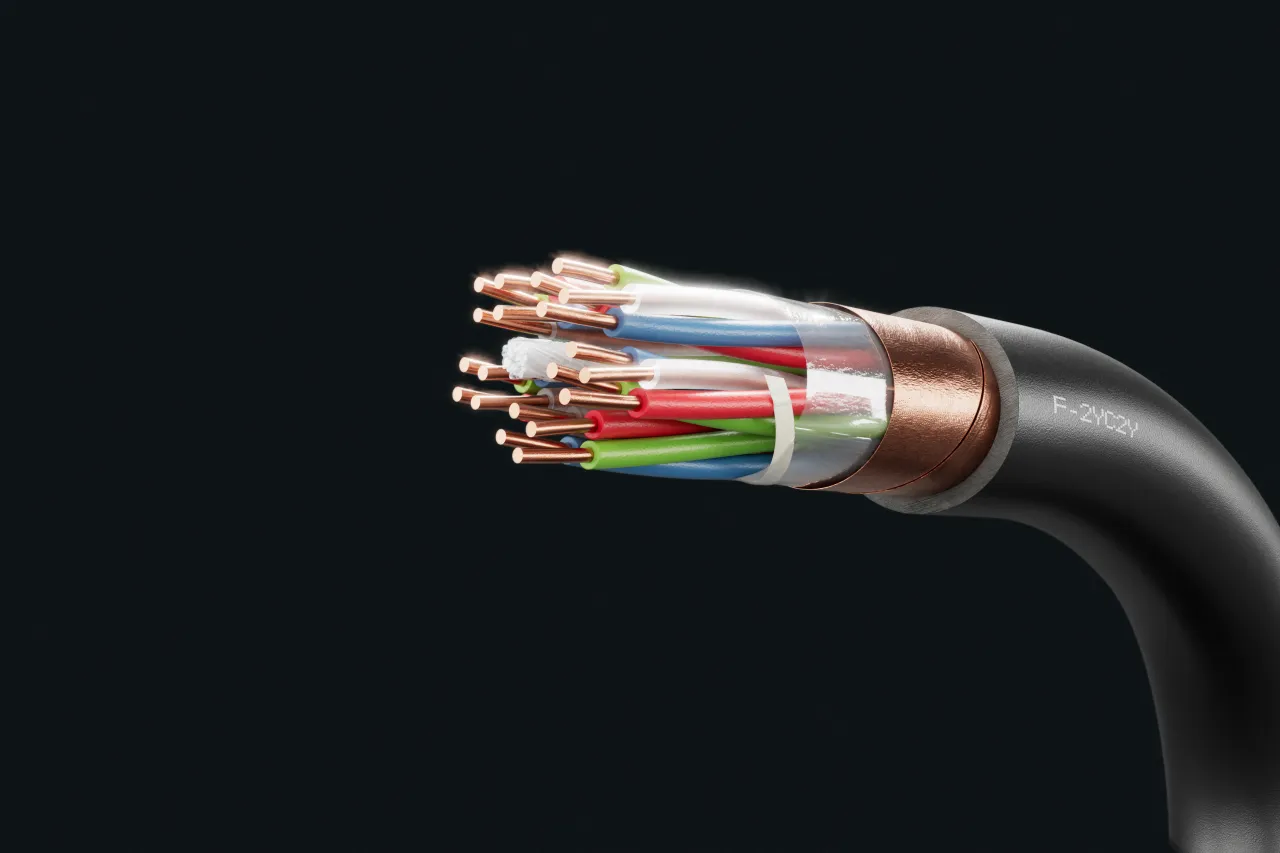

Cable image - F-2YC2Y
+
-

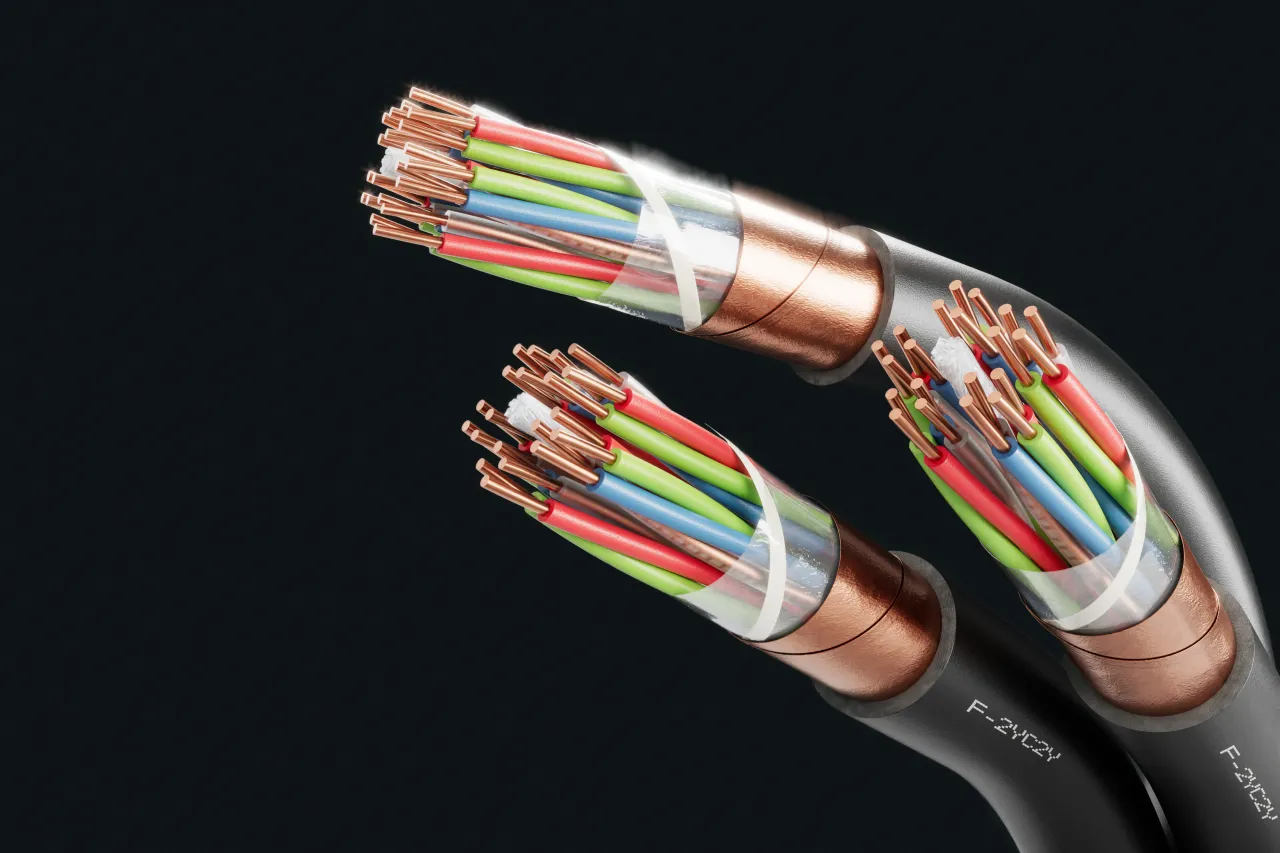

Cable image - F-2YC2Y
+
-
Cable image - F-2YC2Y
+
-

Contact us

Are you interested in this product?

Ing. Štěpán Laštůvka

Product supervisor

+420 732 912 682
[email protected]

Options

Add to inquiry
Number of pairs x nominal diameter
Standard lengths/packing (m)
Outer diameter appr. (mm)
Total weight appr. (kg/km)
2
500 T, 1000 T
7.0
55
10
500 T, 1000 T
13.0
150
20
500 T, 1000 T
15.0
245
30
500 T, 1000 T
16.5
325
40
500 T, 1000 T
17.7
405
50
500 T, 1000 T
20.0
485
60
500 T, 1000 T
21.0
560
80
500 T, 1000 T
23.2
730
100
500 T, 1000 T
26.0
880
2
500 T, 1000 T
8.5
75
6
500 T, 1000 T
11.5
150
10
500 T, 1000 T
13.4
225
20
500 T, 1000 T
17.0
375
30
500 T, 1000 T
18.5
515
40
500 T, 1000 T
21.4
635
50
500 T, 1000 T
24.5
755
60
500 T, 1000 T
25.6
885
80
500 T, 1000 T
29.4
1150
100
500 T, 1000 T
34.0
1410
6 x 2 x 0.6
500 T, 1000 T
10.2
115

Technical changes reserved.

All figures are therefore without guarantee.
