F-2YA2Y

Download PDF

Add to inquiry

Download PDF

To inquiry

Telecommunication underground cable, screened

Underground cable for use in telecommunications installations and related installations. Suitable for installation under ground, in water, cable ducts etc.

Design

This product consists of:

  • 1
    Copper conductor, round solid (RE)
  • 2
    Core insulation (PE), cores star quaded and quads stranded in layers
  • 3
    Inner covering (plastic tape)
  • 4
    Screen (plastic laminated aluminium tape with drain wire)
  • 5
    Sheath (PE black, UV-resistant)

Technical Data

Standard:
  • adapted to Telekom Austria-Standard X 5019
  • EN 50556
Test Voltage:
  • 500 V (core/core) / 50 Hz
  • 2 kV (core/screen) / 50 Hz
Rated Voltage: max. 200 Veff
Bending radius (min.): 10 x Ø of cable
Fire properties: CPR classification: Fca
Core identification: Colour code with trace quad in each layer (TA standard)
Temperature range:
  • Laying temperature: min. -20°C
  • Conductor temperature: max. 80°C

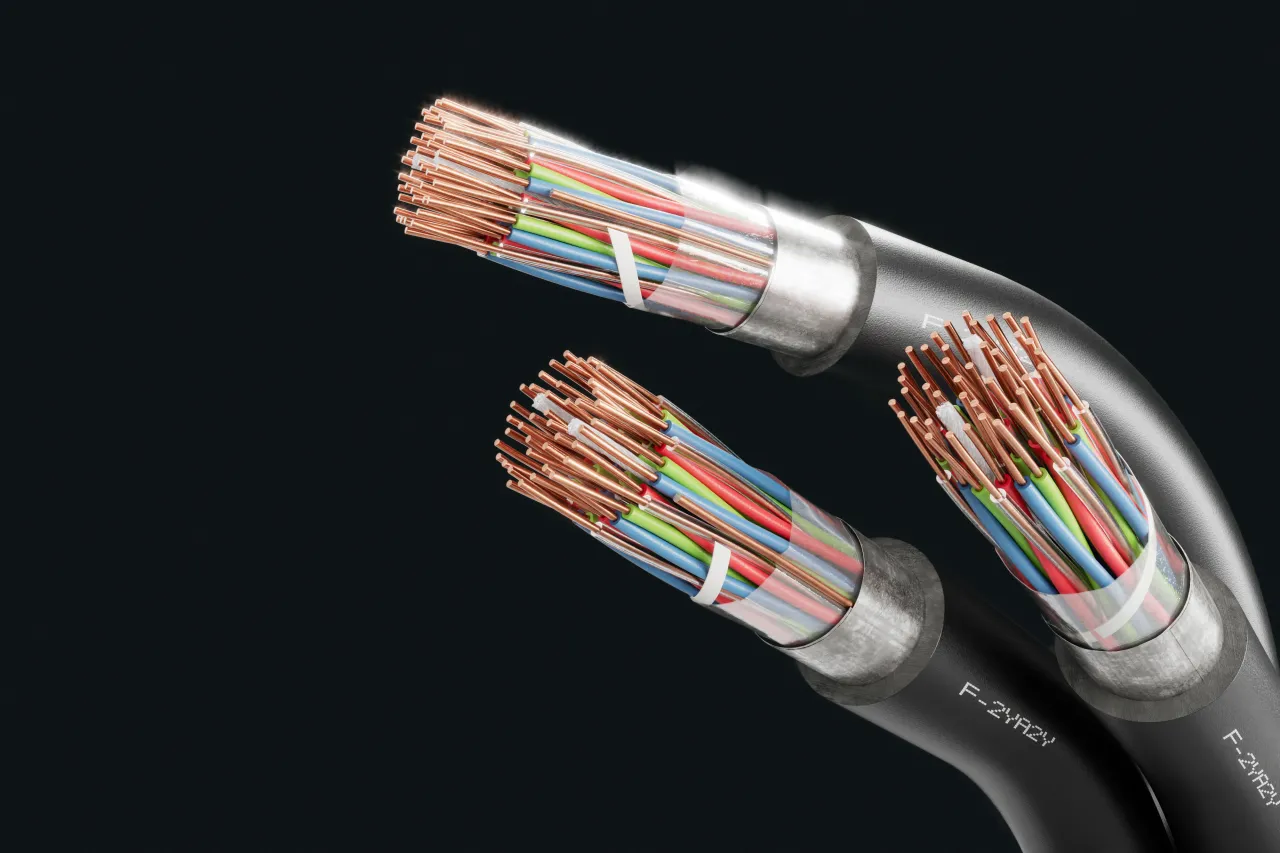

Cable image - F-2YA2Y
+
-

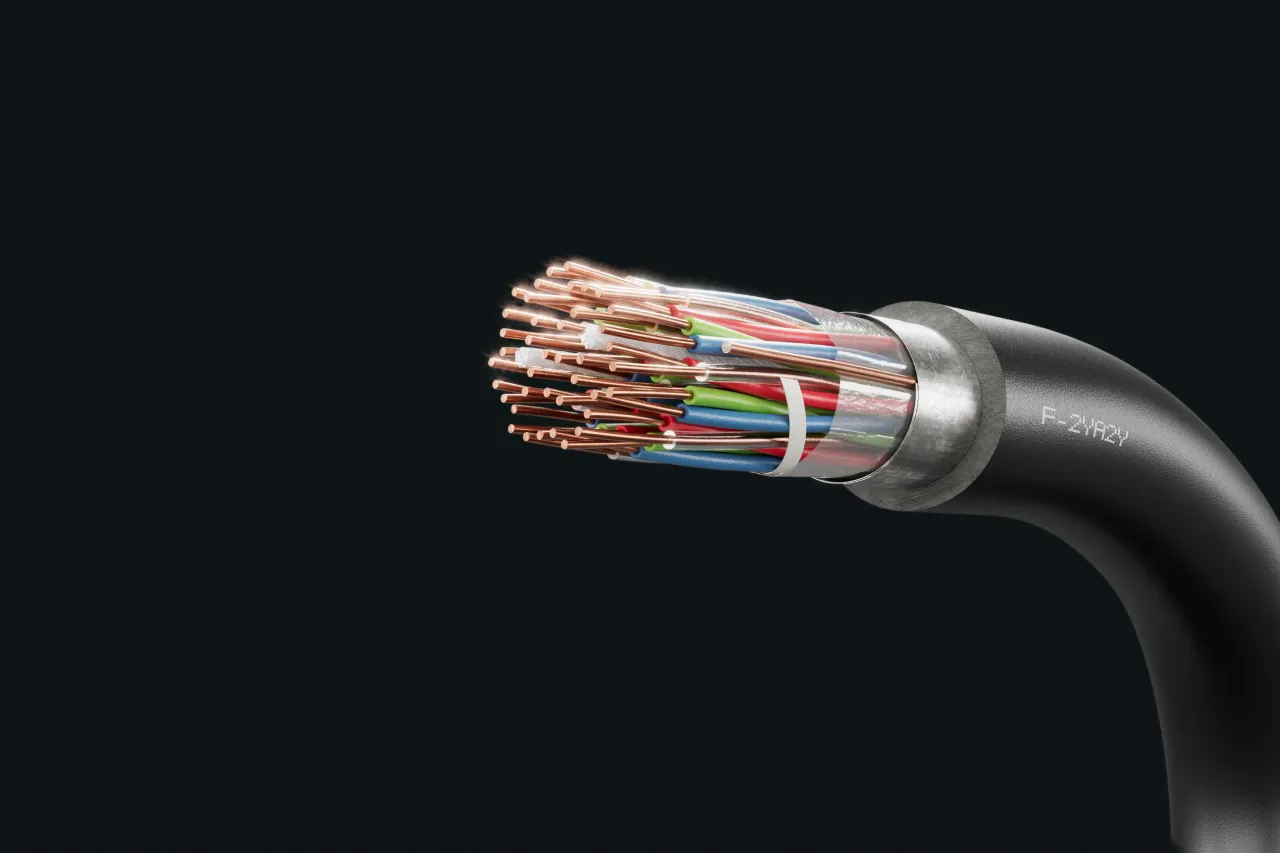

Cable image - F-2YA2Y
+
-

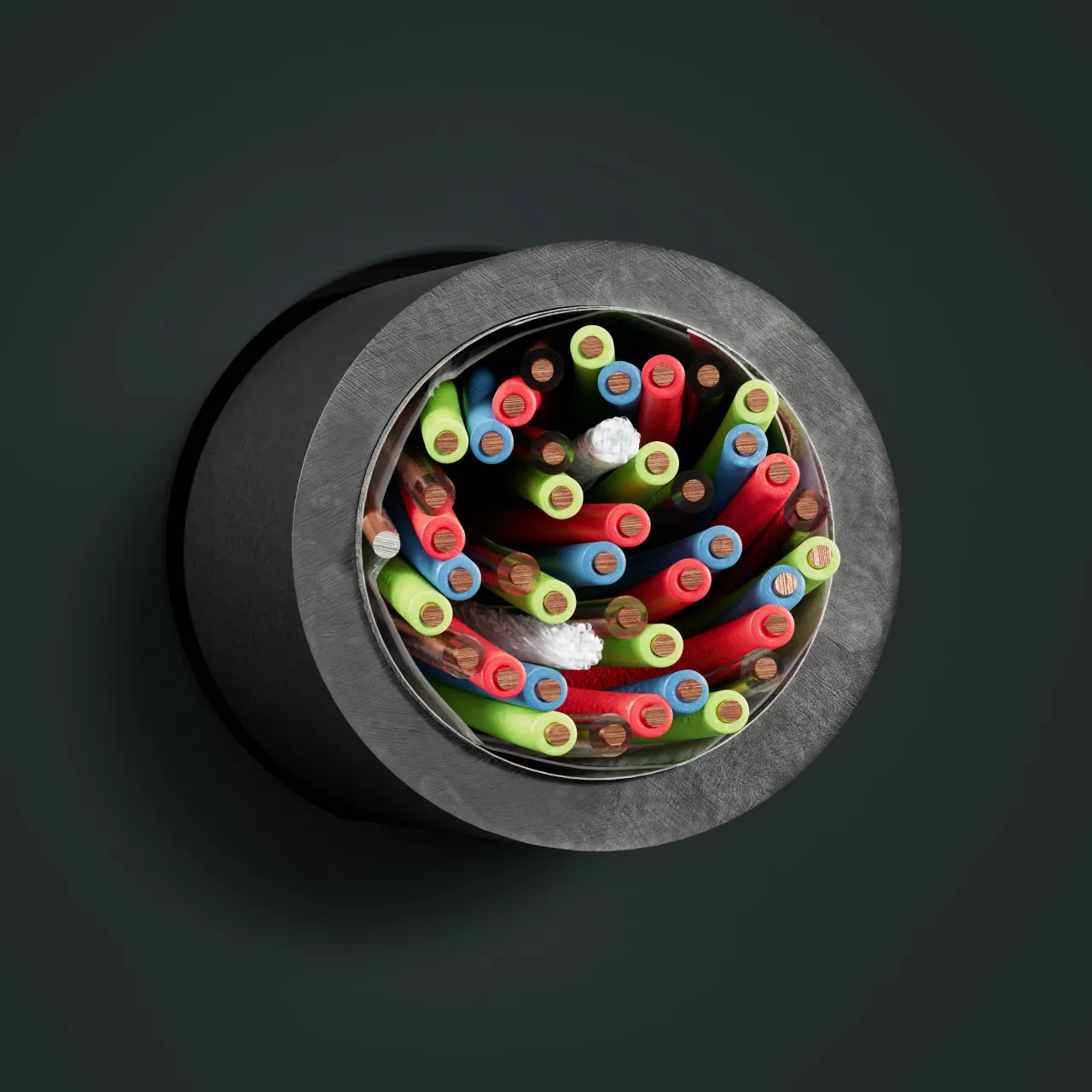

Cable image - F-2YA2Y
+
-

Contact us

Are you interested in this product?

Ing. Štěpán Laštůvka

Product supervisor

+420 732 912 682
[email protected]

Options

Add to inquiry
Number of pairs x nominal diameter
Standard lengths/packing (m)
Outer diameter appr. (mm)
Total weight appr. (kg/km)
2 x 2 x 0.6
500 T, 1000 T
7.0
47
6 x 2 x 0.6
500 T, 1000 T
9.8
87
10 x 2 x 0.6
500 T, 1000 T
11.2
121
20 x 2 x 0.6
500 T, 1000 T
14.1
201
30 x 2 x 0.6
500 T, 1000 T
16.0
272
40 x 2 x 0.6
500 T, 1000 T
17.8
344
50 x 2 x 0.6
500 T, 1000 T
19.8
426
60 x 2 x 0.6
500 T, 1000 T
21.2
486
100 x 2 x 0.6
500 T, 1000 T
25.5
792
2 x 2 x 0.8
500 T, 1000 T
7.9
60
4 x 2 x 0.8
500 T, 1000 T
11.5
103
6 x 2 x 0.8
500 T, 1000 T
11.6
127
10 x 2 x 0.8
500 T, 1000 T
13.9
188
20 x 2 x 0.8
500 T, 1000 T
17.9
331
30 x 2 x 0.8
500 T, 1000 T
20.3
458
40 x 2 x 0.8
500 T, 1000 T
22.8
581
50 x 2 x 0.8
500 T, 1000 T
24.9
707
60 x 2 x 0.8
500 T, 1000 T
27.3
846
100 x 2 x 0.8
500 T, 1000 T
33.7
1336

Technical changes reserved.

All figures are therefore without guarantee.
