Copper earthing cable
Conductors
Earthing ropes ESY are used as safety relevant connection in earthing and short circuiting equipment. The field of application ranges from railway systems, e.g. construction of overhead lines to earthing in high voltage power installations of electric supply companies. Special stranded conductor as well as insulation compound provide an extended temperature range for application.
Design

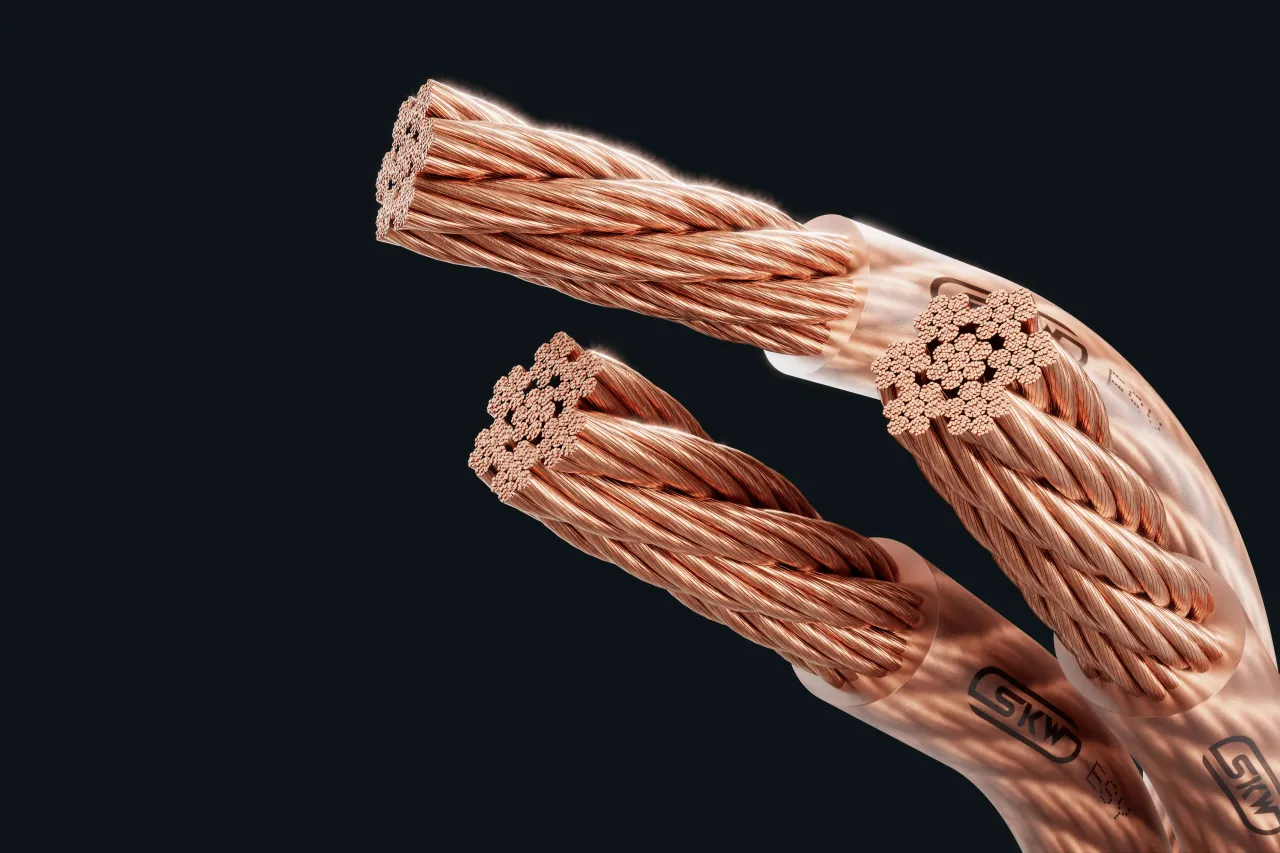

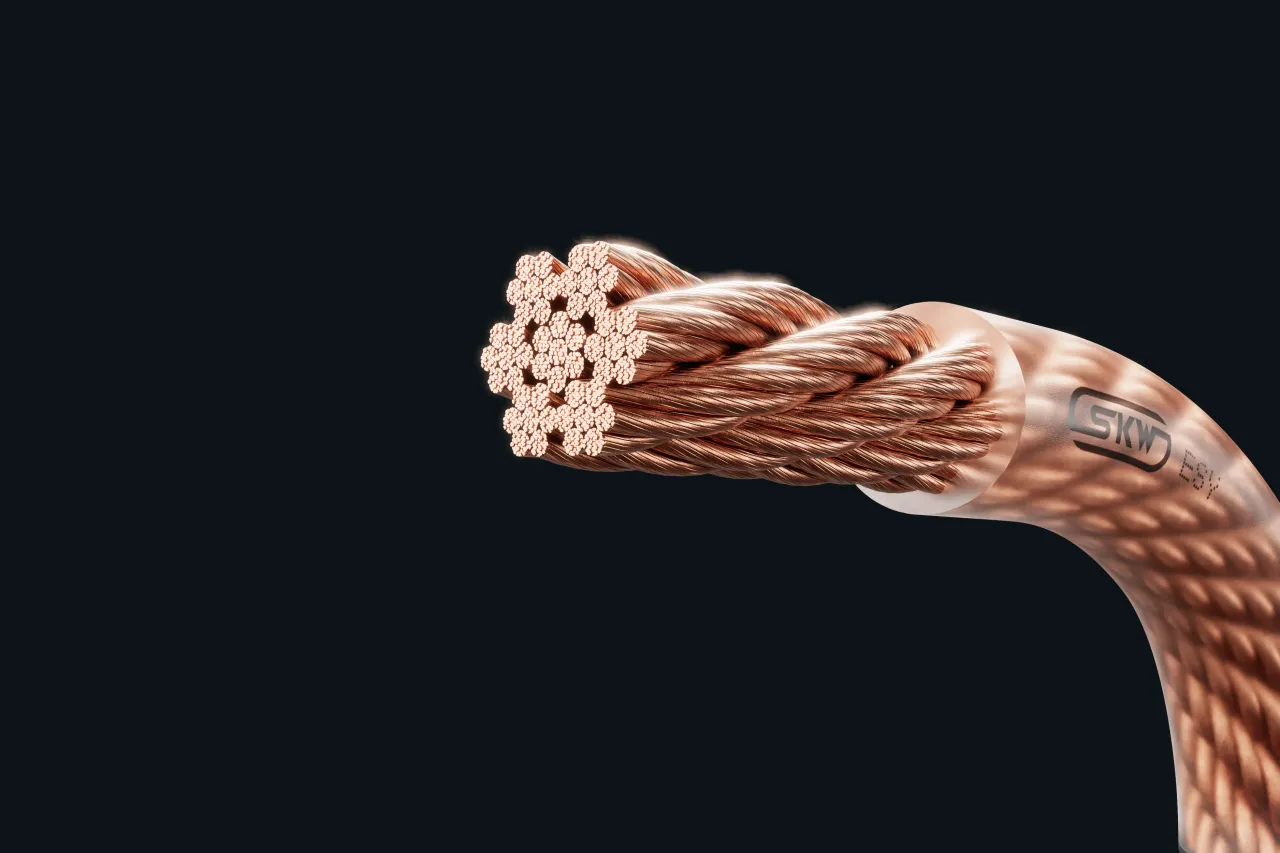

This product consists of:
- 1Bare copper conductors, super fine wire according to DIN VDE 0283 Part 3 / EN 61138, maximum single wire diameter 0.21 mm
- 2Outer sheath of special cold resistant compound based on polyvinyl chloride (PVC), colour: transparent
Technical Data
Standard:
- EN 61138
- EN 61230
Test Voltage: 2 kV / 50 Hz
Bending radius (min.): 12 x Ø of cable
Fire properties: EN 60332-1-2: self-extinguishing and flame retardant
Temperature range: Operating temperature: -25°C up to 70°C
