E-AYY-J or -O

Download PDF

Add to inquiry

Download PDF

To inquiry

PVC/PVC aluminium energy cables

Aluminium 0.6/1 kV

Power distribution cable for power stations, industrial facilities and switching stations as well as for local power networks. For fixed installation indoors, in cable ducts, outdoors and in water, according to the applicable erection standards, if no risk of any mechanical damage is to be expected.

Design

This product consists of:

  • 1
    Aluminium conductor, round solid (RE), sector-shaped solid (SE), round stranded (RM), resp. sector-shaped stranded (SM)
  • 2
    Core insulation (PVC)
  • 3
    Inner covering (EPDM or plastic tape)
  • 4
    Sheath (PVC black, UV-resistant)

Technical Data

Standard: ÖVE/ONORM E 8200-603 (HD 603)
Certificate:
  • EZÚ Czech Republic
  • ÖVE Austria
Test Voltage: core/core 4 kV / 50 Hz
Rated Voltage: 0.6/1 kV
Bending radius (min.):
  • 12 x Ø of cable (multicore)
  • 15 x Ø of cable (singlecore);
Fire properties:
  • EN 60332-1-2: self-extinguishing
  • CPR: Eca
Core identification: HD 308 S2
Temperature range:
  • Laying temperature: min. -5°C
  • Operating temperature: -50°C up to 70°C
  • Conductor temperature: max. 70°C
  • Short circuit temperature: max. 140°C

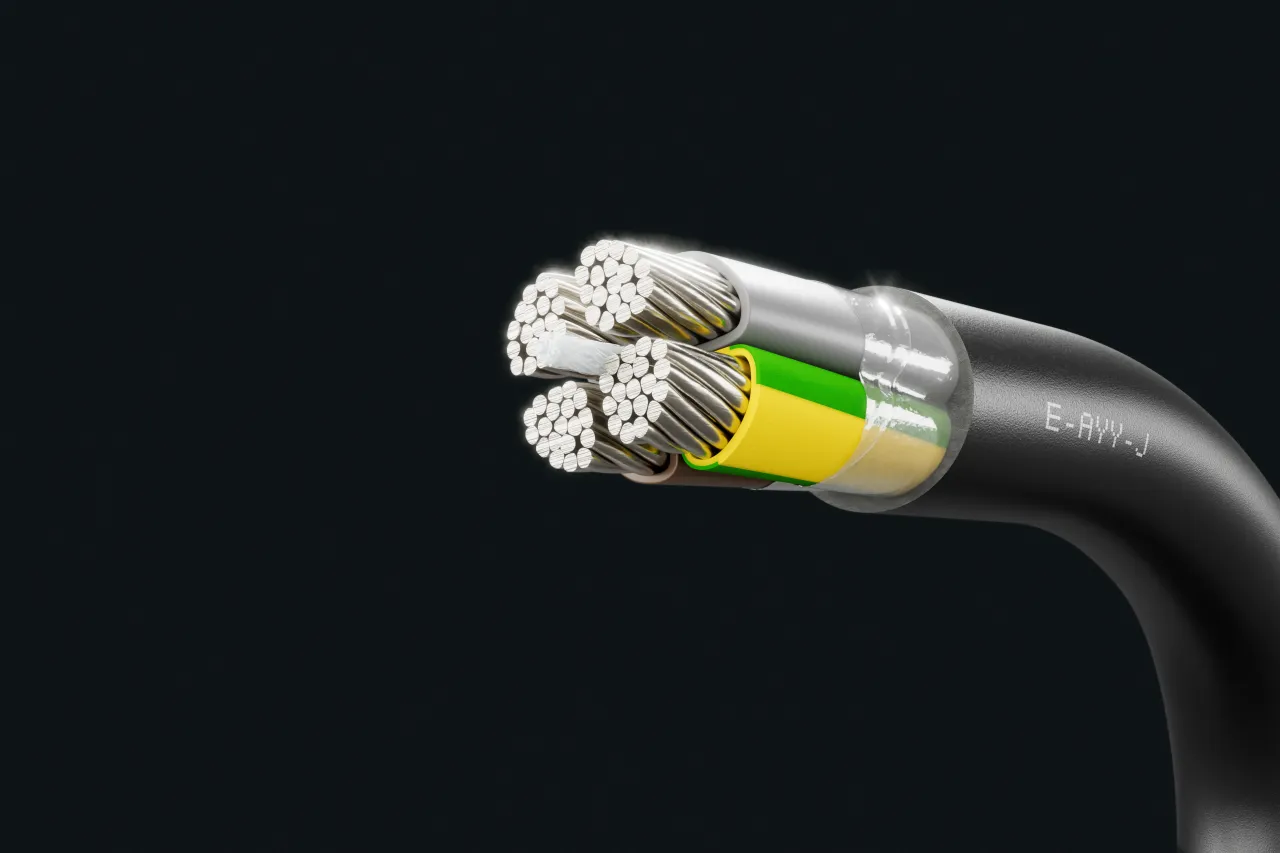

Cable image - E-AYY-J or -O
+
-

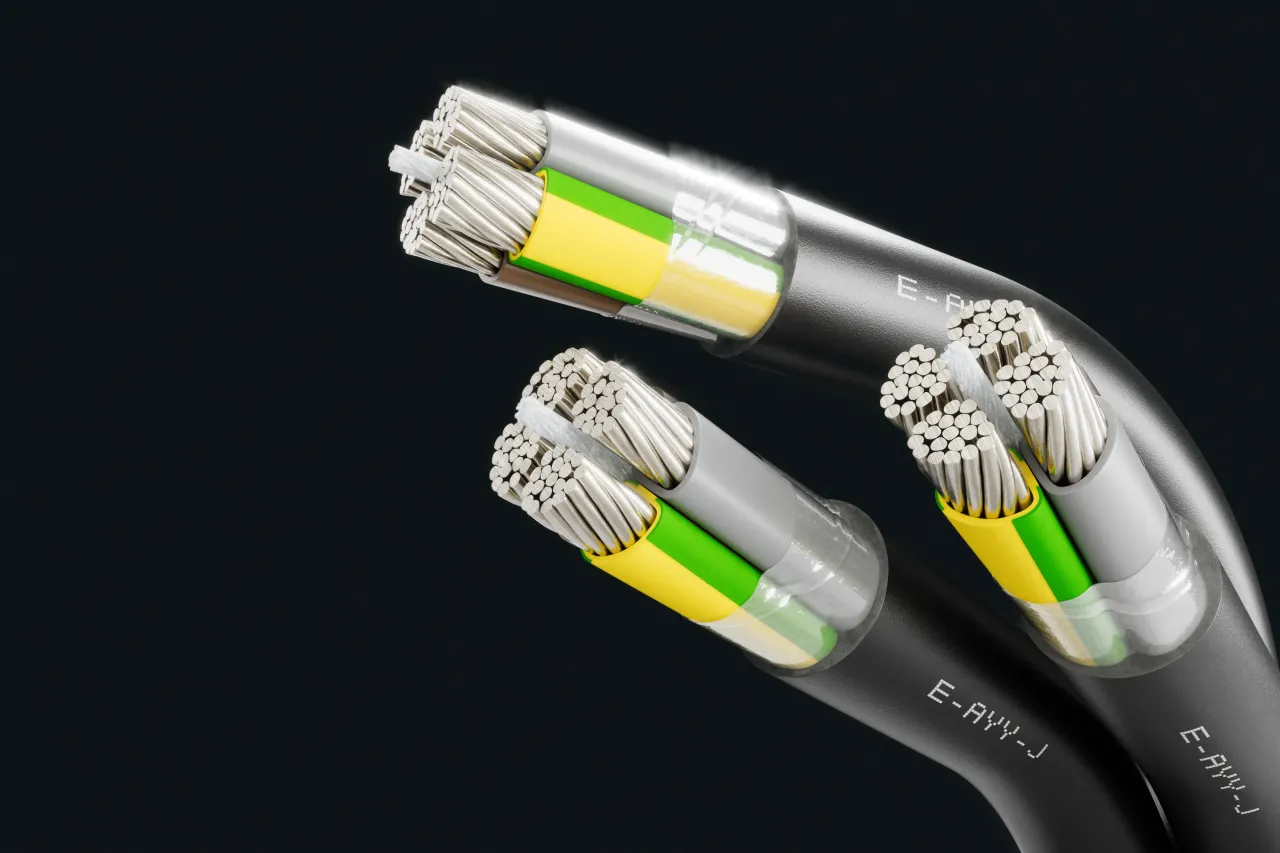

Cable image - E-AYY-J or -O
+
-
Cable image - E-AYY-J or -O
+
-

Contact us

Are you interested in this product?

Dogan Özcan

Product supervisor

+43 (0) 1 70170-154
[email protected]

Options

Add to inquiry
Number of cores x nominal cross-section (mm²)
Max. conductor resistance (Ω/km)
Current rating in the earth (A)
Current rating in the air (A)
Outer diameter appr. (mm)
Total weight appr. (kg/km)
Standard lengths/packing (m)
1 x 25 RM
1.2
106
87
13.2
196
500 D, 1000 D
1 x 35 RM
0.868
127
107
13.7
240
500 D, 1000 D
1 x 50 RM
0.641
151
131
15.1
302
500 D, 1000 D
1 x 70 RM
0.443
185
166
15.8
375
500 D, 1000 D
1 x 95 RM
0.32
222
205
17.6
485
500 D, 1000 D
1 x 120 RM
0.253
253
239
19.1
580
500 D, 1000 D
1 x 150 RM
0.206
284
273
22.6
716
500 D, 1000 D
1 x 185 RM
0.164
322
317
25.1
895
500 D, 1000 D
1 x 240 RM
0.125
375
378
26.5
1060
500 D, 1000 D
1 x 300 RM
0.1
423
434
30.7
1350
500 D, 1000 D
1 x 400 RM
0.078
756
653
33.3
1651
500 D, 1000 D
1 x 500 RM
0.061
873
772
36.9
2071
500 D, 1000 D
1 x 630 RM
0.047
1011
915
42.4
2593
500 D, 1000 D
3 x 25 RM
1.2
102
81
22.5
712
500 D, 1000 D
3 x 35 RM
0.868
122
99
25.0
895
500 D, 1000 D
3 x 50 SM
0.641
144
119
25.3
809
500 D, 1000 D
3 x 70 SM
0.443
179
152
28.1
1041
500 D, 1000 D
3 x 95 SM
0.32
215
186
31.5
1365
500 D, 1000 D
3 x 120 SM
0.253
245
216
36.0
1830
500 D, 1000 D
3 x 150 SM
0.206
275
246
40.3
2040
500 D, 1000 D
3 x 150 + 70 SM/SM
0.206
275
246
43.0
2340
500 D, 1000 D
3 x 185 SM
0.164
313
285
44.0
2760
500 D, 1000 D
3 x 185 + 95 SM/SM
0.164
313
285
50.0
3040
500 D, 1000 D
3 x 240 SM
0.125
364
338
52.0
3280
500 D, 1000 D
3 x 240 + 120 SM/SM
0.125
364
338
53.0
3760
500 D, 1000 D
4 x 25 RM
1.2
102
81
24.0
770
500 D, 1000 D
4 x 35 SM
0.868
122
99
26.5
805
500 D, 1000 D
4 x 50 SE
0.641
144
119
26.9
970
500 D, 1000 D
4 x 50 SM
0.641
144
119
29.4
980
500 D, 1000 D
4 x 50 RM
0.641
144
119
29.5
985
500 D, 1000 D
4 x 70 SE
0.443
179
152
30.9
1310
500 D, 1000 D
4 x 70 SM
0.443
179
152
32.6
1290
500 D, 1000 D
4 x 95 SE
0.32
215
216
37.8
2000
500 D, 1000 D
4 x 95 SM
0.32
215
186
36.5
1810
500 D, 1000 D
4 x 120 SE
0.253
245
216
37.8
2000
500 D, 1000 D
4 x 120 SM
0.253
245
216
41.8
2230
500 D, 1000 D
4 x 150 SE
0.206
275
246
40.8
2490
500 D, 1000 D
4 x 150 SM
0.206
275
246
45.0
2610
500 D, 1000 D
4 x 185 SM
0.164
313
285
48.0
3250
500 D, 1000 D
4 x 240 SM
0.125
364
338
53.4
4020
500 D, 1000 D
4 x 300 SM
0.1
535
510
61.7
5237
500 D, 1000 D
5 x 16 RM
1.91
92
72
22.6
720
500 D, 1000 D
5 x 25 RM
1.2
102
82
27.8
1110
500 D, 1000 D
5 x 35 RM
0.868
123
100
30.1
1281
500 D, 1000 D
5 x 50 RM
0.869
144
119
32.2
1280
500 D, 1000 D
5 x 50 SM
0.869
144
119
32.2
1280
500 D, 1000 D
5 x 70 SM
0.443
179
152
35.9
1680
500 D, 1000 D
5 x 95 RM
0.32
215
186
48.6
3006
500 D
5 x 95 SM
0.32
215
186
40.8
2210
500 D, 1000 D
5 x 120 SM
0.253
245
216
44.1
2640
500 D, 1000 D
5 x 150 SM
0.206
275
246
49.9
3310
500 D
5 x 185 SM
0.164
313
285
54.4
4040
500 D
5 x 240 SM
0.125
364
338
61.3
5290
500 D

Technical changes reserved.

All figures are therefore without guarantee.
