E-AY2Y-J or E-AY2Y-O

Download PDF

Add to inquiry

Download PDF

To inquiry

PVC/PE aluminium energy cable

Power Cables and Overhead Lines 0.6/1 kV

Power distribution cables in power stations, industrial installations and switch gears, as well as in local mains. For fixed installation under ground, in interior premises, cable ducts, in the open air and in water – as permitted by the local building regulations – under severe mechanical stressing during installation and operation.

Design

This product consists of:

  • 1
    Aluminium conductor, round solid (RE), sector-shaped solid (SE), round stranded (RM), resp. sector-shaped stranded (SM)
  • 2
    Core insulation (PVC)
  • 3
    Inner covering (EPDM or plastic tape)
  • 4
    Sheath (HDPE black, UV-resistant)

Technical Data

Standard: ÖVE/ONORM E 8200-603 (HD 603)
Certificate:
  • EZÚ Czech Republic
  • ÖVE Austria
Test Voltage: core/core 4 kV / 50 Hz
Rated Voltage: 0.6/1 kV
Bending radius (min.):
  • 12 x Ø of cable (multicore)
  • 15 x Ø of cable (singlecore);
Fire properties: CPR-Klassifizierung: Fca
Core identification: HD 308 S2
Temperature range:
  • Laying temperature: min. -5°C
  • Operating temperature: -50°C up to 70°C
  • Conductor temperature: max. 70°C
  • Short circuit temperature: max. 140°C

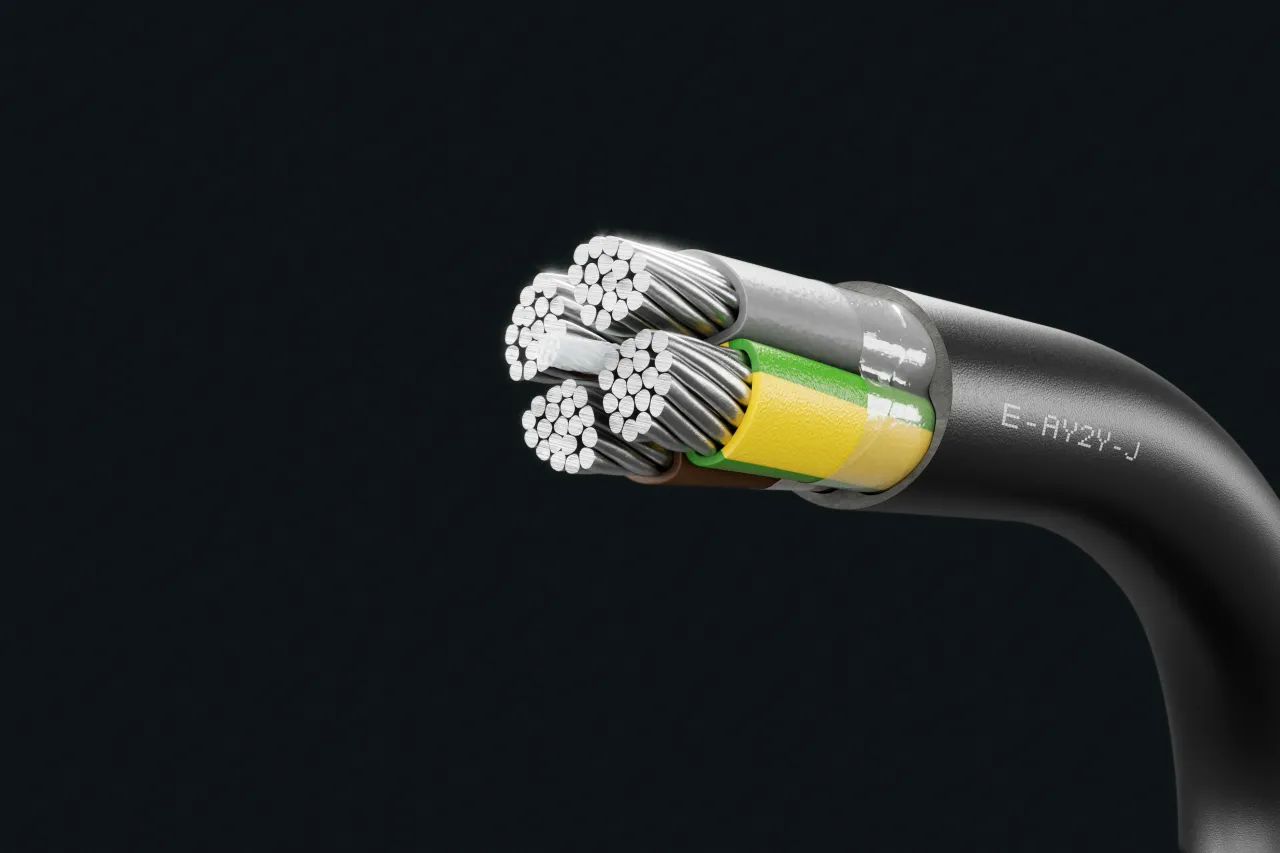

Cable image - E-AY2Y-J or E-AY2Y-O
+
-

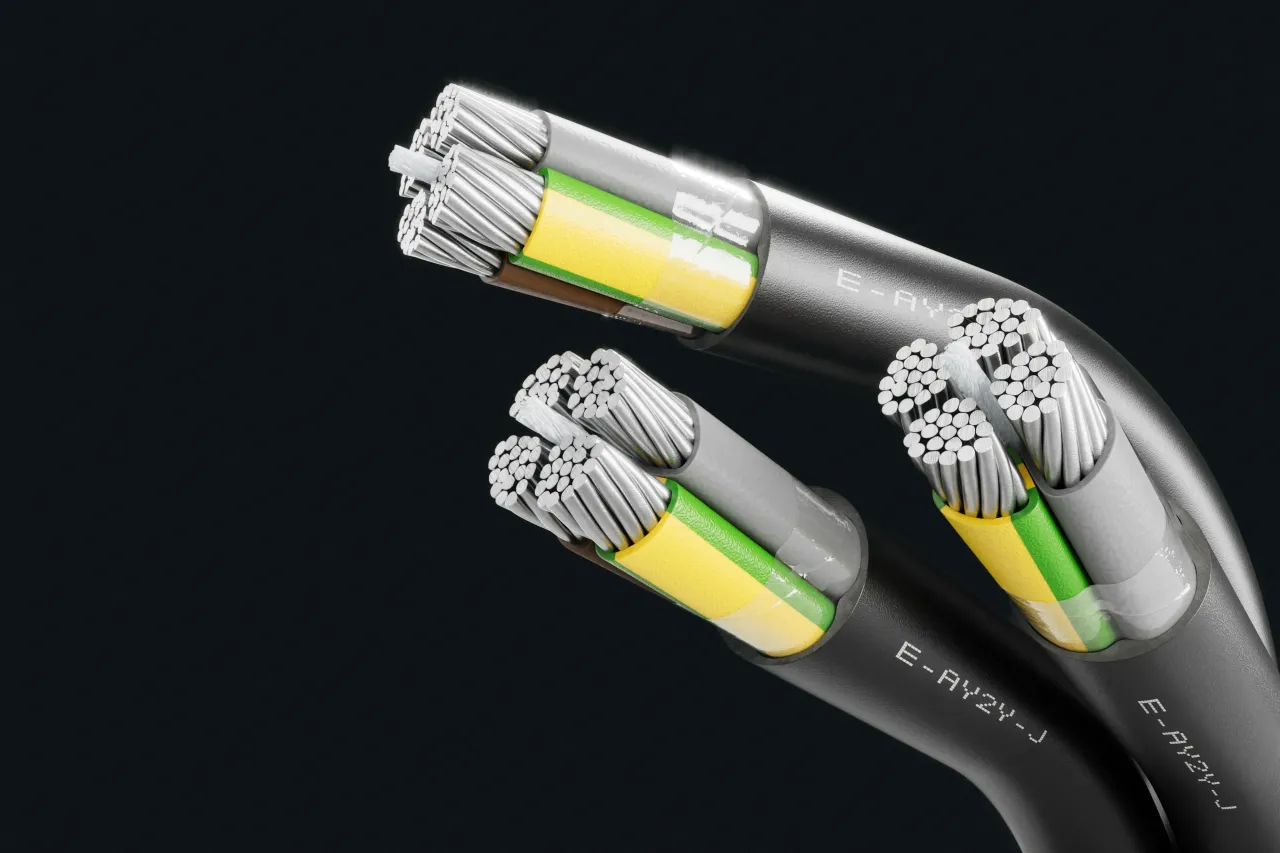

Cable image - E-AY2Y-J or E-AY2Y-O
+
-
Cable image - E-AY2Y-J or E-AY2Y-O
+
-

Contact us

Are you interested in this product?

Dogan Özcan, MSc

Product supervisor

+43 (0) 1 70170-154
[email protected]

Options

Add to inquiry
Number of cores x nominal cross-section (mm²)
Max. conductor resistance (Ω/km)
Current rating in the earth (A)
Current rating in the air (A)
Outer diameter appr. (mm)
Total weight appr. (kg/km)
Standard lengths/packing (m)
1 x 50 RM
0.641
230
166
14.8
261
500 D, 1000 D
1 x 70 RM
0.834
293
210
16.9
386
500 D, 1000 D
1 x 120 RM
0.253
389
302
21.6
540
500 D, 1000 D
1 x 150 RM
0.206
436
345
21.7
635
500 D, 1000 D
1 x 240 RM
0.164
578
479
27.2
1058
1000D
1 x 300 RM
0.1
654
550
30.1
1395
1000D
1 x 400 RM
0.078
756
653
33.4
1542
500 D
1 x 630 RM
0.047
1011
915
42.4
2439
500 D
3 x 70 SM
0.443
179
152
28.1
950
500 D, 1000 D
3 x 95 + 50 SM/RM
0.32
215
186
36.4
1502
500 D, 1000 D
3 x 120 + 70 SM/RM
0.253
245
216
39.3
1826
500 D, 1000 D
3 x 240 SM
0.125
364
338
47.2
3004
500 D
3 x 240 + 120 SM/RM
0.125
365
338
55.1
3489
500 D
4 x 25 RE
1.2
102
81
24.2
698
500 D, 1000 D
4 x 25 RM
1.2
102
81
26.0
700
500 D, 1000 D
4 x 35 SM
0.868
122
99
24.3
720
500 D, 1000 D
4 x 50 SE
0.641
144
119
26.4
898
500 D, 1000 D
4 x 50 SM
0.641
144
119
28.1
947
500 D, 1000 D
4 x 70 SM
0.443
179
152
30.9
1232
500 D, 1000 D
4 x 95 SE
0.32
215
186
33.8
1571
500 D, 1000 D
4 x 95 SM
0.32
215
186
36.4
1677
500 D, 1000 D
4 x 120 SM
0.253
245
216
39.3
2017
500 D, 1000 D
4 x 150 SE
0.206
275
246
40.4
2316
500 D, 1000 D
4 x 150 SM
0.206
275
246
43.9
2460
500 D, 1000 D
4 x 185 SM
0.164
313
285
49.6
3100
500 D, 1000 D
4 x 240 SM
0.125
364
338
55.1
3952
500 D
4 x 300 SM
0.1
419
400
61.9
4928
500 D

Technical changes reserved.

All figures are therefore without guarantee.
