PE insulated bundled overhead line
Insulated overheadlines
Can be used for fixed installation as overhead power lines up to 1,000 V inclusive. Not suitable for direct burial.
Design

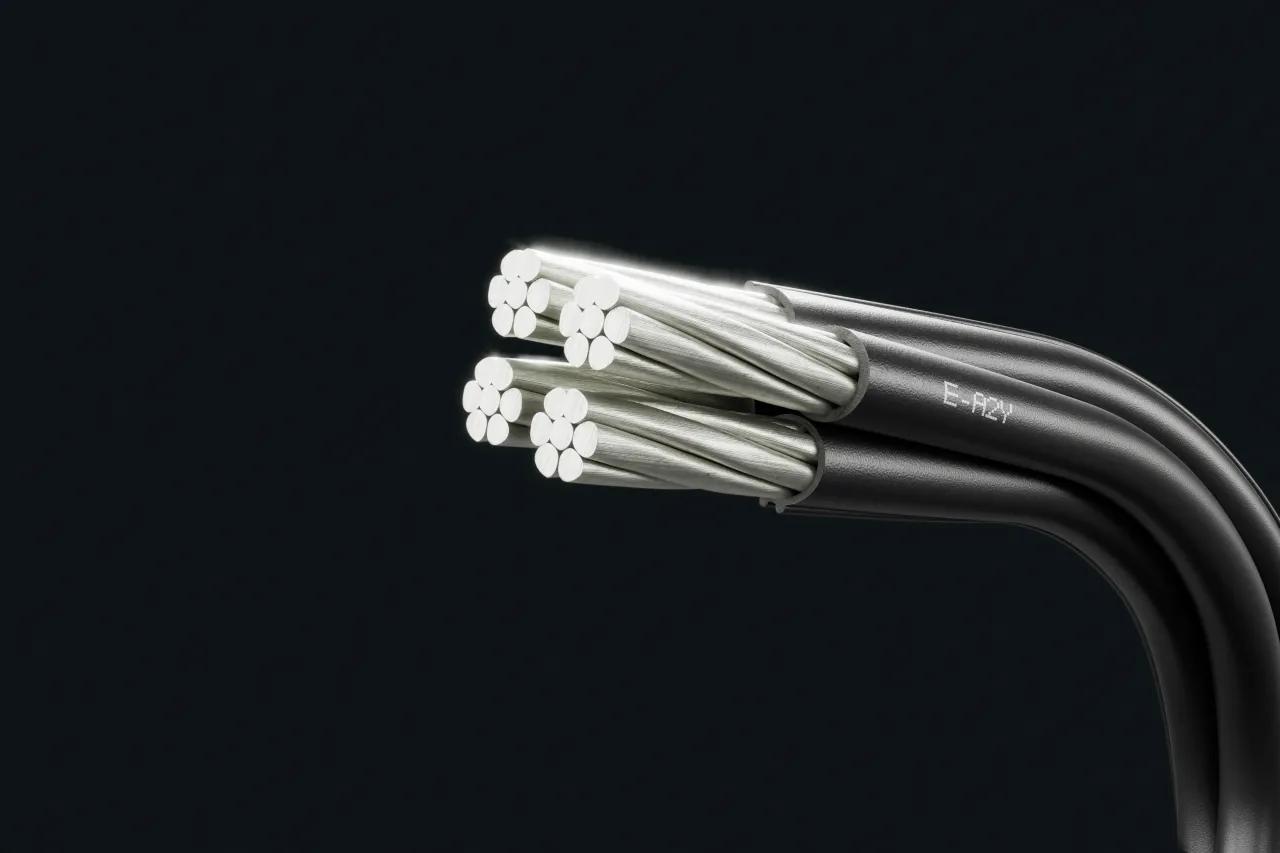

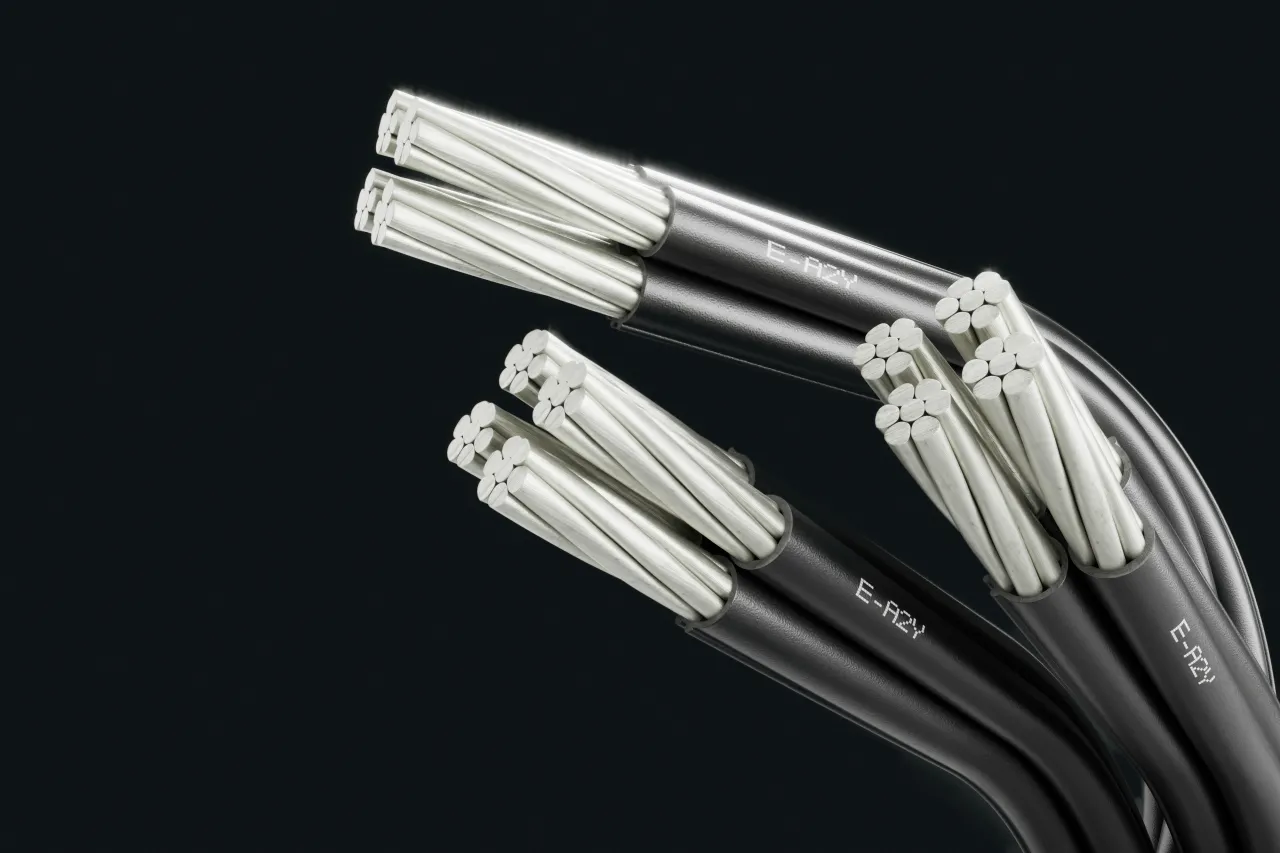

This product consists of:
- 1Aluminium conductor, round stranded (RM)
- 2Core insulation (PE black, UV-resistant), cores standed together
Technical Data
Standard: ÖVE/ÖNORM E 8200-626 (HD 626)
Test Voltage: 3,5 kV / 50 Hz
Rated Voltage: 0.6/1 kV
Bending radius (min.): 18 x Ø of cable

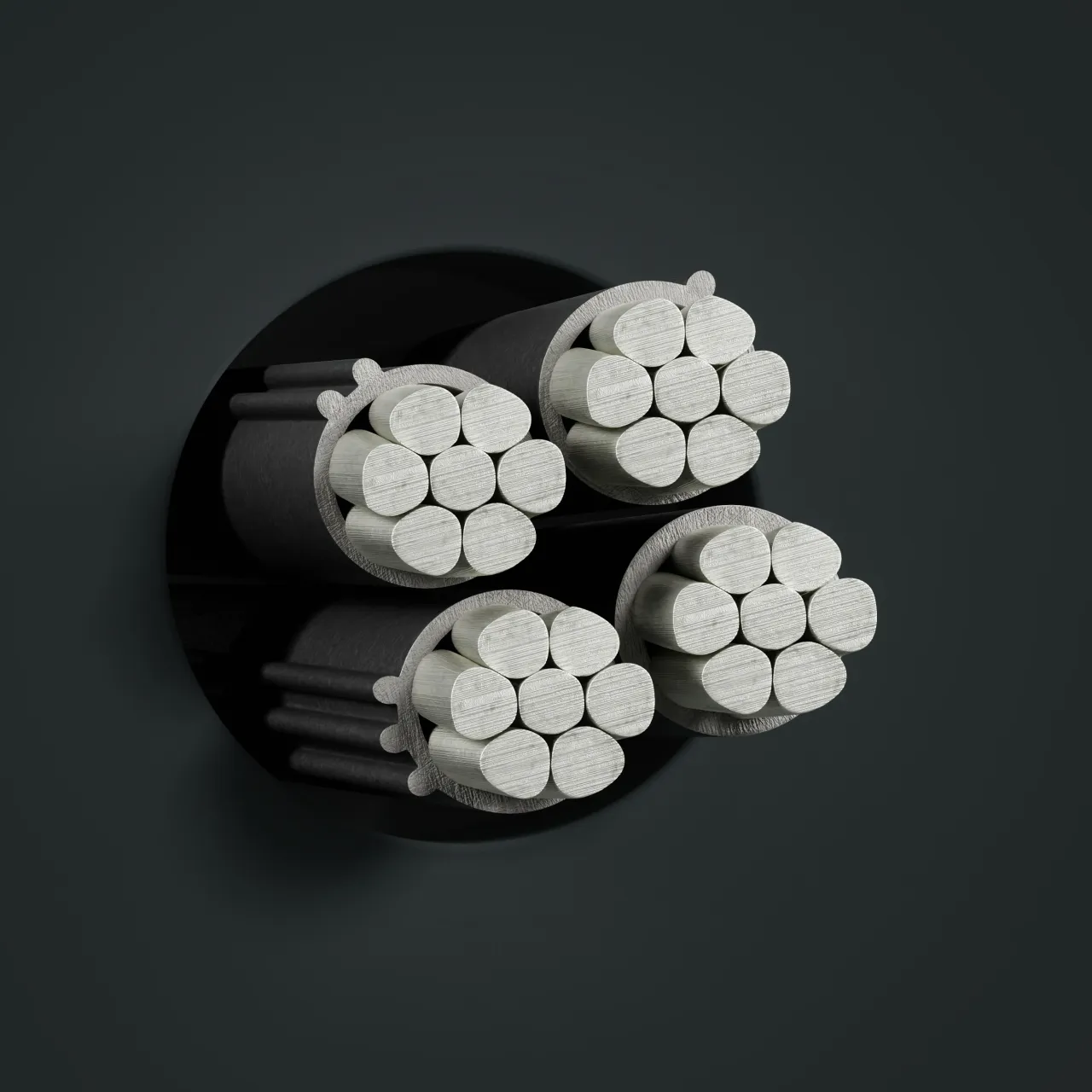

Core identification: 1, 2 resp. 3 raised longitudinal ribs on the surface of the cores, the 4. core is showing fine longitudinal grooves (75 % of surface) and is printed with the type designation
Temperature range:
- Laying temperature: min. -5°C
- Operating temperature: -50°C up to 70°C
- Conductor temperature: max. 70°C
- Short circuit temperature: max. 160°C
