CYKY

Download PDF

Add to inquiry

Download PDF

To inquiry

PVC/PVC installation cables

PVC and Rubber Cables and Wires

The cables are designed for fixed distribution of electricity in the ground or in the open environment without any mechanical stress.

Design

This product consists of:

  • 1
    Copper conductor, round solid (RE)
  • 2
    Core insulation (PVC)
  • 3
    Inner covering (EPDM)
  • 4
    Sheath (PVC black, UV-resistant) with colored stripe according to dimension: CYKY-J 3x1,5 blue; CYKY-O 3x1,5 red; CYKYJ 3x2,5 green; CYKY-J 5x1,5 violet; CYKY-J 5x2,5 yellow

Technical Data

Standard: ČSN 34 7411
Certificate: EZÚ Czech Republic
Test Voltage: core/core 2,5 kV / 50 Hz
Rated Voltage: 450/750 V
Bending radius (min.):
  • 6 x Ø of cable up to 20 mm (included)
  • 12 x Ø of cable over 20 mm
Fire properties:
  • ČSN EN 60332-1-2: self-extinguishing
  • CPR classification: Eca
Core identification:
  • ČSN 33 0166 ed. 2
  • ČSN EN 50334
Temperature range:
  • Laying temperature: min. -5°C
  • Operating temperature: -40°C up to 70°C
  • Conductor temperature: max. 70°C
  • Short circuit temperature: max. 160°C

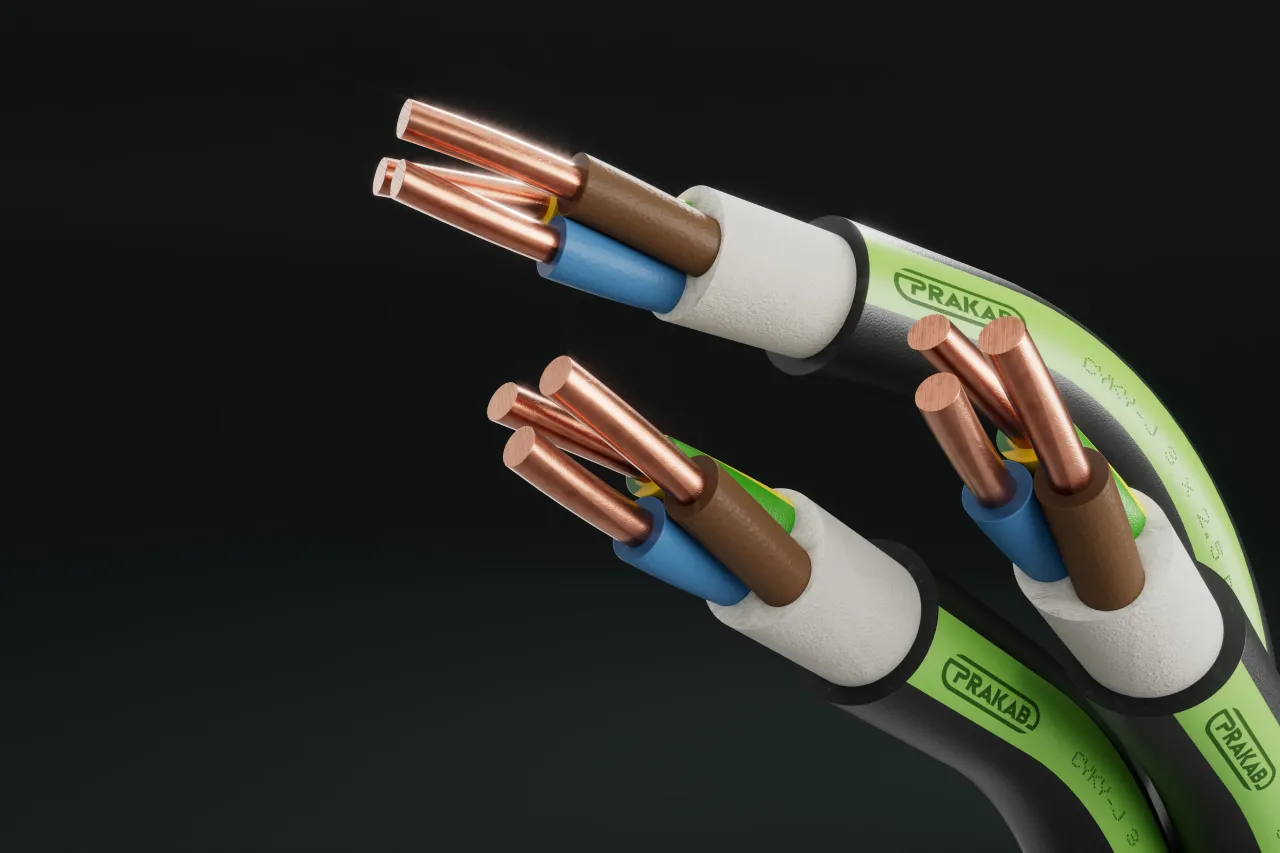

Cable image - CYKY
+
-

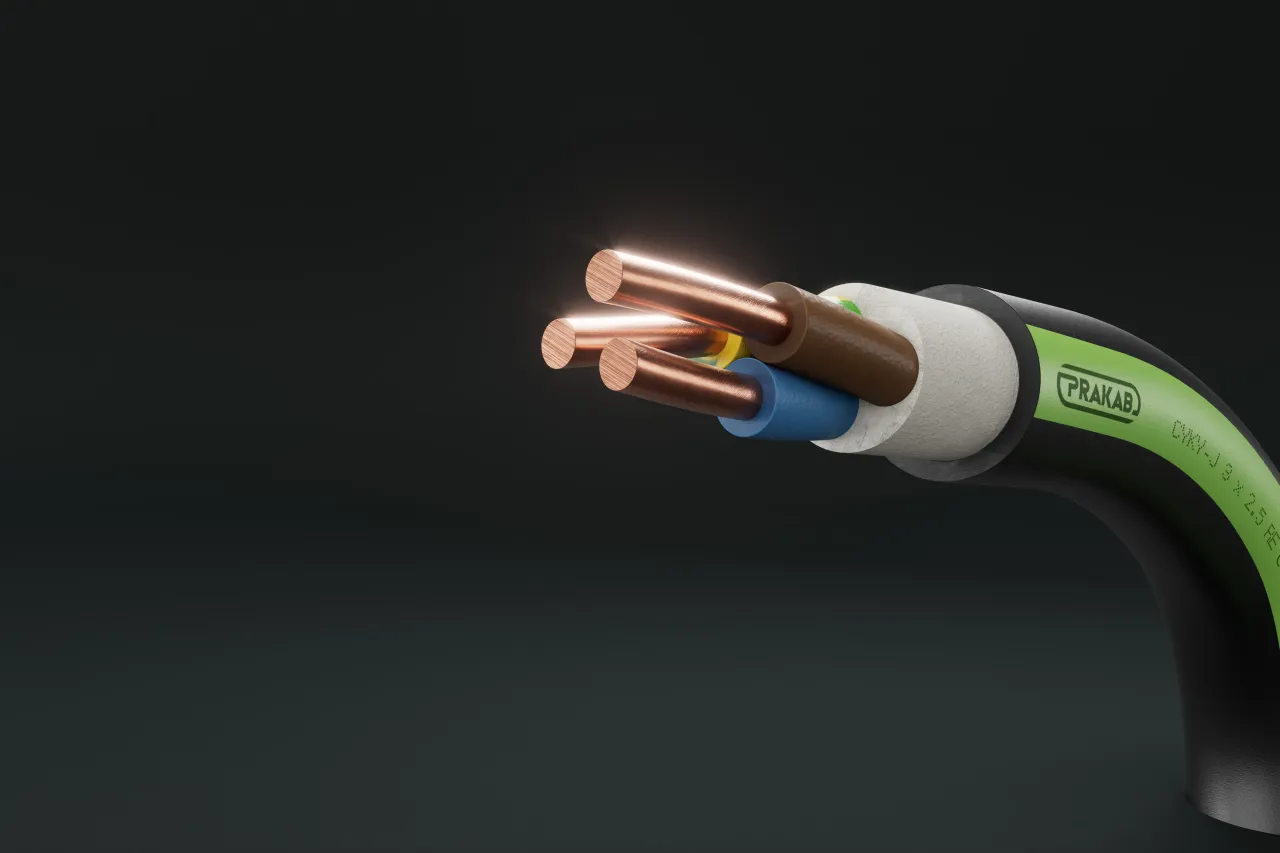

Cable image - CYKY
+
-
Cable image - CYKY
+
-

Contact us

Are you interested in this product?

Vojtěch Cuřín

Product supervisor

+420 731 226 023
[email protected]

Options

Add to inquiry
Number of cores x nominal cross-section (mm²)
Max. conductor resistance (Ω/km)
Current rating in the earth (A)
Current rating in the air (A)
Outer diameter appr. (mm)
Total weight appr. (kg/km)
2 x 1.5 RE
12.531
34
22
8.1
100
3 x 1.5 RE
12.531
28
19
8.6
120
4 x 1.5 RE
12.531
28
19
9.3
140
5 x 1.5 RE
12.531
28
19
10.1
165
7 x 1.5 RE
12.531
16
13
11.0
205
12 x 1.5 RE
12.531
13
10
14.6
390
19 x 1.5 RE
12.531
11
9
17.0
550
24 x 1.5 RE
12.531
9
8
20.1
710
37 x 1.5 RE
12.531
8
7
22.9
995
48 x 1.5 RE
12.531
7
6
26.6
1270
2 x 2.5 RE
7.52
45
30
8.9
130
3 x 2.5 RE
7.52
36
25
9.5
160
4 x 2.5 RE
7.52
36
25
10.3
200
5 x 2.5 RE
7.52
36
25
11.2
235
7 x 2.5 RE
7.52
22
15
12.2
300
12 x 2.5 RE
7.52
17
13
16.3
570
19 x 2.5 RE
7.52
14
10
19.3
810
24 x 2.5 RE
7.52
12
9
22.5
1065
37 x 2.5 RE
7.52
10
8
26.1
1470
48 x 2.5 RE
7.52
9
6
29.8
1905
2 x 4 RE
4.7
59
40
10.6
175
3 x 4 RE
4.7
48
34
11.2
220
4 x 4 RE
4.7
48
34
12.2
260
5 x 4 RE
4.7
48
34
13.8
315
7 x 4 RE
4.7
29
20
15.0
455
12 x 4 RE
4.7
22
16
20.0
770
2 x 6 RE
3.133
73
51
11.6
230
3 x 6 RE
3.133
61
43
12.3
290
4 x 6 RE
3.133
61
43
13.8
355
5 x 6 RE
3.133
61
43
15.1
420
2 x 10 RE
1.88
98
66
13.8
410
3 x 10 RE
1.88
81
60
14.7
520
4 x 10 RE
1.88
81
60
16.1
625
5 x 10 RE
1.88
81
60
18.0
770
2 x 16 RE
1.175
127
89
15.6
565
3 x 16 RE
1.175
105
80
16.7
735
4 x 16 RE
1.175
105
80
18.6
895
5 x 16 RE
1.175
105
80
20.4
1100

Technical changes reserved.

All figures are therefore without guarantee.
