Cu rope, RMn, soft, VDE

Download PDF

Add to inquiry

Download PDF

To inquiry

Cu rope, soft, non-compressed

Conductors

Conductors are designed for connection of points with equal electric potential or for high currents.

Design

This product consists of:

  • 1
    Copper wires, bare, soft
  • 2
    Stranded, round, non-compressed

Technical Data

Standard: according to DIN 48201-1 (design)
Bending radius (min.): 15 x Ø rope

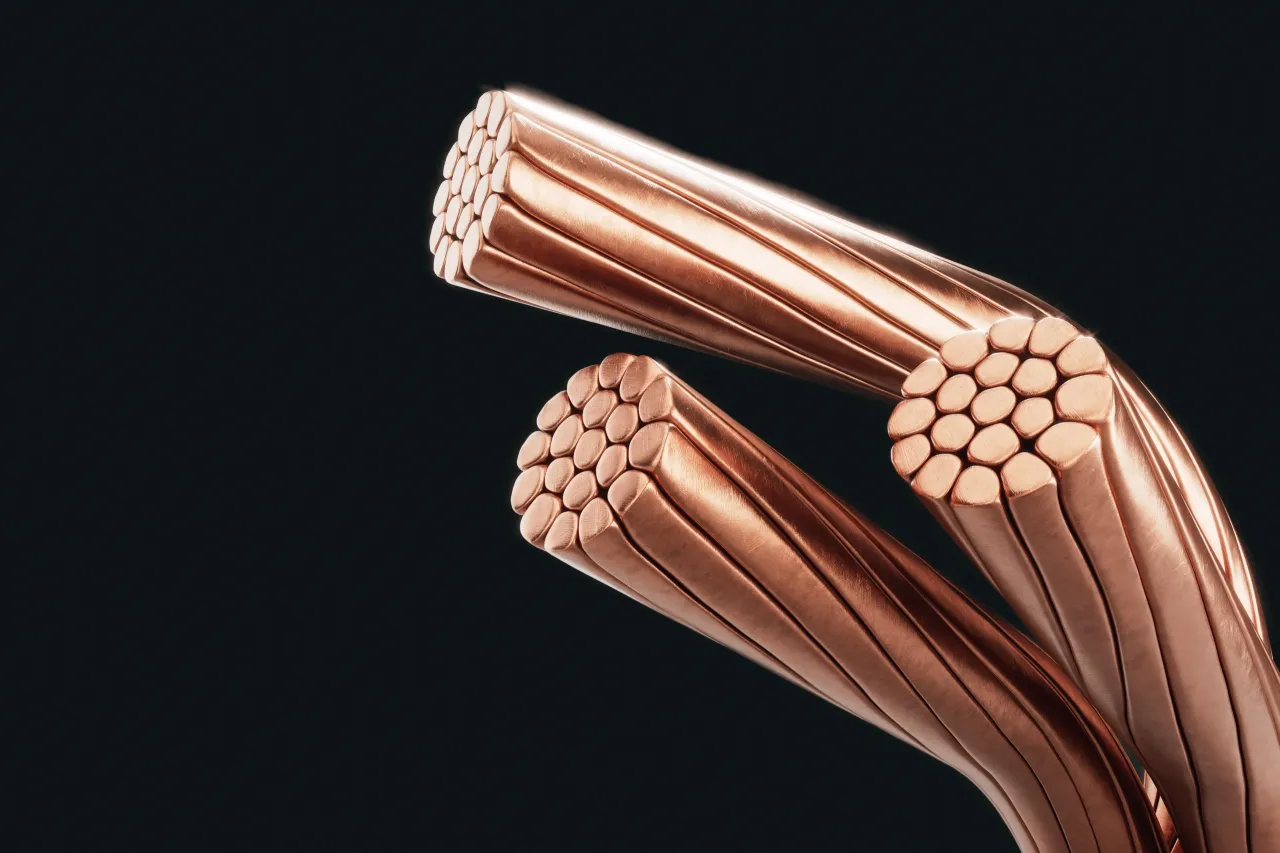

Cable image - Cu rope, RMn, soft, VDE
+
-

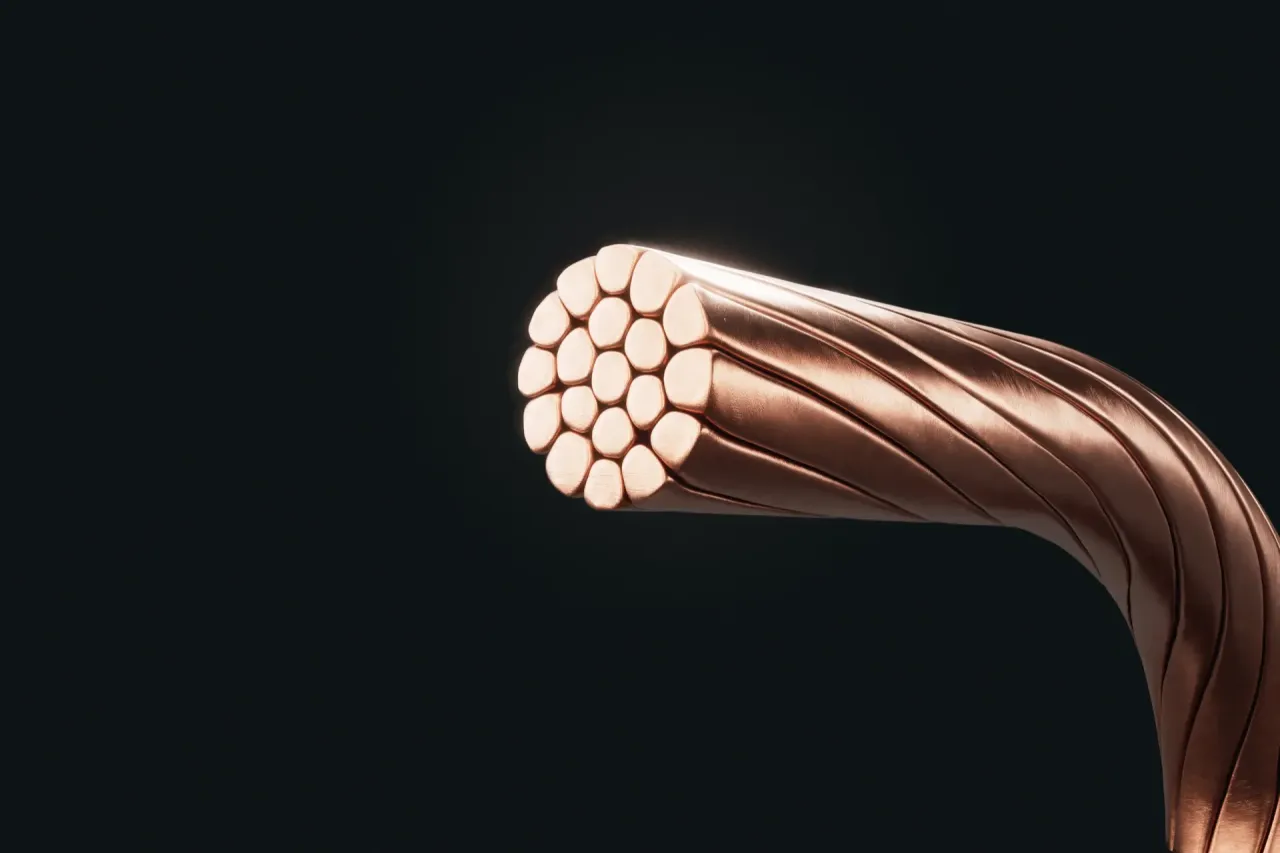

Cable image - Cu rope, RMn, soft, VDE
+
-

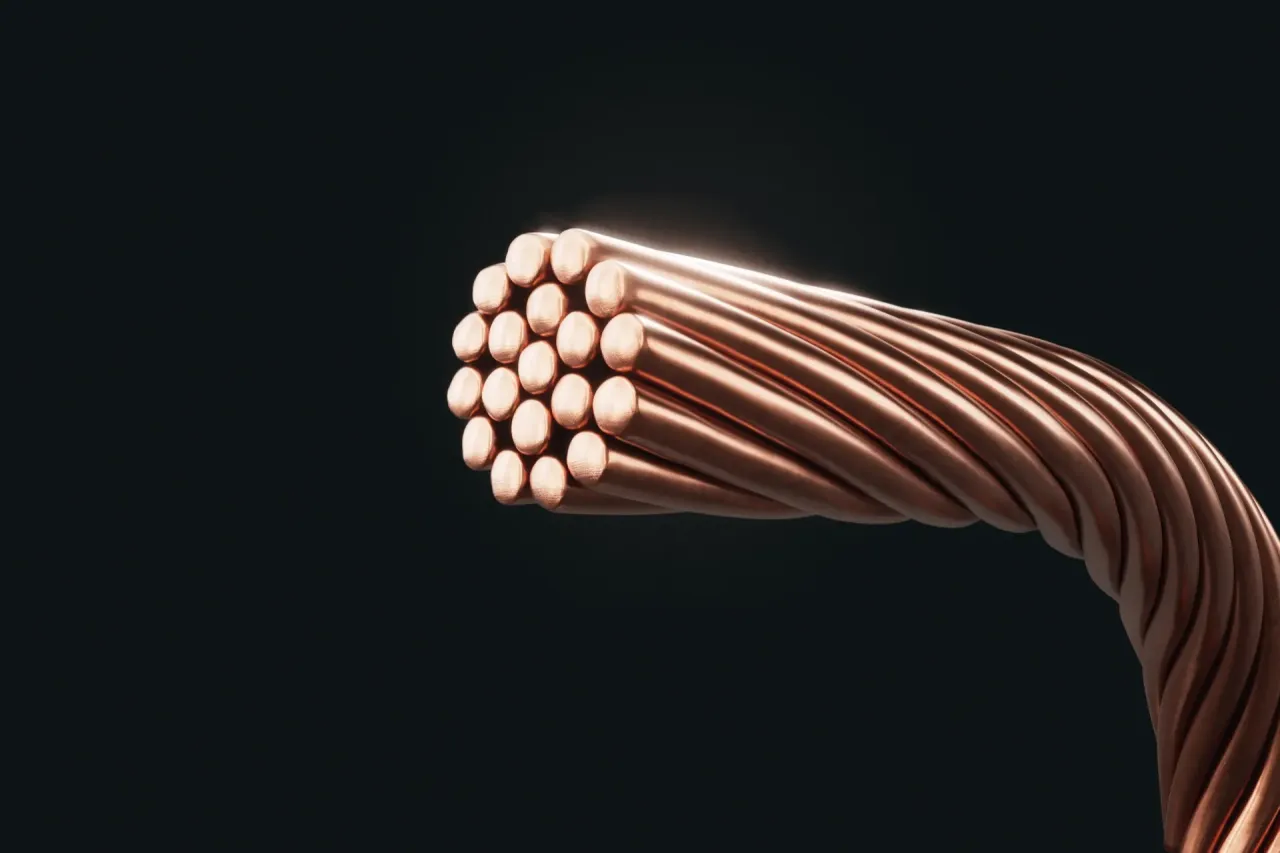

Cable image - Cu rope, RMn, soft, VDE
+
-

Contact us

Are you interested in this product?

Vojtěch Cuřín

Product supervisor

+420 731 226 023
[email protected]

Options

Add to inquiry
Conductor cross section (mm²)
Number of wires in the rope
Direction of outer layer
Max. conductor resistance (Ω/km)
Outer diameter appr. (mm)
Total weight appr. (kg/km)
16
7
right (Z)
1.15
5.1
145
25
7
right (Z)
0.727
6.3
225
35
7
right (Z)
0.524
7.5
315
50
19
right (Z)
0.387
9.0
450
70
19
right (Z)
0.268
10.5
625
95
19
right (Z)
0.193
12.5
850
120
19
right (Z)
0.153
14.0
1070
150
37
right (Z)
0.124
15.8
1340
185
37
right (Z)
0.099
17.3
1650
240
61
right (Z)
0.075
20.3
2210
300
61
right (Z)
0.060
22.5
2725
400
61
right (Z)
0.047
26.0
3640
500
61
right (Z)
0.037
29.1
4545

Technical changes reserved.

All figures are therefore without guarantee.
