Copper wire braidings, flat

Download PDF

Add to inquiry

Download PDF

To inquiry

Bare copper wire braidings, flat

Conductors

Our bare copper wire braidings / earthing straps are used for protective earthing within cabinets or for applying an additional shield around electrial connections in dry rooms without corrosive environment.

Design

This product consists of:

  • 1
    Bare copper wire or stranded bare copper wire braiding (flat)

Technical Data

Standard: TS ICS 43-2020

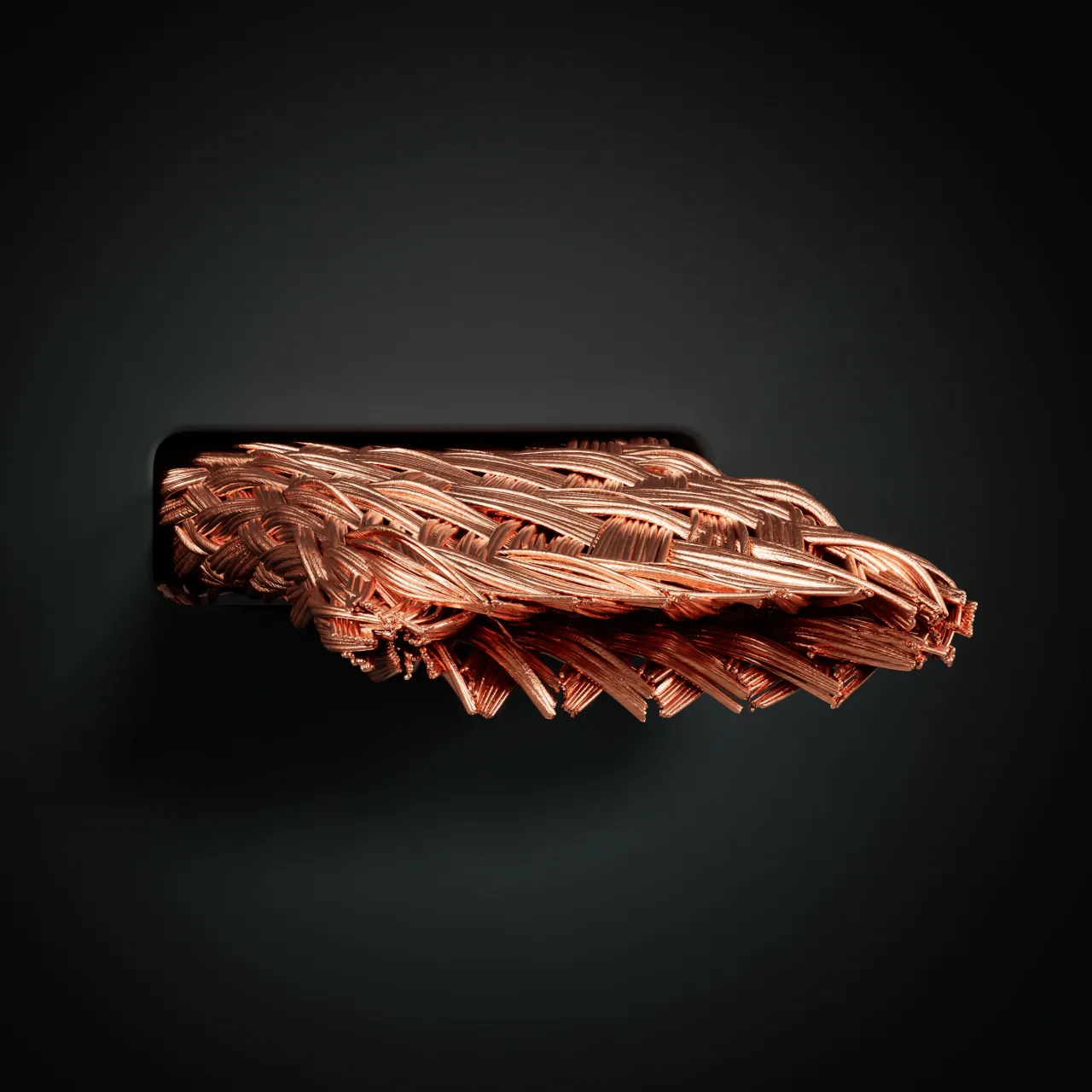

Cable image - Copper wire braidings, flat
+
-

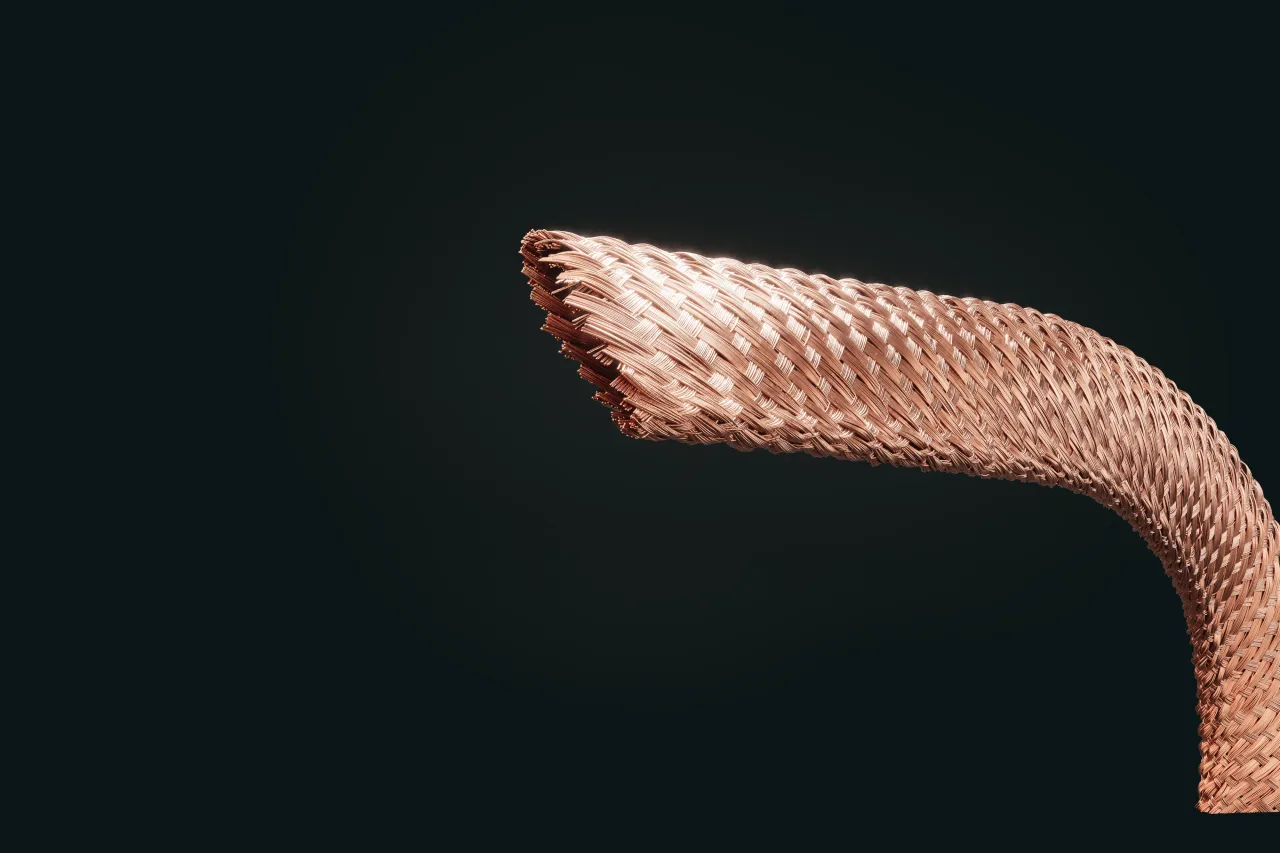

Cable image - Copper wire braidings, flat
+
-

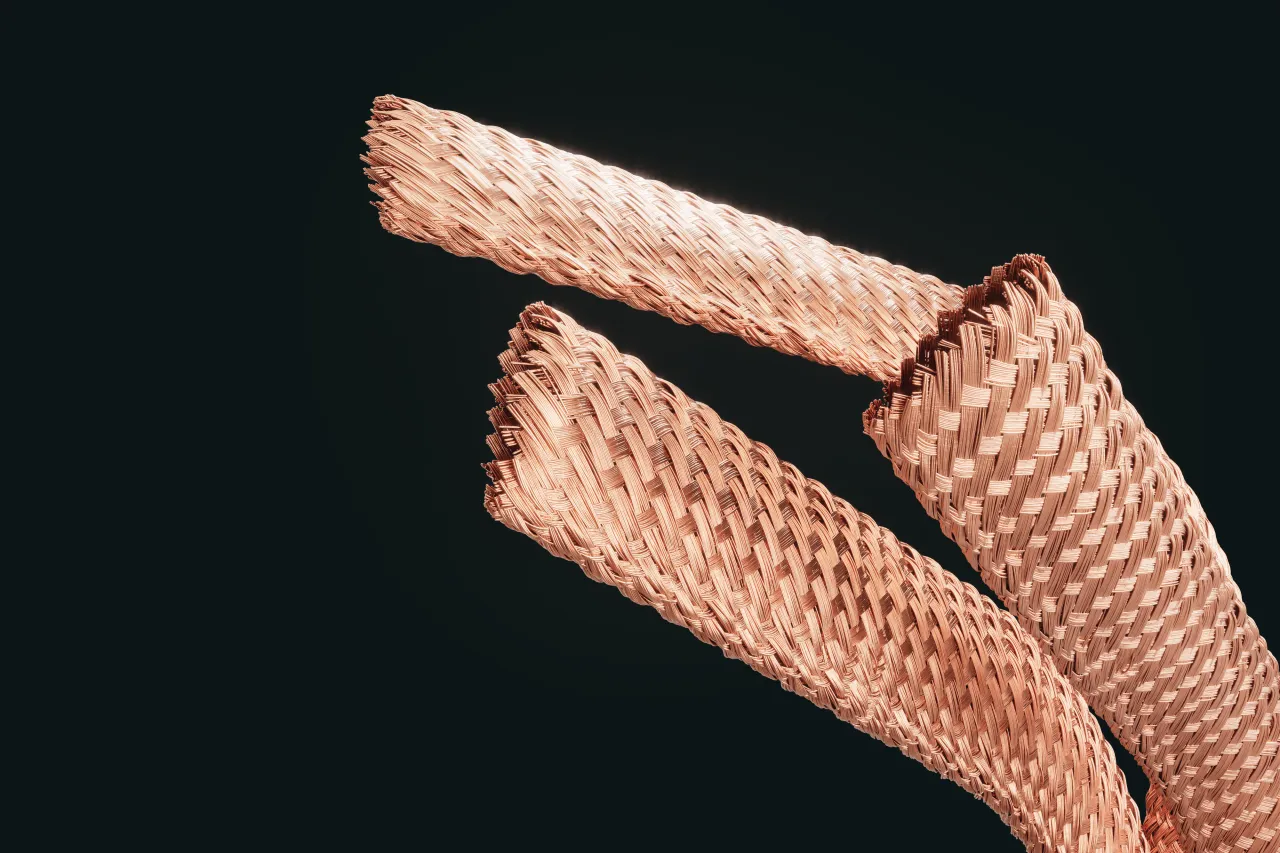

Cable image - Copper wire braidings, flat
+
-

Contact us

Are you interested in this product?

Dipl. Ing. Peter Tomka

Product supervisor

+421 37 6969631
[email protected]

Options

Add to inquiry
Single wire diameter (mm)
Conductor cross section (mm²)
Width of flatted conductor (mm)
Height of flatted conductor (mm)
Cu-value (kg/km)
0.07
6
8.5
0.9
58
0.07
10
11.5
1.2
96
0.07
16
15.2
1.4
154
0.07
20
16.8
1.7
192
0.07
25
19
1.9
240
0.07
35
21.5
2.4
336
0.1
10
11.2
1.3
96
0.1
16
15.5
1.5
154
0.1
25
20
2
240
0.1
35
24
2.2
336
0.1
50
28.5
2.8
480
0.2
25
22
1.6
240
0.2
35
24.5
2.4
336
0.2
50
31
2.7
480
0.2
70
35
3.8
672

Technical changes reserved.

All figures are therefore without guarantee.
