Signalling cable, screened, armoured, protected against interference
Railway Signalling and Telecommunications Cables
Safety and control cable for fixed installation in infrastructure signalling installations (e.g. railway installations, motorways). Suitable for fixed installation in the open air or in cable ducts.

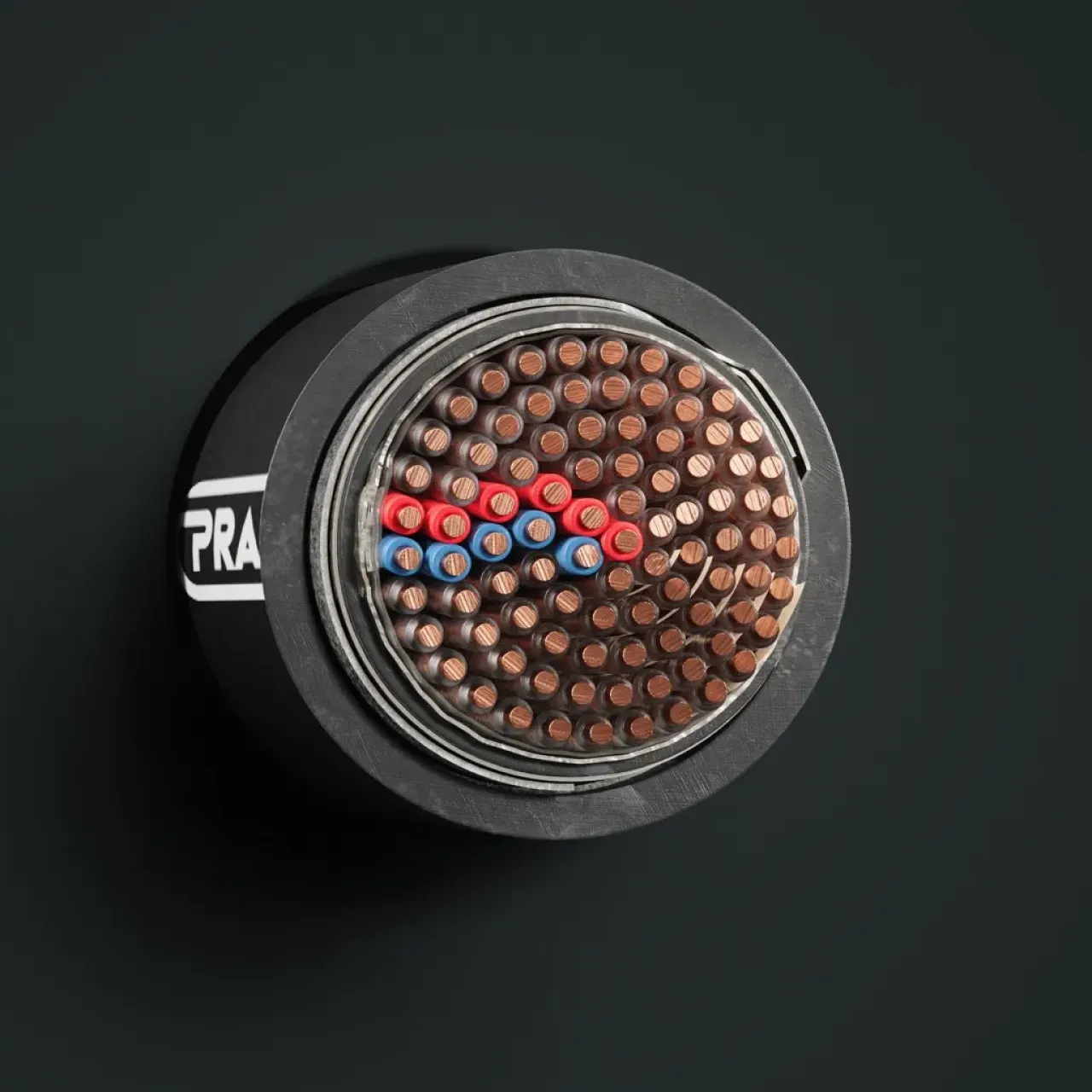

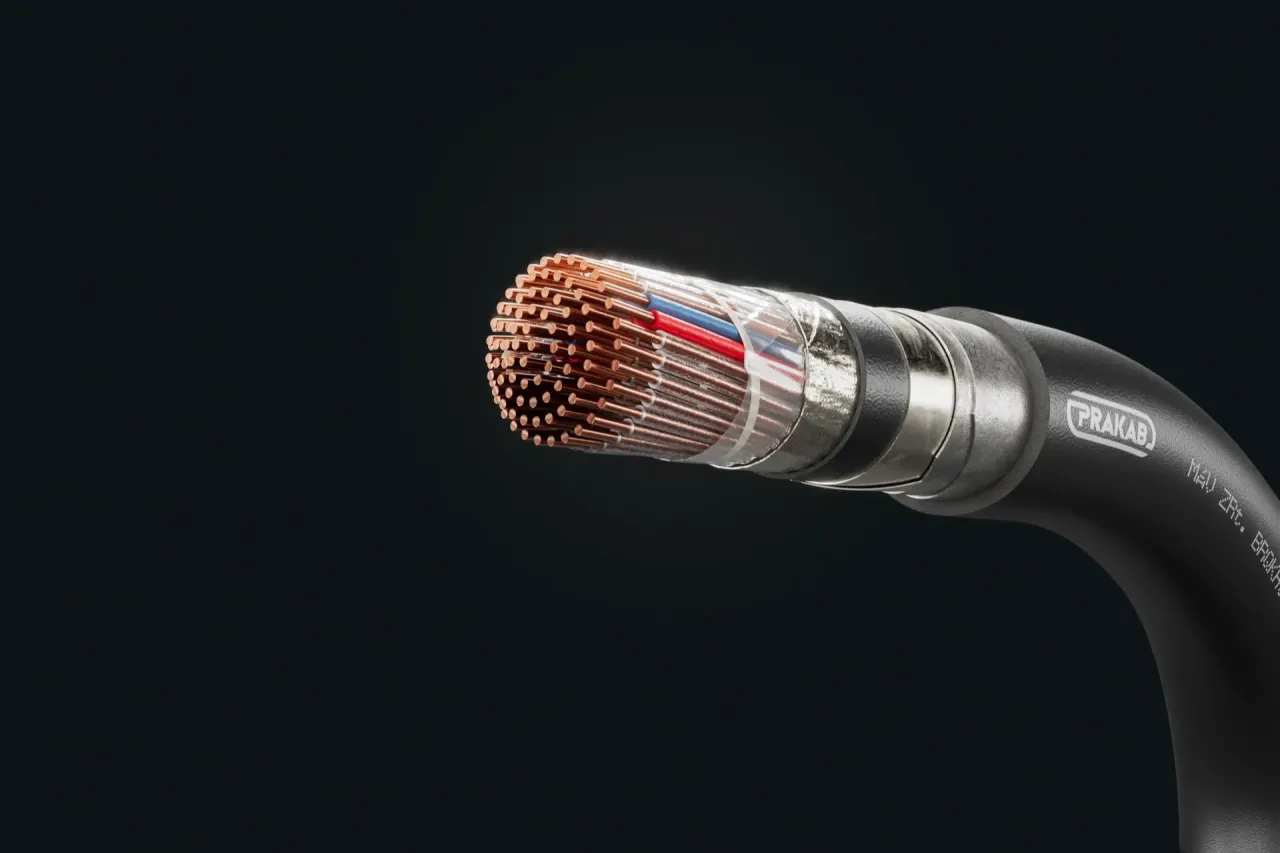

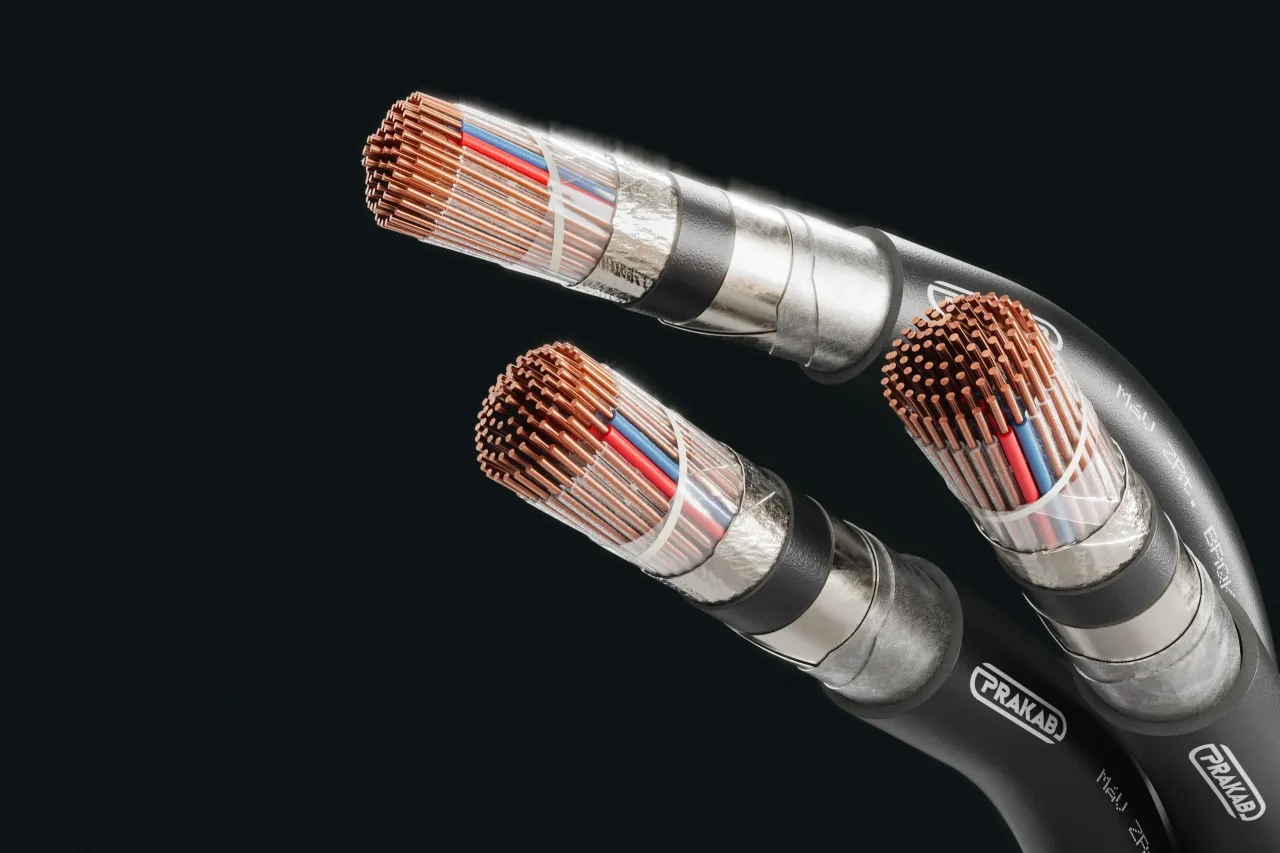

Design
This product consists of:
- 1Copper conductor, round solid (RE)
- 2Core insulation (PE), cores stranded in layers
- 3Inner covering (plastic tape)
- 4Screen (PE laminated aluminium tape)
- 5Sheath (PE, black)
- 6Screen (bare aluminium tape)
- 7Armouring (two layers galvanized steel tapes)
- 8Sheath (PE black, UV-resistant)
Technical Data
Standard: MÁV. Standard P-12440/2002, P-3196/2008
Test Voltage:
- core/core 2 kV / 50 Hz
- core/screen 3 kV / 50 Hz
Bending radius (min.): 12 x Ø of cable
Core identification: Transparent, with tracer (red) and direction (blue) core in each layer
Temperature range:
- Laying temperature: min. -10°C
- Operating temperature: -40°C up to 70°C
Contact us
Are you interested in this product?
Ing. Dan Bachtík
Product supervisor
Electricity
Parameter
Unit
Values
Conductor diameter (mm)
mm
1.5
Conductor resistance, max. at 20 °C (Ω/km)
Ω/km
10.03
Insulation resistance, min. at 20 °C (MΩ/km)
MΩ/km
10000
Reduction factor at 50 Hz, 10 to 250 V/km
null
