PVC building site cable, cold resistant
Silicone, PUR and Building Site Cables
Our building site cables AT-N07V3V3-F have been designed for medium and heavy mechanical stress in dry, damp and wet rooms, as well as for outdoor applications and in explosion hazardous areas, where they are used to connect machines and temporary solutions.

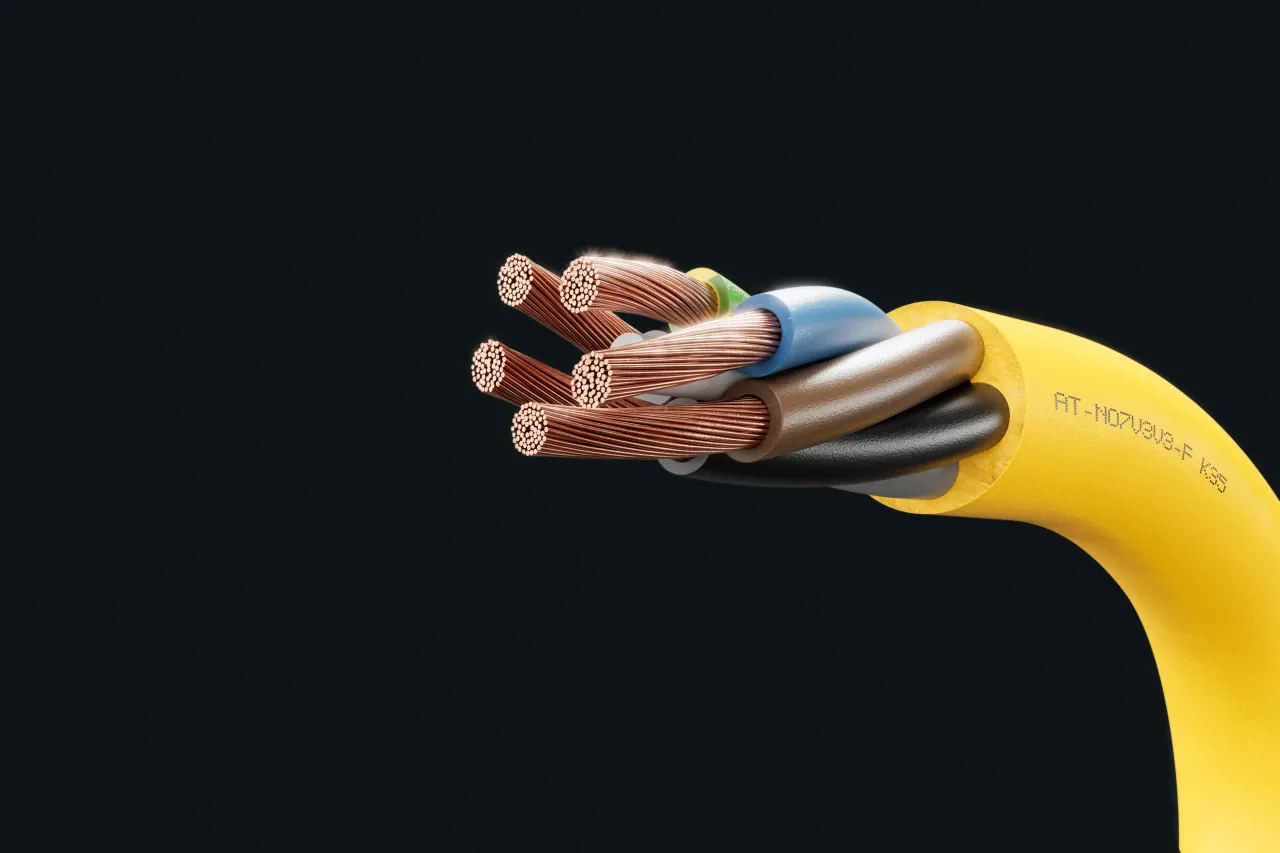

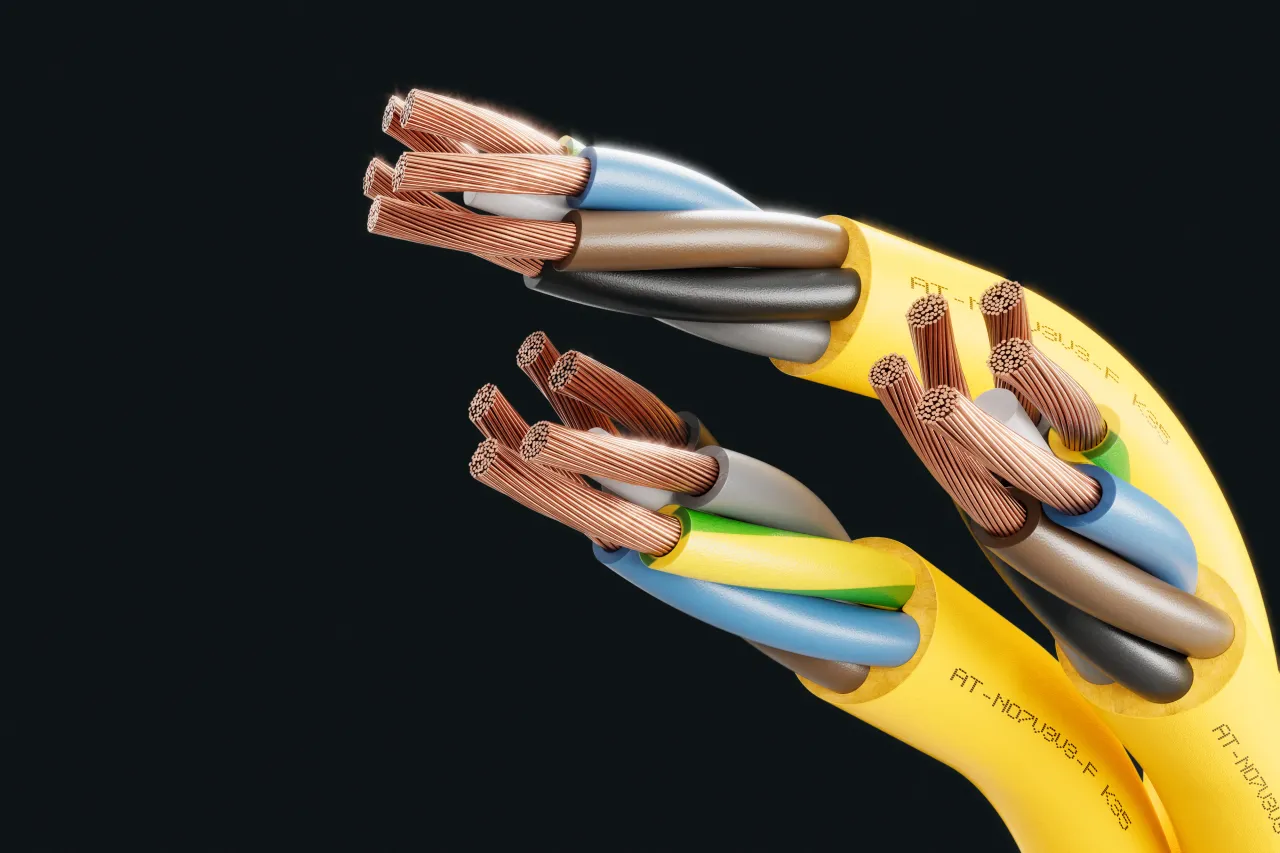

Design
This product consists of:
- 1Copper conductor, fine wire
- 2Core insulation (PVC), cores stranded in layers
- 3Sheath (PVC yellow, cold and oil resistant); printing according to customer specification possible
Technical Data
Standard: ÖVE/ÖNORM E 8241-55
Test Voltage:
- 2.5 kV / 50 Hz
Rated Voltage: 450/750 V (Uo/U)
Bending radius (min.):
- 3 x Ø of cable (fixed installed)
- 6 x Ø of cable (free motion)
Fire properties:
- EN 60332-1-2: flame retardant
- CPR classification: Eca
Core identification: colours according to CENELEC HD 308 S2
Temperature range:
- Laying temperature: min. -40°C
- Conductor temperature: max. 60°C
- Short circuit temperature: max. 150°C
- Fixed installation: -40°C up to 70°C
- Flexible use: -35°C up to 70°C
