AT-N05VV-U (YM)

Download PDF

Add to inquiry

Download PDF

To inquiry

PVC sheated

PVC and Rubber Cables and Wires

For the fixed installation in dry and damp premises. Not suitable for unprotected installation in the open air or directly in tamped concrete.

Design

This product consists of:

  • 1
    Copper conductor, round solid (RE)
  • 2
    Core insulation (PVC)
  • 3
    Inner covering (EPDM)
  • 4
    Sheath (PVC, grey RAL 7035 or other colour)

Technical Data

Standard: ÖVE/ÖNORM E 8242
Test Voltage: 2 kV / 50 Hz
Rated Voltage: 300/500 V (Uo/U)
Bending radius (min.): 4 x Ø of the cable
Fire properties:
  • EN 60332-1-2: flame retardant and self-extinguishing
  • CPR Classification: Eca
Core identification: HD 308 S2
Temperature range:
  • Laying temperature: min. 5°C
  • Operating temperature: -40°C up to 70°C
  • Conductor temperature: max. 70°C
  • Short circuit temperature: max. 160°C

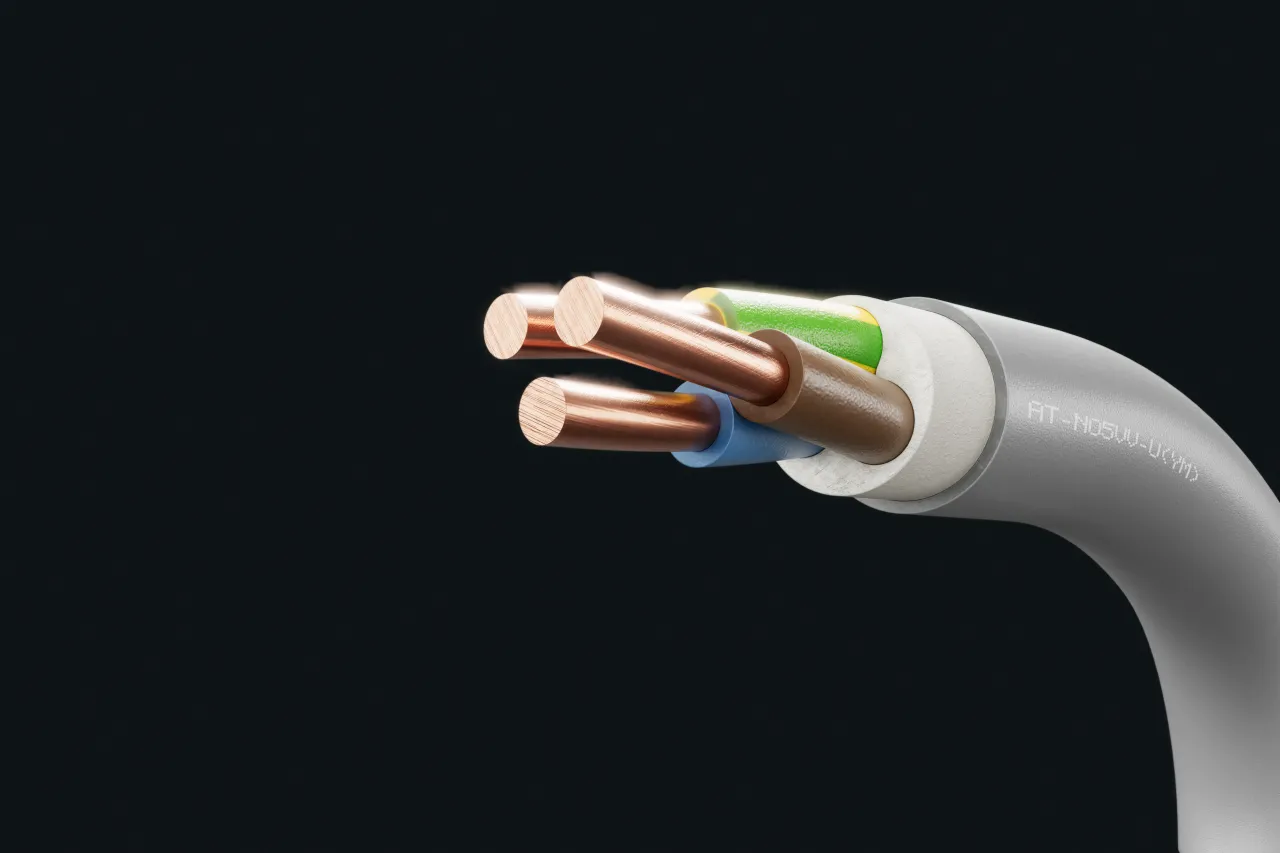

Cable image - AT-N05VV-U (YM)
+
-

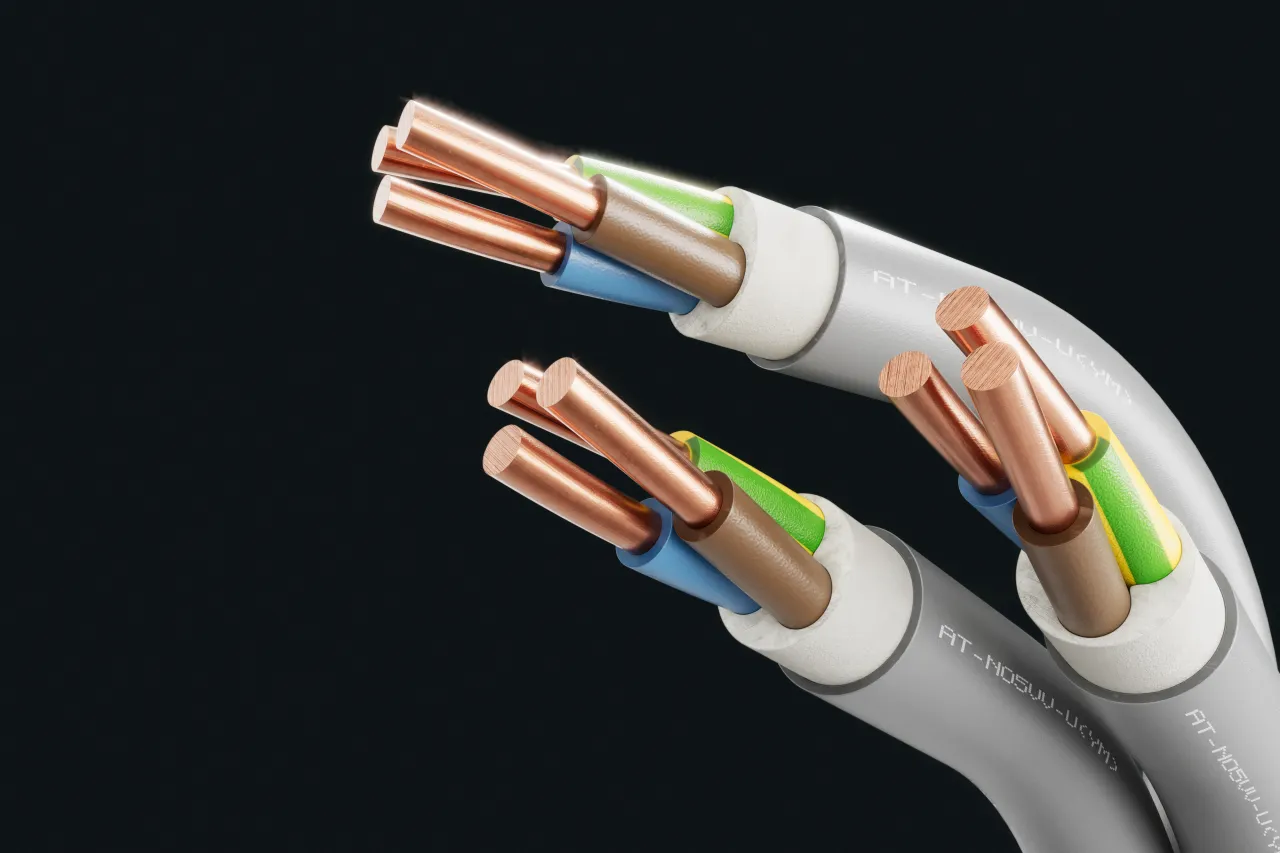

Cable image - AT-N05VV-U (YM)
+
-
Cable image - AT-N05VV-U (YM)
+
-

Contact us

Are you interested in this product?

Dogan Özcan, MSc

Product supervisor

+43 (0) 1 70170-154
[email protected]

Options

Add to inquiry
Number of cores x nominal cross-section (mm²)
Max. conductor resistance (Ω/km)
Fire load (kWh/m)
Outer diameter appr. (mm)
Total weight appr. (kg/km)
Standard lengths/packing (m)
2 x 1,5 RE
12.1
0.42
8.3
98
50 R, 100 R, 500 SP, 1000 SP
3 x 1,5 RE
12.1
0.44
8.5
117
50 R, 100 R, 500 SP, 1000 SP
4 x 1,5 RE
12.1
0.52
9.4
134
50 R, 100 R, 500 SP, 1000 SP
5 x 1,5 RE
12.1
0.58
10.2
163
50 R, 100 R, 500 SP, 1000 SP
7 x 1,5 RE
12.1
0.67
11.4
197
50 R, 100 R, 500 SP, 1000 SP
10 x 1,5 RE
12.1
1.05
14.5
307
50 R, 100 R, 500 SP, 1000 SP
12 x 1,5 RE
12.1
1.17
14.9
346
50 R, 100 R, 500 SP, 1000 SP
2 x 2,5 RE
7.41
0.53
9.6
125
50 R, 100 R, 500 SP, 1000 SP
3 x 2,5 RE
7.41
0.58
10.1
165
50 R, 100 R, 500 SP, 1000 SP
4 x 2,5 RE
7.41
0.67
11.0
204
50 R, 100 R, 500 SP, 1000 SP
5 x 2,5 RE
7.41
0.75
12.0
245
50 R, 100 R, 500 SP, 1000 SP
7 x 2,5 RE
7.41
0.88
12.8
314
50 R, 100 R, 500 SP, 1000 SP
2 x 4 RE
4.61
0.72
9.4
173
50 R, 100 R, 500 SP, 1000 SP
3 x 4 RE
4.61
0.72
11.7
237
50 R, 100 R, 500 SP, 1000 SP
4 x 4 RE
4.61
0.92
12.7
294
50 R, 100 R, 500 SP, 1000 SP
5 x 4 RE
4.61
1.11
13.8
352
50 R, 100 R, 500 SP, 1000 SP
3 x 6 RE
3.08
0.92
14.4
332
50 R, 100 R, 500 SP, 1000 SP
4 x 6 RE
3.08
1.08
14.6
405
50 R, 100 R, 500 SP, 1000 SP
5 x 6 RE
3.08
1.28
15.9
496
50 R, 100 R, 500 SP, 1000 SP
3 x 10 RE
1.83
1.28
17.3
619
500 D, 1000 D
4 x 10 RE
1.83
1.5
19.1
756
500 D, 1000 D
5 x 10 RE
1.83
1.83
21.0
860
500 D, 1000 D

Technical changes reserved.

All figures are therefore without guarantee.
