XLPE insulated bundled overhead line

Power Cables and Overhead Lines 0.6/1 kV

Used for fixed installation as overhead power lines up to 1000 V inclusive. Not suitable for direct burial.

Design

This product consists of:

  • 1
    Aluminium conductor with increased breaking load, round stranded compressed (RM)
  • 2
    Core insulation (XLPE black, UV-resistant); 2 or 4 cores of equal cross section are stranded together in left-hand lay, additionaly 1 or 2 cores of reduced cross section can be co-stranded

Technical Data

Standard: BS 7870-5
Test Voltage: 4 kV / 50 Hz
Rated Voltage: 0.6/1 kV
Bending radius (min.): 18 x Ø of cable
Core identification: 1, 2 resp. 3 raised longitudinal ribs on the surface of the cores. The surface of the neutral conductor is ribbed around the precimeter. In the case of five core bundles the surface of the protective core should be smooth.
Temperature range:
  • Laying temperature: min. -20°C
  • Operating temperature: -30°C up to 80°C
  • Conductor temperature: max. 75°C
  • Short circuit temperature: max. 130°C

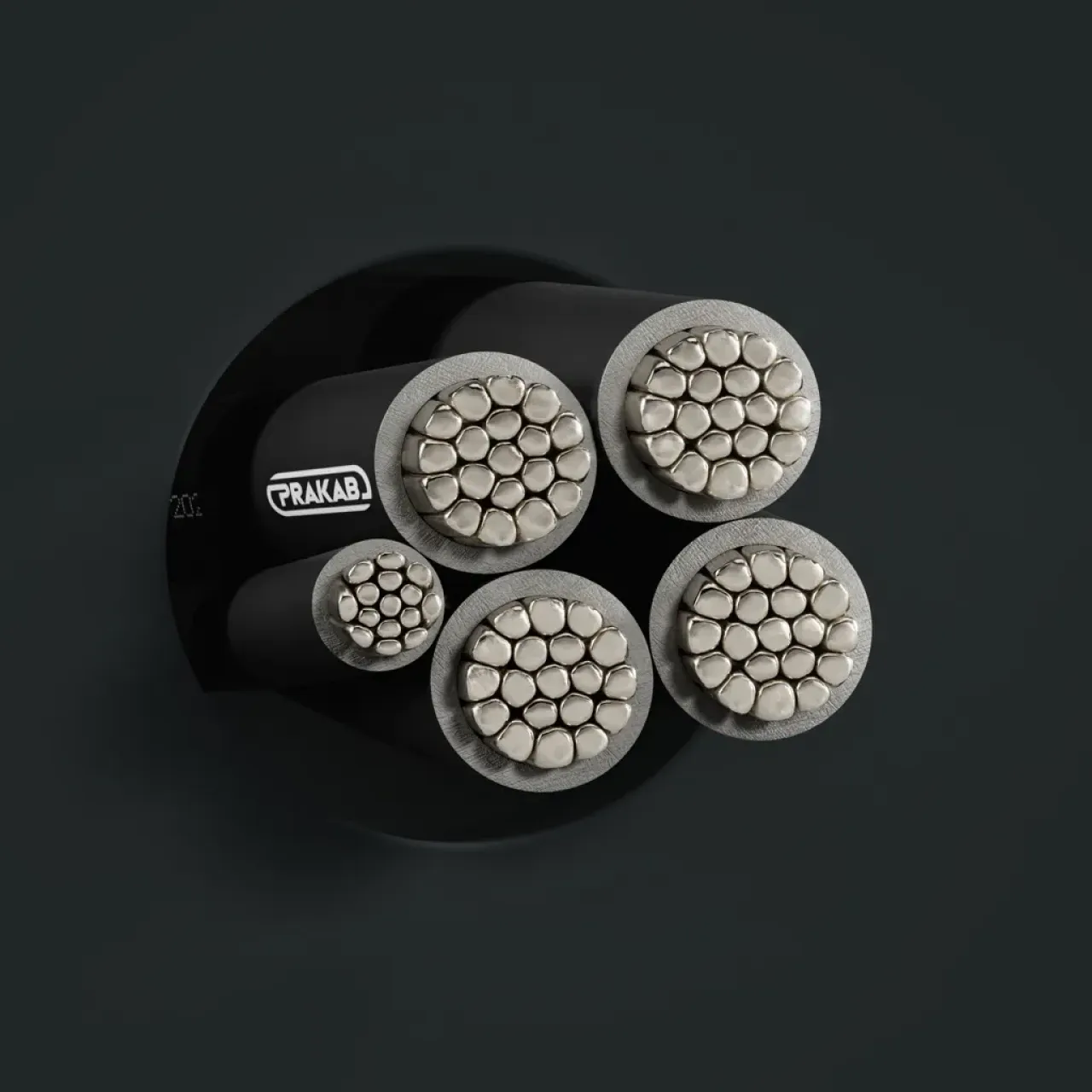

Cable image - ABC-BS
+
-

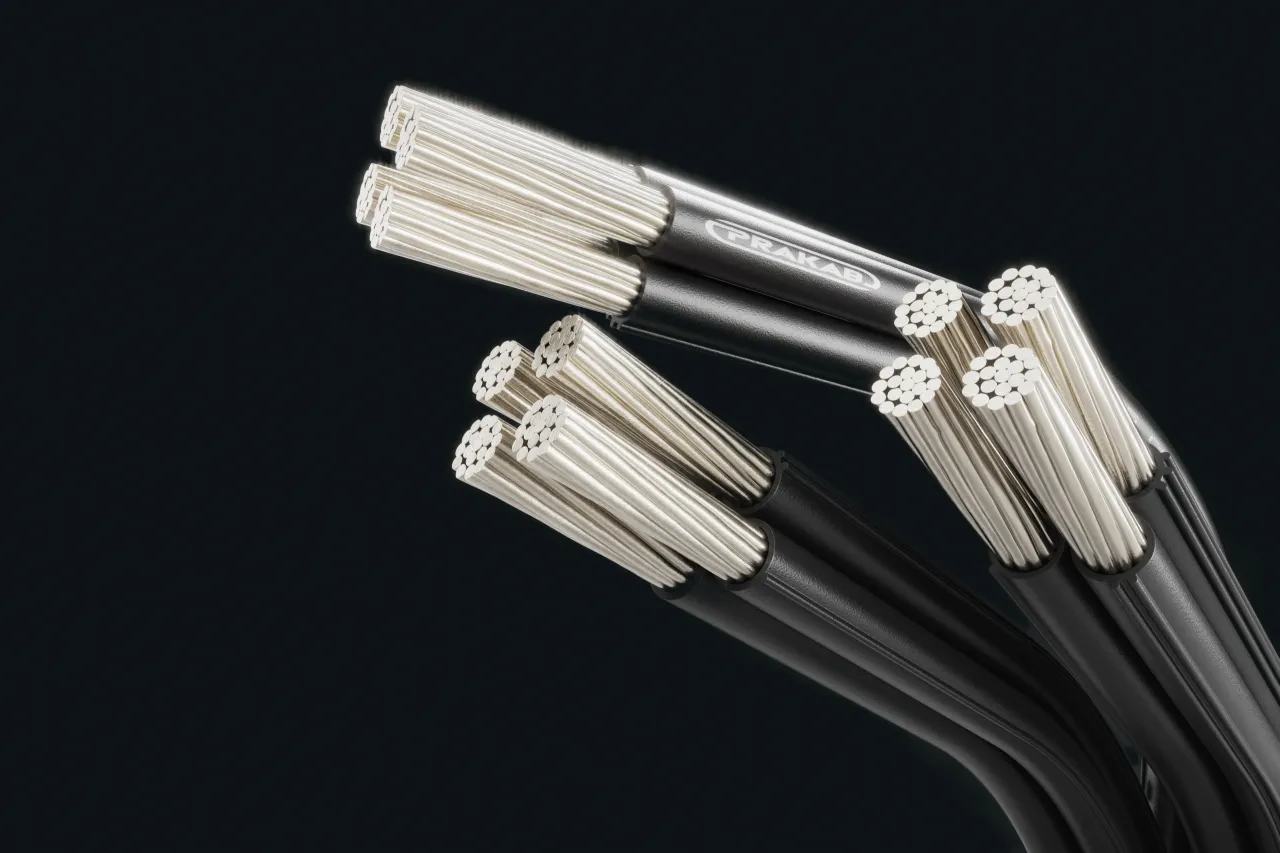

Cable image - ABC-BS
+
-

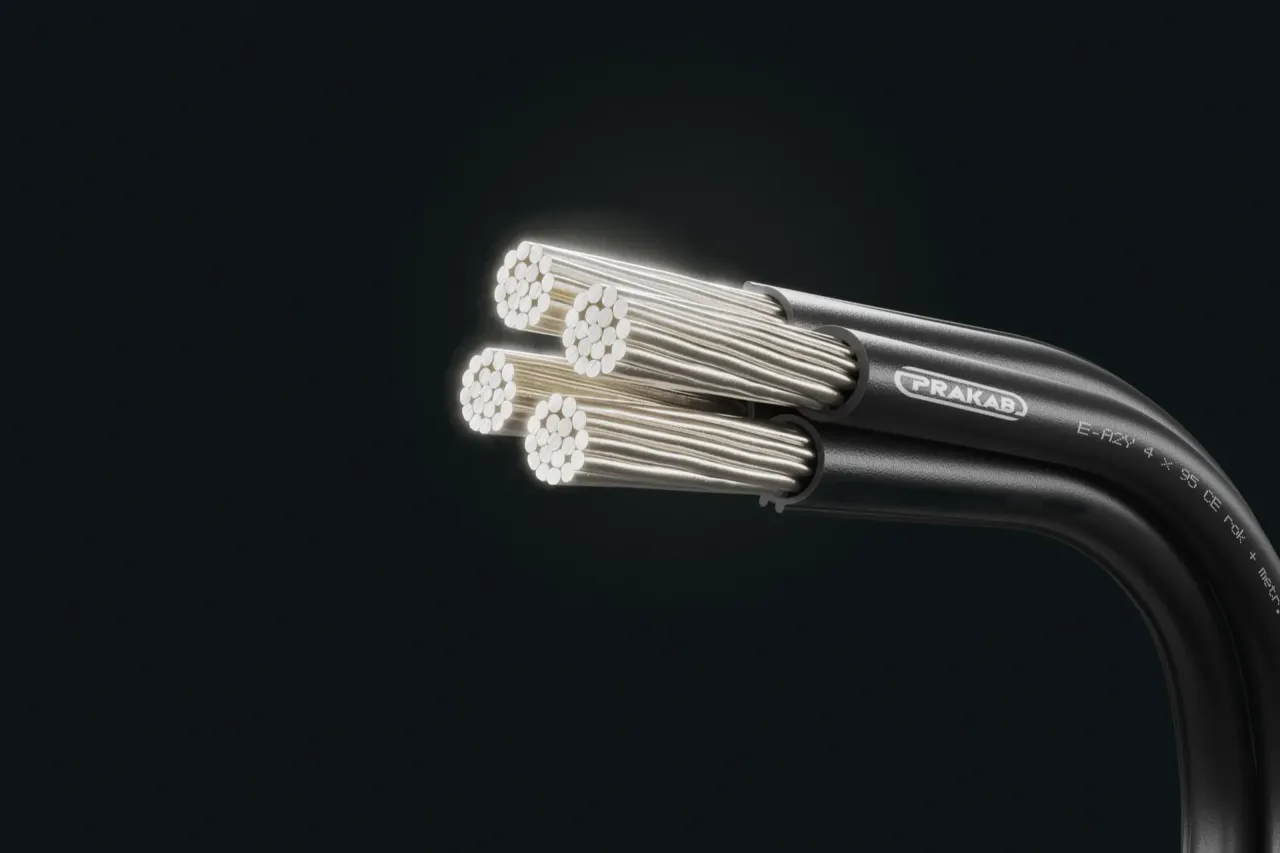

Cable image - ABC-BS
+
-

Contact us

Are you interested in this product?

Vojtěch Cuřín

Product supervisor

+420 731 226 023
[email protected]

Options

Add to inquiry
Number of cores x nominal cross-section (mm²)
Max. conductor resistance (Ω/km)
Min. breaking load of conductor strand (kN)
Current rating in the air (A)
Outer diameter appr. (mm)
Total weight appr. (kg/km)
2 x 16 RM
1.91
2.5
72
15.1
134
4 x 16 RM
1.91
2.5
72
18.2
268
2 x 25 RM
1.2
4.1
107
17.5
193
4 x 25 RM
1.2
4.1
107
21.0
386
2 x 35 RM
0.868
5.6
132
19.7
253
4 x 35 RM
0.868
5.6
132
23.7
506
4 x 35 + 25 RM/RM
0.868 / 1.2
5.6
132
23.7
603
2 x 50 RM
0.641
7.6
165
22.8
341
4 x 50 RM
0.641
7.6
165
27.4
681
4 x 50 + 25 RM/RM
0.641 / 1.2
7.6
165
27.5
778
2 x 70 RM
0.443
11
205
26.1
468
4 x 70 RM
0.443
11
205
31.4
935
2 x 95 RM
0.32
15.3
240
30.4
640
4 x 95 RM
0.32
15.3
240
36.6
1281
4 x 95 + 25 RM/RM
0.32 / 1.2
15.3
240
36.6
1378
5 x 95 RM
0.32
15.3
240
41.0
1602
4 x 120 RM
0.253
19.4
290
39.6
1572
2 x 150 RM
0.206
23.2
334
37.3
970

Technical changes reserved.

All figures are therefore without guarantee.
