A2XS(F)2Y 18/30 kV IEC

Download PDF

Add to inquiry

Download PDF

To inquiry

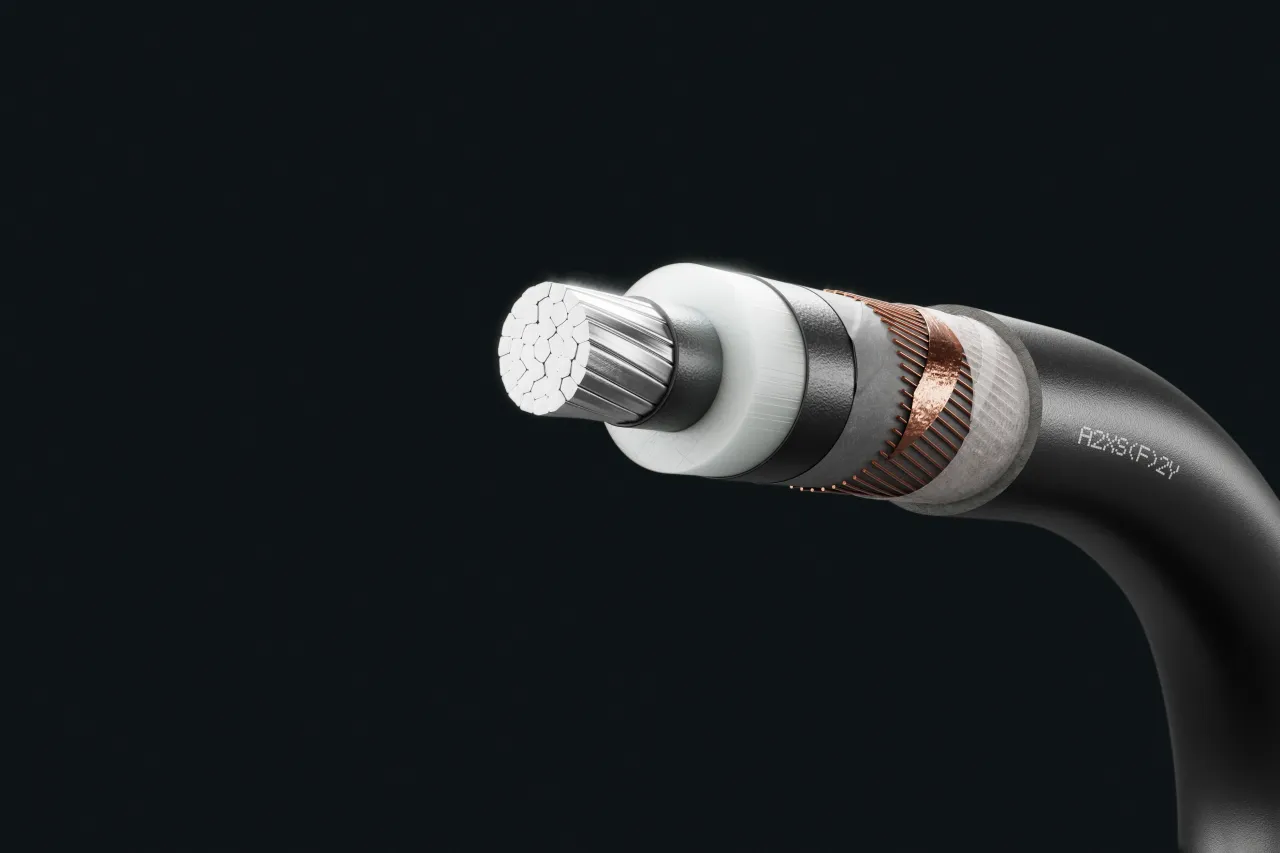

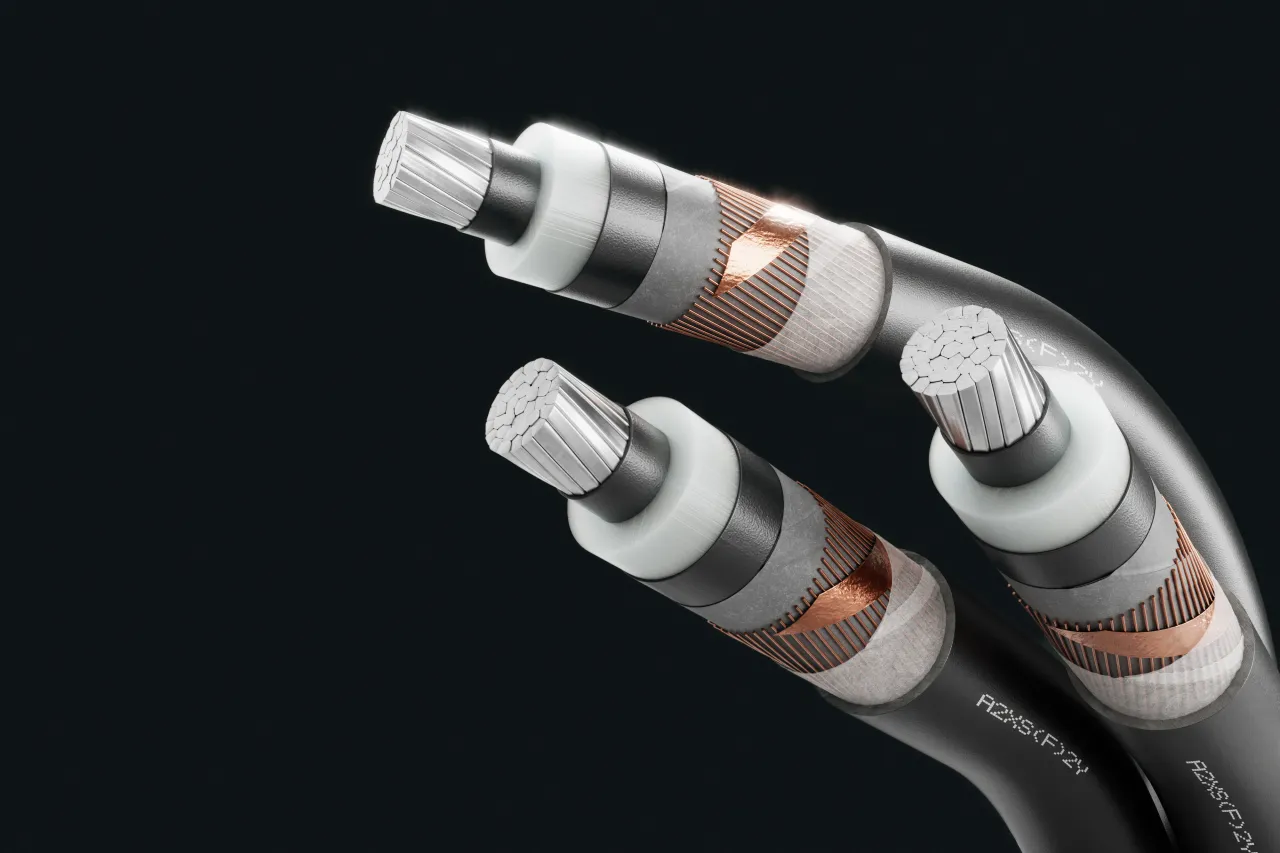

XLPE/HDPE medium voltage underground cable, longitudinally water-proof

Medium Voltage Cables 10 - 30 kV

For fixed installation for high requirements in the ground subject to external effects of moisture, in the open air and in cable ducts for industrial and distribution mains – as permitted by the local building regulations – under severe mechanical stressing during installation and operation.

Design

This product consists of:

1
Aluminium conductor, round stranded compacted (RMk)
2
Inner semi-conductive layer (conductive XLPE)
3
Insulation (XLPE)
4
Outer semi-conductive layer (conductive XLPE)
5
Tape (semi-conducting layer)
6
Metallic screen (copper wires with copper tape)
7
Swelling tape (longitudinal water tightness)
8
Sheath (HDPE black, UV-resistant)

Technical Data

Standard: IEC 60502-2

Certificate: EZÚ Czech Republic

Test Voltage: 63 kV / 50 Hz

Rated Voltage:

18/30 kV (Uo/U)
36 kV (Um)

Bending radius (min.): 15 x Ø of cable

Fire properties: CPR Classification: Fca

Temperature range:

Laying temperature: min. -20°C
Operating temperature: -50°C up to 90°C
Conductor temperature: max. 90°C
Short circuit temperature: max. 250°C

Contact us

Are you interested in this product?

Vojtěch Cuřín

Product supervisor

+420 731 226 023

[email protected]

Add to inquiry

Number of cores x nominal cross-section / cross-section of screen (mm²)

Max. conductor resistance (Ω/km)

Current rating in the earth (A)

Current rating in the air (A)

Outer diameter appr. (mm)

Total weight appr. (kg/km)

1 x 150 RM / 25

0.206

319

366

41.1

1551

1 x 185 RM / 25

0.164

361

420

42.4

1687

1 x 240 RM / 25

0.125

417

496

45.3

1964

1 x 300 RM / 25

0.1

471

569

47.5

2202

1 x 400 RM / 35

0.078

535

660

50.9

2703

1 x 500 RM / 35

0.061

609

766

54.3

3103

1 x 630 RM / 35

0.047

675

890

57.9

3664
