A-2YOF(L)2YB2Y (H115/H145)

Download PDF

Add to inquiry

Download PDF

To inquiry

Signalling cable, screened, longitudinally water-proof

For general use as a undeground cable in signalling devices.

Design

This product consists of:

  • 1
    Copper conductor, round solid (RE)
  • 2
    Core insulation (PE), core stranded in layer. Core stranding filled by low capacitance filling compound
  • 3
    Inner covering (plastic tape)
  • 4
    Screen (plastic laminated aluminium foil, which is welded to the PE sheath)
  • 5
    Inner sheath (PE, black)
  • 6
    Inner protective covering (plastic tape)
  • 7
    Armouring (galvanized steel tape)
  • 8
    Outer sheath (PE black, UV-resistant)

Technical Data

Standard: Adapted to DB AG No.: 416.0113
Certificate: VDE Germany
Test Voltage: 2500 VAC
Rated Voltage:
  • 600 V (DC)
  • 420 V (AC, RMS)
Bending radius (min.): 20 x Ø of cable
Core identification: DB AG No.: 416.0116
Temperature range:
  • Laying temperature: min. -10°C
  • Operating temperature: -40°C up to 60°C

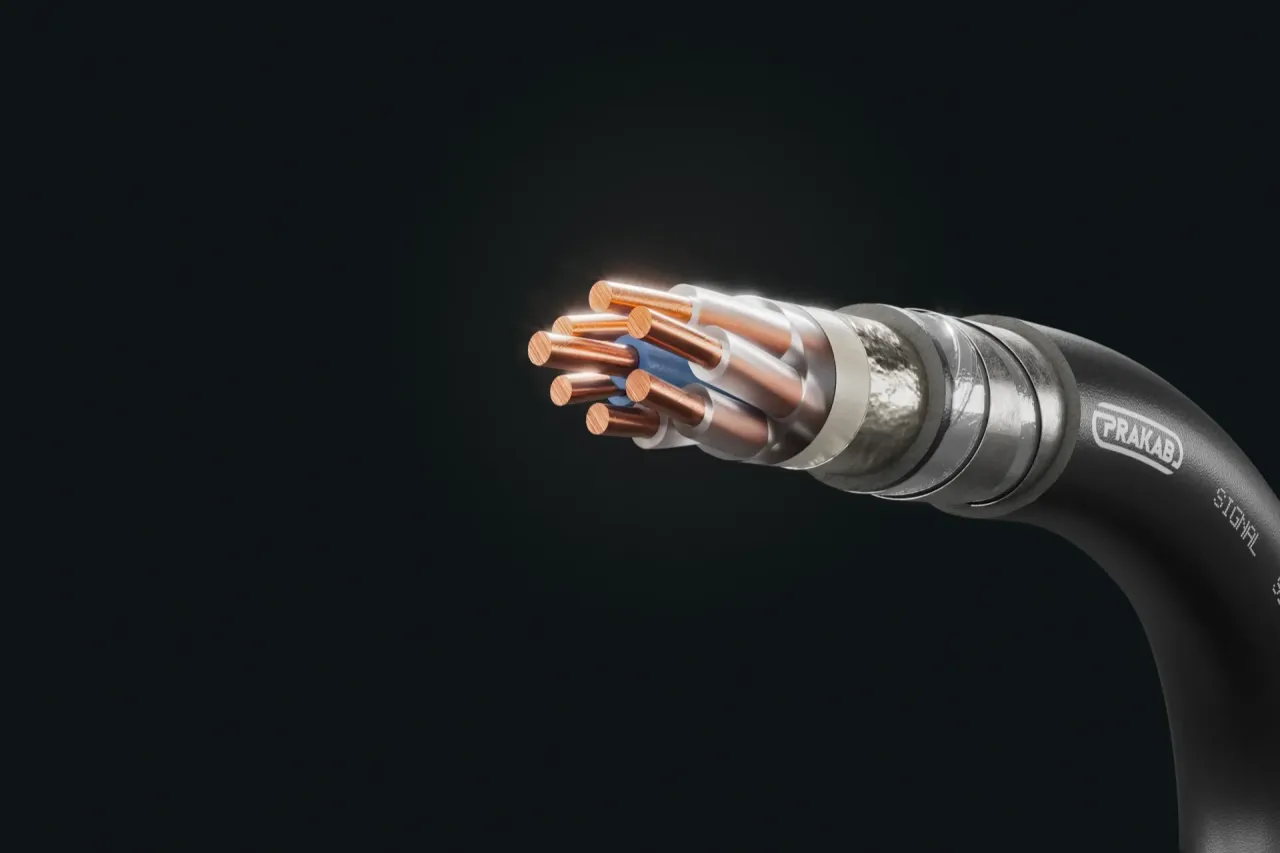

Cable image - A-2YOF(L)2YB2Y (H115/H145)
+
-

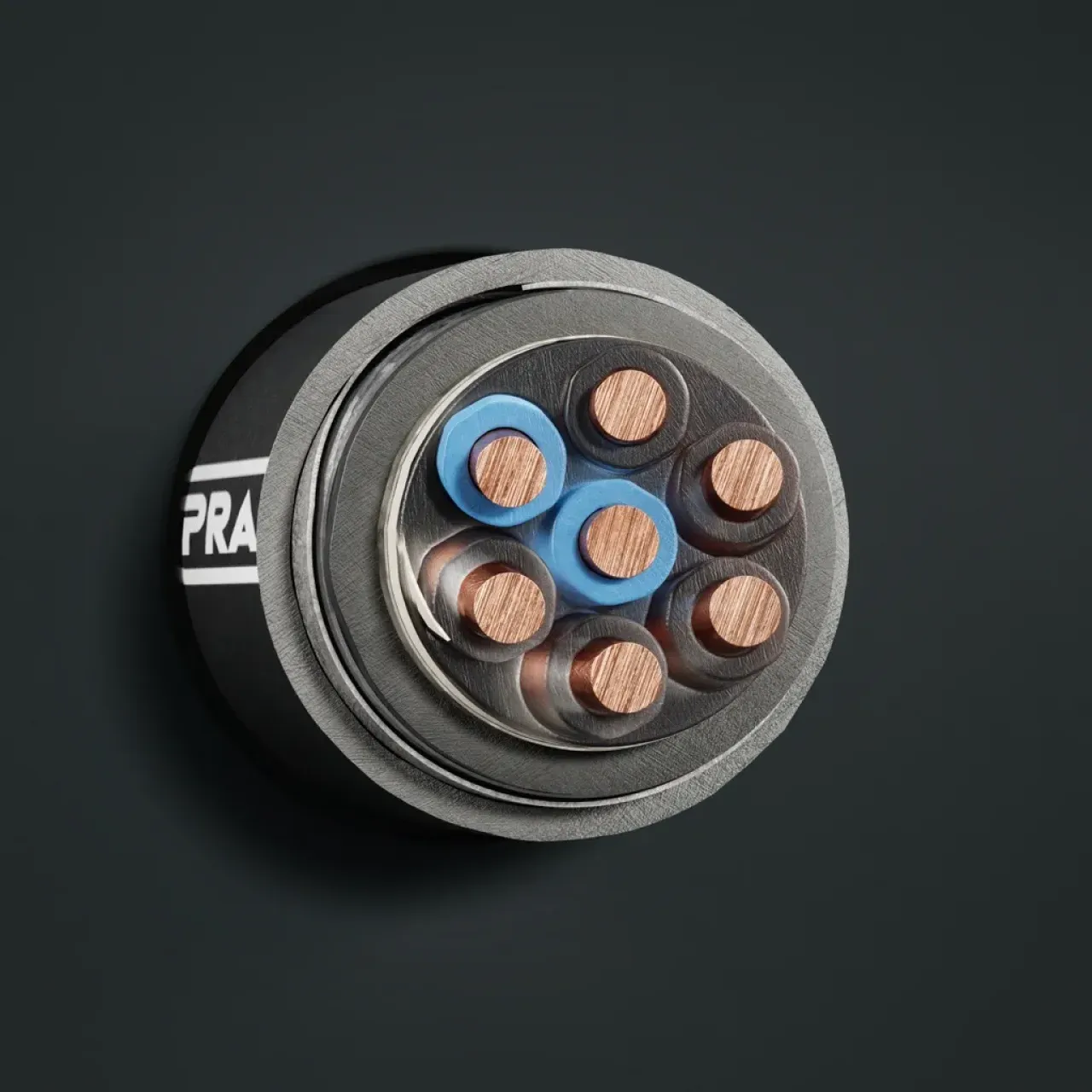

Cable image - A-2YOF(L)2YB2Y (H115/H145)
+
-

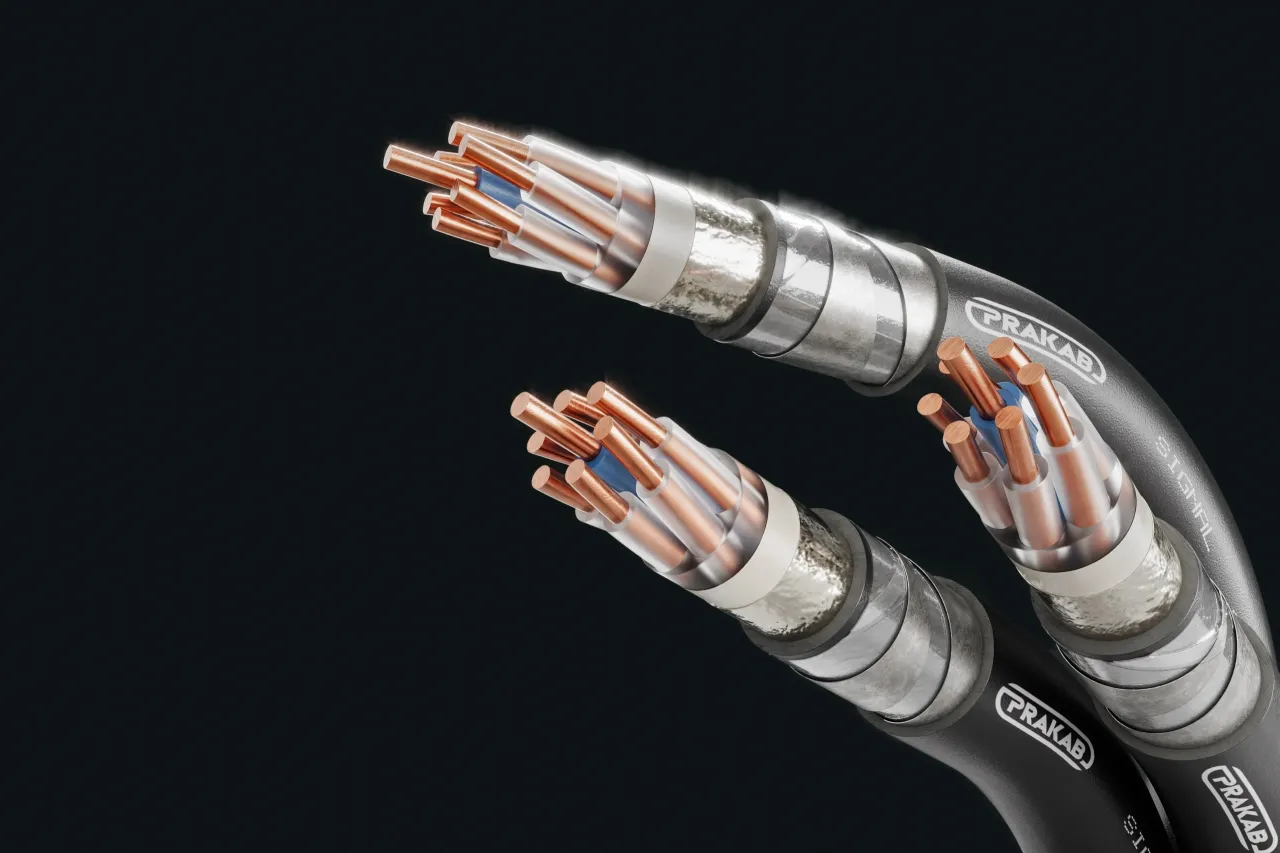

Cable image - A-2YOF(L)2YB2Y (H115/H145)
+
-

Contact us

Are you interested in this product?

Ing. Štěpán Laštůvka

Product supervisor

+420 732 912 682
[email protected]

Electricity

Add to inquiry
Parameter
Unit
Values
Conductor diameter (mm)
mm
0.9
1.4
1.8
Conductor resistance, max. at 20 °C (Ω/km)
Ω/km
28.9
11.9
7.2
Insulation resistance, min. at 20 °C (MΩ/km)
MΩ/km
1500
1500
1500
Mutual capacitance (approx. value), at 800 Hz (nF/km)
nF/km
115
145
145

Options

Add to inquiry
Number of cores x conductor diameter
Outer diameter appr. (mm)
Total weight appr. (kg/km)
2
10.0
160
4
10.0
170
4
11.0
240
4
13.0
300
7
11.0
220
7
14.0
320
7
16.0
430
8
21.1
684
10
14.0
290
10
15.0
410
10
18.0
560
14
14.0
300
14
16.0
490
14
19.0
680
20
15.0
380
20
19.0
630
20
22.0
890
24
17.0
460
24
20.0
730
24
24.0
1060
30
17.0
490
30
21.0
840
30
26.0
1230
40
18.0
590
40
24.0
1050
40
28.0
1560
50
20.0
700
50
26.0
1280
50
32.0
1940
60
22.0
800
60
28.0
1490
60
34.0
2280
80
23.0
1000
80
31.0
1920
80
38.0
2920
100
27.0
1250
100
35.0
2350
100
43.0
3630
120
28.0
1390
120
37.0
2730
140
31.0
1650
140
40.0
3140
160
32.0
1790
160
42.0
3540
180
35.0
2030
180
45.0
3970
200
35.0
2150

Technical changes reserved.

All figures are therefore without guarantee.
