2YSL(St)CY-J 0.6/1 kV EMV

Download PDF

Add to inquiry

Download PDF

To inquiry

PE/PVC motor power supply cable, screened

Control and electronics cables

Double screened 2YSL(St)CY-J cables were designed as supply and connecting cables, for medium mechanical stress, fixed installation and occasionally non-guided movements, in dry, damp and wet rooms. UV-resistant black sheath is designed for outdoor applications. Double screening considerably improves electromagnetic compatibility (EMC) in buildings and plants.

Design

This product consists of:

  • 1
    Kupferleiter, feindrähtig
  • 2
    Aderisolation (PE), Adern mit optimaler Schlaglänge verseilt
  • 3
    Bebänderung (Kunststofffolie, optional)
  • 4
    Schirm (kunststoffkaschierte Aluminiumfolie und Geflechtschirm aus verzinnten Kupferdrähten)
  • 5
    Mantel (PVC, transparent (2YSL(St)CY-J) oder schwarz (2YSL(St)CYK-J))

Technical Data

Standard: DIN VDE 0276-603
Test Voltage: 4 kV / 50 Hz
Rated Voltage: 0.6/1 kV (Uo/U)
Bending radius (min.): 15 x Ø of cable (free motion)
Fire properties: EN 60332-1-2: self-extinguishing and flame retardant
Core identification: HD 308 S2
Temperature range:
  • Laying temperature: min. 5°C
  • Conductor temperature: max. 70°C
  • Short circuit temperature: max. 160°C
  • Fixed installation: -30°C up to 80°C
  • Flexible use: -5°C up to 70°C

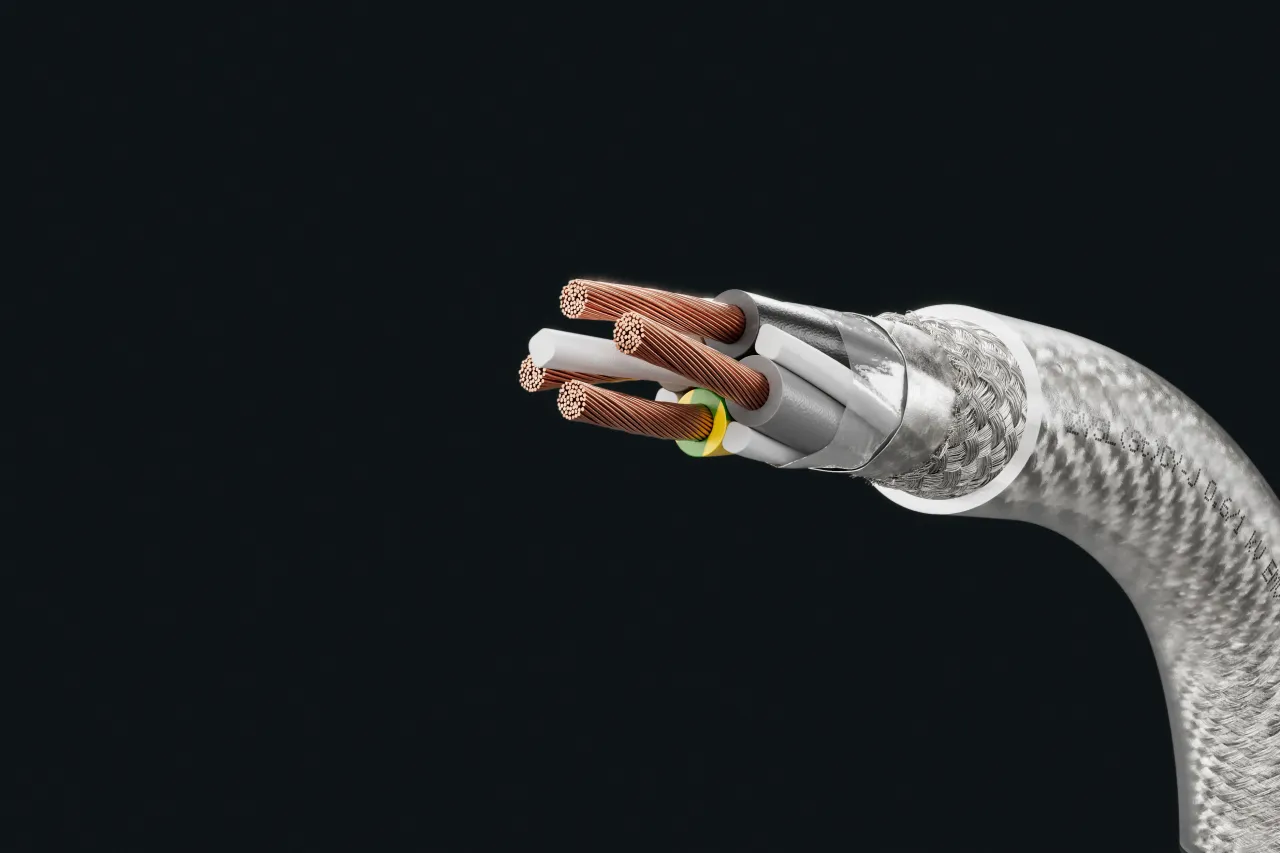

Cable image - 2YSL(St)CY-J 0.6/1 kV EMV
+
-

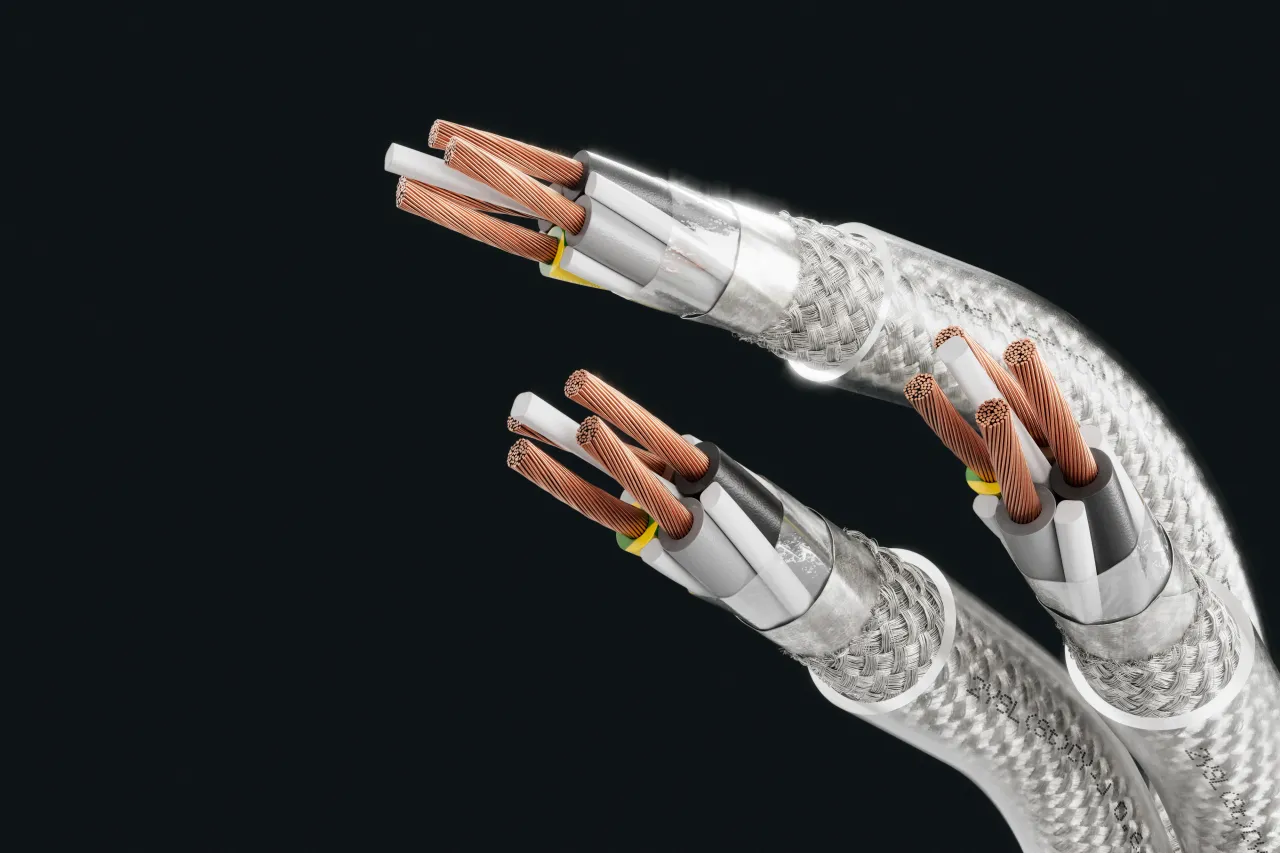

Cable image - 2YSL(St)CY-J 0.6/1 kV EMV
+
-
Cable image - 2YSL(St)CY-J 0.6/1 kV EMV
+
-

Contact us

Are you interested in this product?

Dogan Özcan, MSc

Product supervisor

+43 (0) 1 70170-154
[email protected]

Options

Add to inquiry
Number of cores x nominal cross-section (mm²)
Max. conductor resistance (Ω/km)
Outer diameter appr. (mm)
Total weight appr. (kg/km)
Standard lengths/packing (m)
4 G 1,5
13.3
10.6
244
500 T, 1000 T
4 G 2,5
7.98
12.3
318
500 T, 1000 T
4 G 4
4.95
14.0
515
500 T, 1000 T
4 G 6
3.3
16.1
670
500 T, 1000 T
4 G 10
1.91
19.7
914
500 T, 1000 T
4 G 16
1.21
23.0
1367
500 T, 1000 T
4 G 25
0.78
27.3
1970
500 T, 1000 T
4 G 35
0.554
30.3
2763
500 T, 1000 T
4 G 50
0.386
35.0
3126
500 T, 1000 T
4 G 70
0.272
40.0
4182
500 T, 1000 T
4 G 95
0.206
45.0
5725
500 T, 1000 T
4 G 120
0.161
51.9
6504
500 T
4 G 150
0.129
57.5
7043
300 T
4 G 185
0.106
61.1
8384
300 T
4 G 240
0.801
70.0
12500
300 T

Technical changes reserved.

All figures are therefore without guarantee.
