1-CYKCY

Download PDF

Add to inquiry

Download PDF

To inquiry

PVC/PVC copper energy cables, screened

Low Voltage Cables 0,6/1 kV

The cables are designed for fixed distribution of electricity in the ground or in the outdoor environment.

Design

This product consists of:

  • 1
    Copper conductor, round solid (RE), round stranded (RM) resp. sector-shaped stranded (SM)
  • 2
    Core insulation (PVC), cores stranded
  • 3
    Inner covering (EPDM or plastic tape)
  • 4
    Sheat (PVC black)
  • 5
    Screen (Cu tape)
  • 6
    Inner covering (plastic tape)
  • 7
    Outer covering (PVC black, UV-resistant)

Technical Data

Standard: TP PRAKAB 03/07
Certificate: EZÚ Czech Republic
Test Voltage: core/core 4 kV / 50 Hz
Rated Voltage: 0.6/1 kV
Bending radius (min.):
  • 12 x Ø of cable up to 15 mm
  • 15 x Ø of cable over 15 mm
Fire properties:
  • ČSN EN 60332-1-2: self-extinguishing
  • CPR: Eca
Core identification:
  • ČSN 33 0166 ed. 2
  • ČSN EN 50334
Temperature range:
  • Laying temperature: min. -5°C
  • Operating temperature: -50°C up to 70°C
  • Conductor temperature: max. 70°C
  • Short circuit temperature: max. 160°C

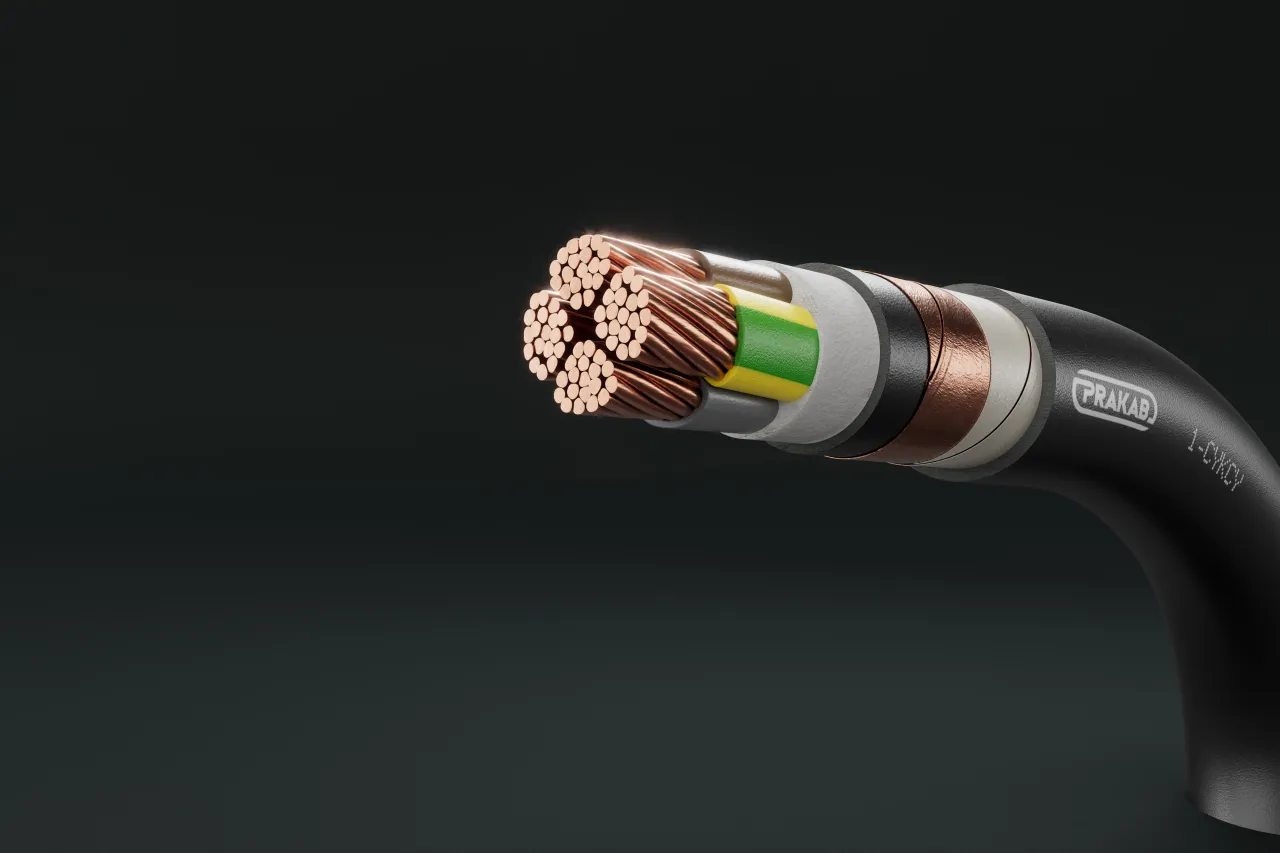

Cable image - 1-CYKCY
+
-

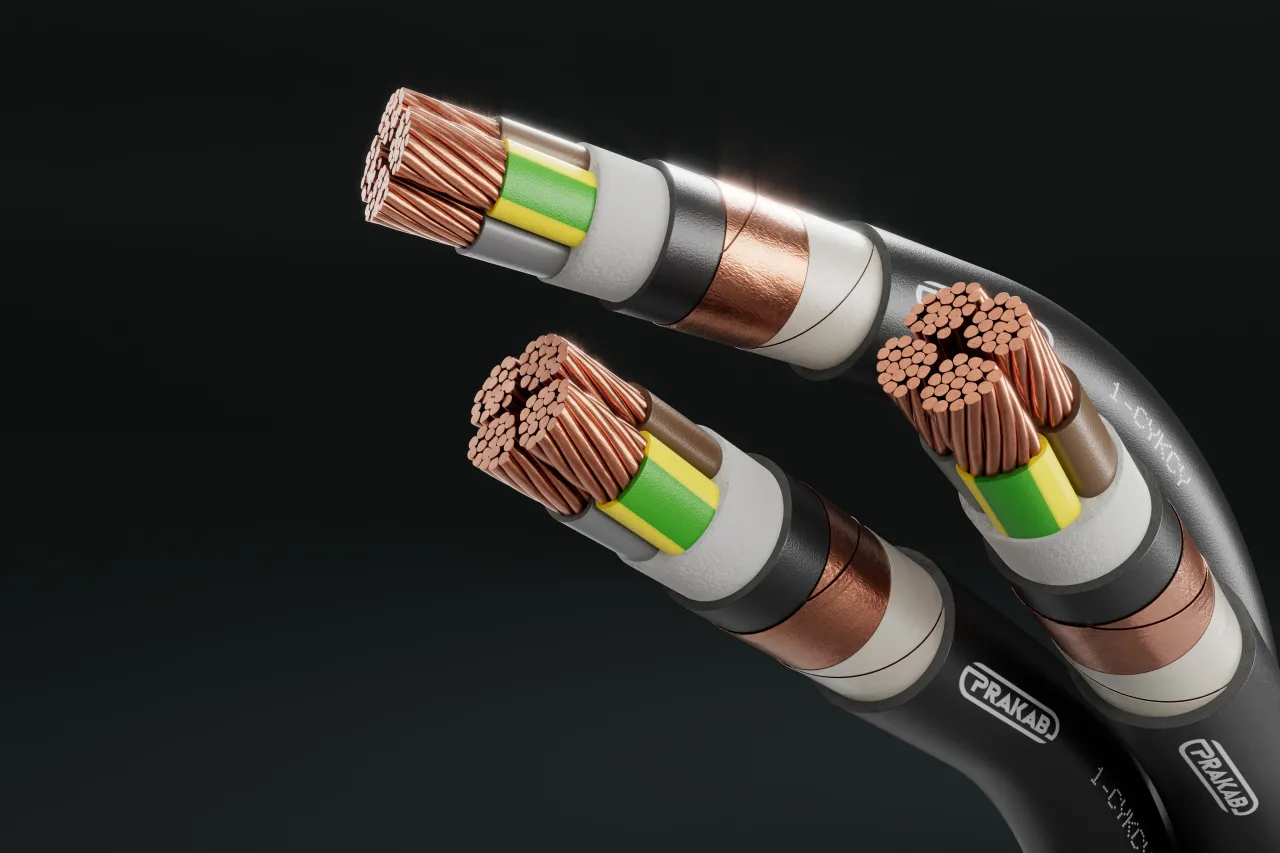

Cable image - 1-CYKCY
+
-
Cable image - 1-CYKCY
+
-

Contact us

Are you interested in this product?

Vojtěch Cuřín

Product supervisor

+420 731 226 023
[email protected]

Options

Add to inquiry
Number of cores x nominal cross-section (mm²)
Max. conductor resistance (Ω/km)
Current rating in the earth (A)
Current rating in the air (A)
Outer diameter appr. (mm)
Total weight appr. (kg/km)
2 x 1.5 RE
12.1
32
20
12.1
240
3 x 1.5 RE
12.1
27
20
12.6
265
4 x 1.5 RE
12.1
27
20
13.3
290
5 x 1.5 RE
12.1
19
15
14.6
330
7 x 1.5 RE
12.1
16
13
15.5
385
12 x 1.5 RE
12.1
13
10
19.3
610
19 x 1.5 RE
12.1
11
9
22.6
820
24 x 1.5 RE
12.1
9
8
25.6
1025
2 x 2.5 RE
7.41
42
27
12.8
275
3 x 2.5 RE
7.41
36
26
13.8
310
4 x 2.5 RE
7.41
36
26
14.6
355
5 x 2.5 RE
7.41
25
20
15.6
400
7 x 2.5 RE
7.41
22
16
16.5
470
12 x 2.5 RE
7.41
17
13
21.2
760
19 x 2.5 RE
7.41
14
11
24.5
1060
24 x 2.5 RE
7.41
13
10
28.7
1380
2 x 4 RE
4.61
54
37
14.9
360
3 x 4 RE
4.61
47
34
15.2
410
4 x 4 RE
4.61
47
34
16.9
460
5 x 4 RE
4.61
32
26
18.1
545
7 x 4 RE
4.61
28
22
19.4
710
2 x 6 RE
3.08
68
48
15.9
440
3 x 6 RE
3.08
59
44
16.5
480
4 x 6 RE
3.08
59
44
18.0
580
5 x 6 RE
3.08
41
32
19.0
660
7 x 6 RE
3.08
35
28
20.8
870
2 x 10 RE
1.83
90
66
17.3
570
4 x 10 RE
1.83
79
60
19.9
825
3 x 16 RE
1.15
102
80
20.1
870
4 x 16 RE
1.15
102
80
22.5
1115
5 x 16 RE
1.15
71
59
24.4
1325
4 x 25 RM
0.727
132
105
27.9
1715
3 x 35 RM
0.524
159
129
30.6
1790
4 x 50 SM
0.387
188
157
32.0
2470
3 x 240 + 120 SM/RM
0.075 / 0.124
464
445
61.0
9330

Technical changes reserved.

All figures are therefore without guarantee.
