PVC/PVC aluminium energy cables, pendant with support steel rope

Aluminium 0.6/1 kV

Cables are designed for outdoor distribution of electrical energy in suspension design.

Design

This product consists of:

  • 1
    Aluminium conductor, round solid (RE)
  • 2
    Core insulation (PVC)
  • 3
    Inner covering (EPDM)
  • 4
    Galvanized steel rope
  • 5
    Sheath (PVC black, UV-resistant)

Technical Data

Standard: TP PRAKAB 02/08
Certificate: EZÚ Czech Republic
Test Voltage: 4 kV / 50 Hz
Rated Voltage: 0.6/1 kV
Bending radius (min.): 15 x Ø of cable
Fire properties:
  • ČSN EN 60332-1-2: self-extinguishing
  • CPR: Eca
Core identification: ČSN 33 0166 ed. 2
Temperature range:
  • Laying temperature: min. -5°C
  • Operating temperature: -50°C up to 70°C
  • Conductor temperature: max. 70°C
  • Short circuit temperature: max. 160°C

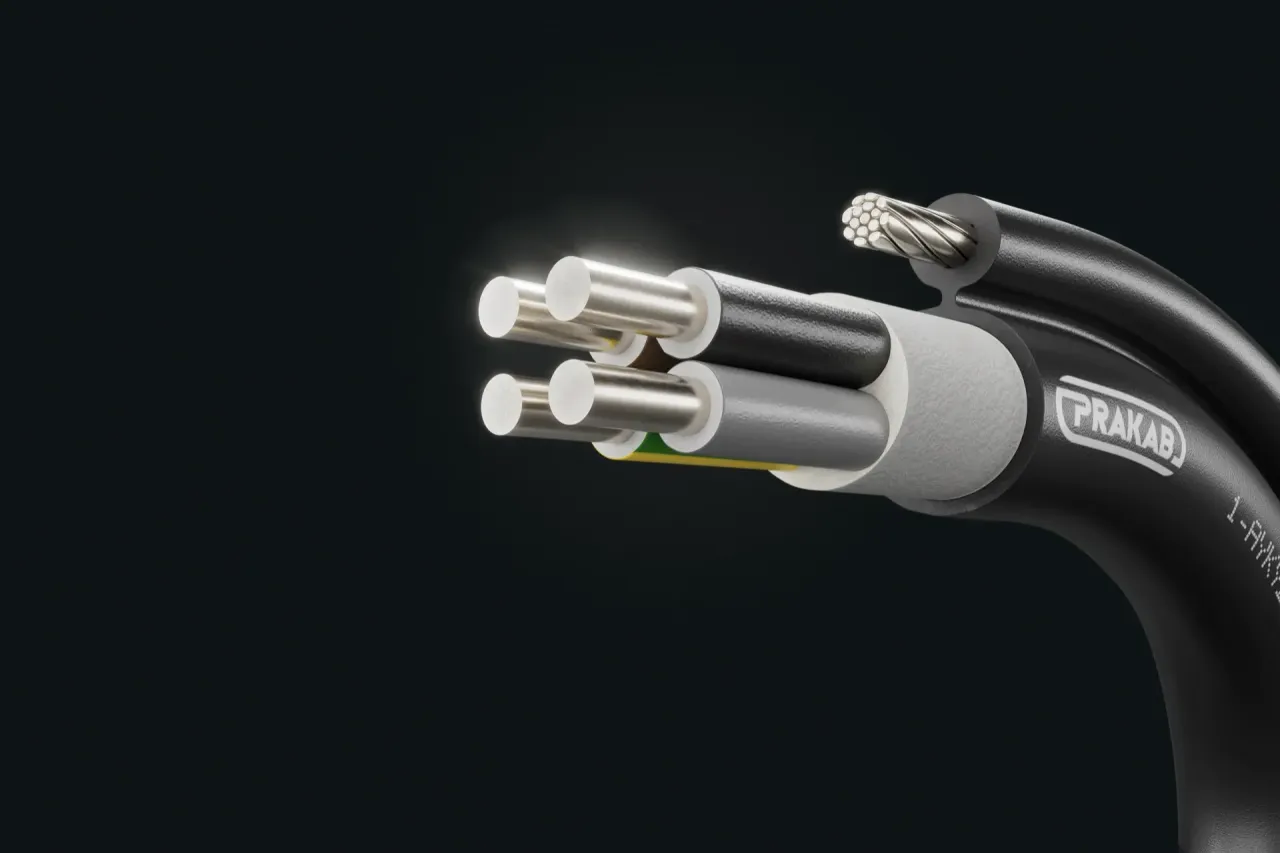

Cable image - 1-AYKYz
+
-

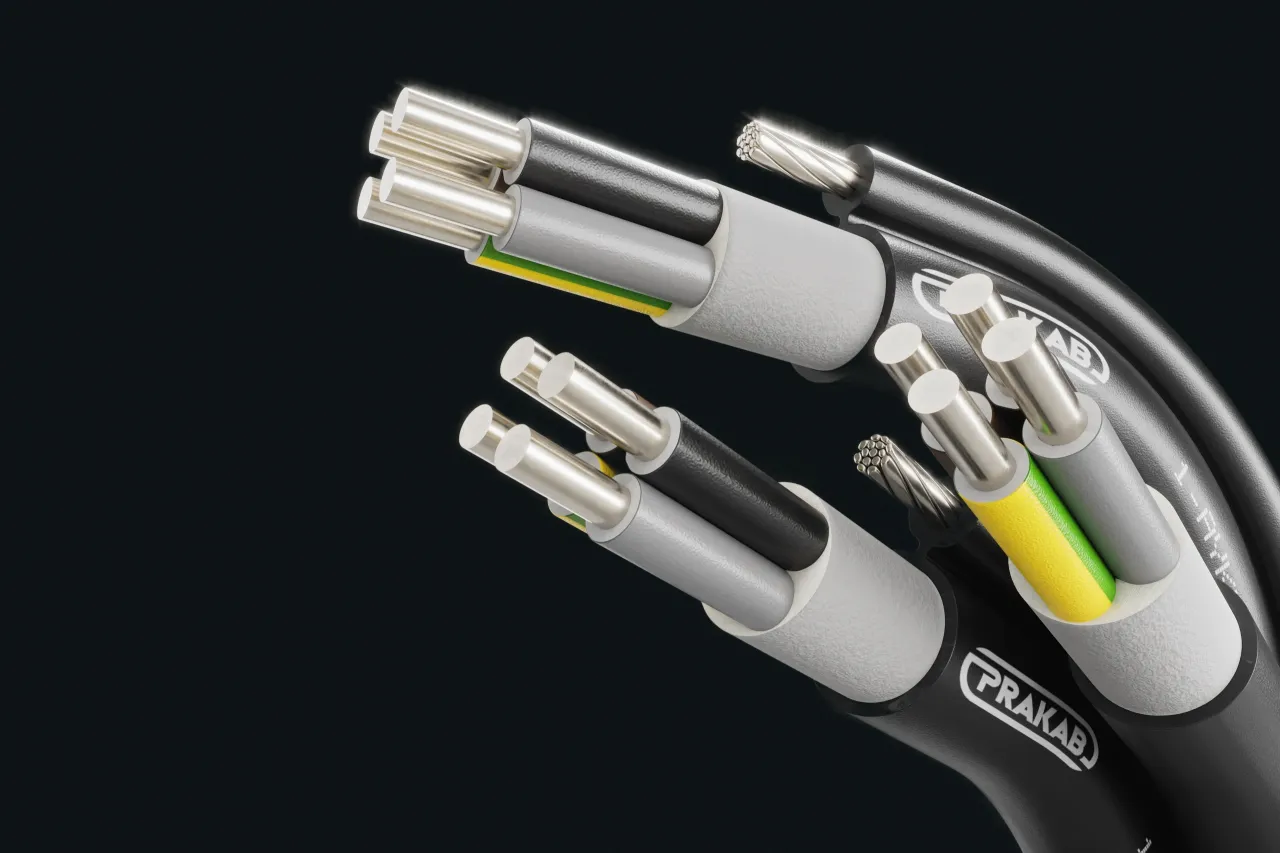

Cable image - 1-AYKYz
+
-
Cable image - 1-AYKYz
+
-

Contact us

Are you interested in this product?

Jan Pietroň

Product supervisor

+420 604 471 907
[email protected]

Options

Add to inquiry
Number of cores x nominal cross-section (mm²)
Max. conductor resistance (Ω/km)
Current rating in the air (A)
Outer diameter appr. (mm)
Total weight appr. (kg/km)
4 x 10 RE
3.08
45
16.3
570
4 x 16 RE
1.91
61
19.0
710
4 x 25 RE
1.2
81
22.9
1035
4 x 35 RE
0.868
99
25.2
1220

Technical changes reserved.

All figures are therefore without guarantee.
