PVC/PVC hybrid energy cables, with polymeric tube
Power Cables and Overhead Lines 0.6/1 kV
The hybrid cables consist of a power metallic cable designed for the transmission of electrical energy and a polymer tube which is placed under the common outer sheath of the hybrid cable. The cables are designed for fixed distribution in power plants, distribution networks, industrial equipment, switchboards, etc., in the ground or in the external environment. The cables are UV-resistant.

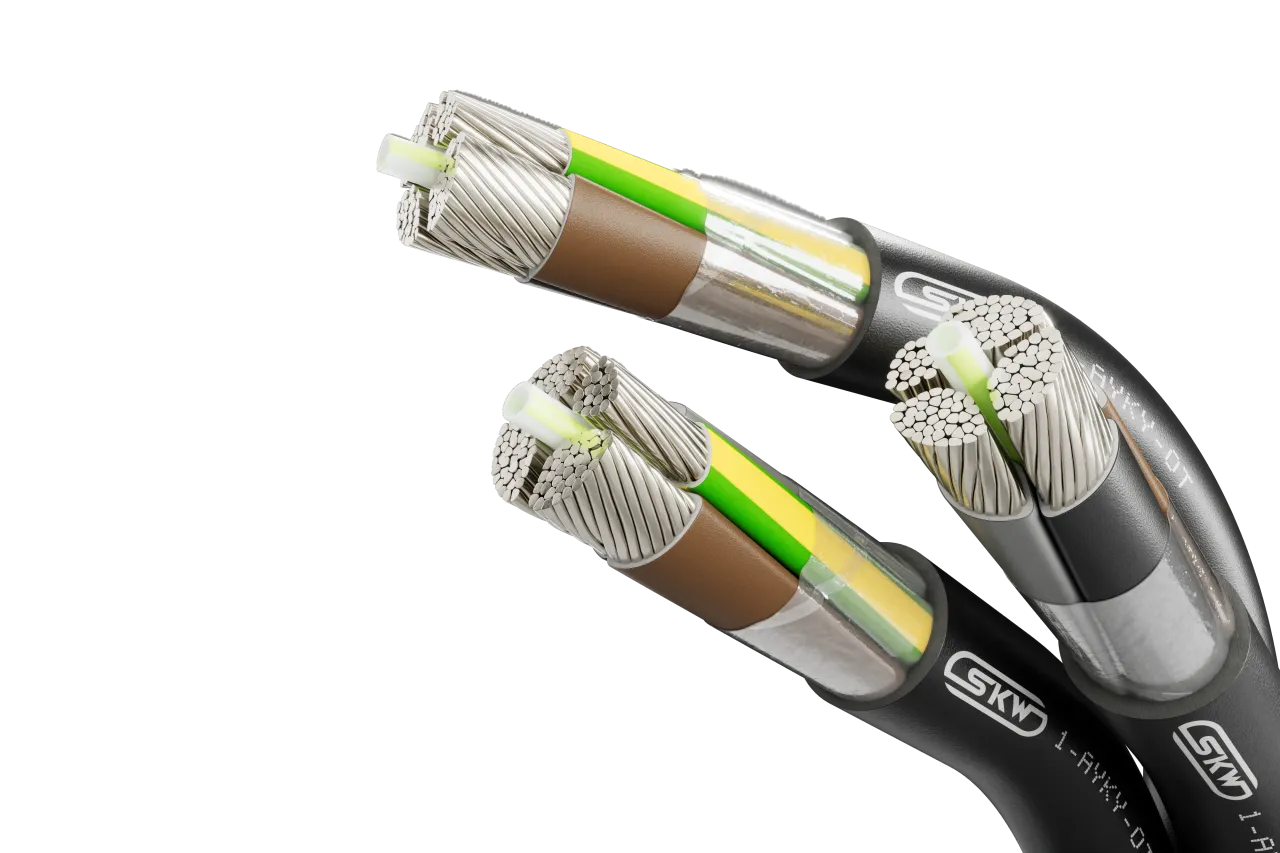

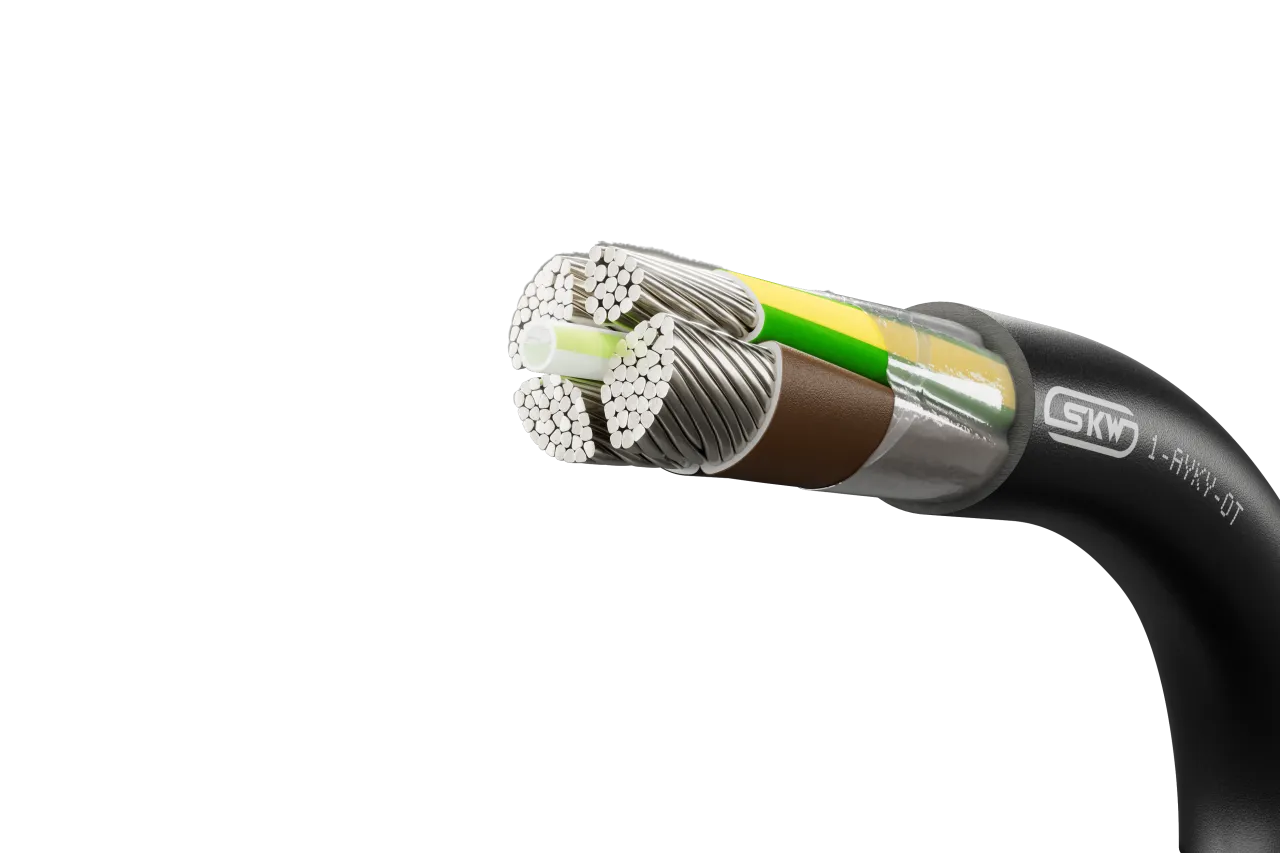

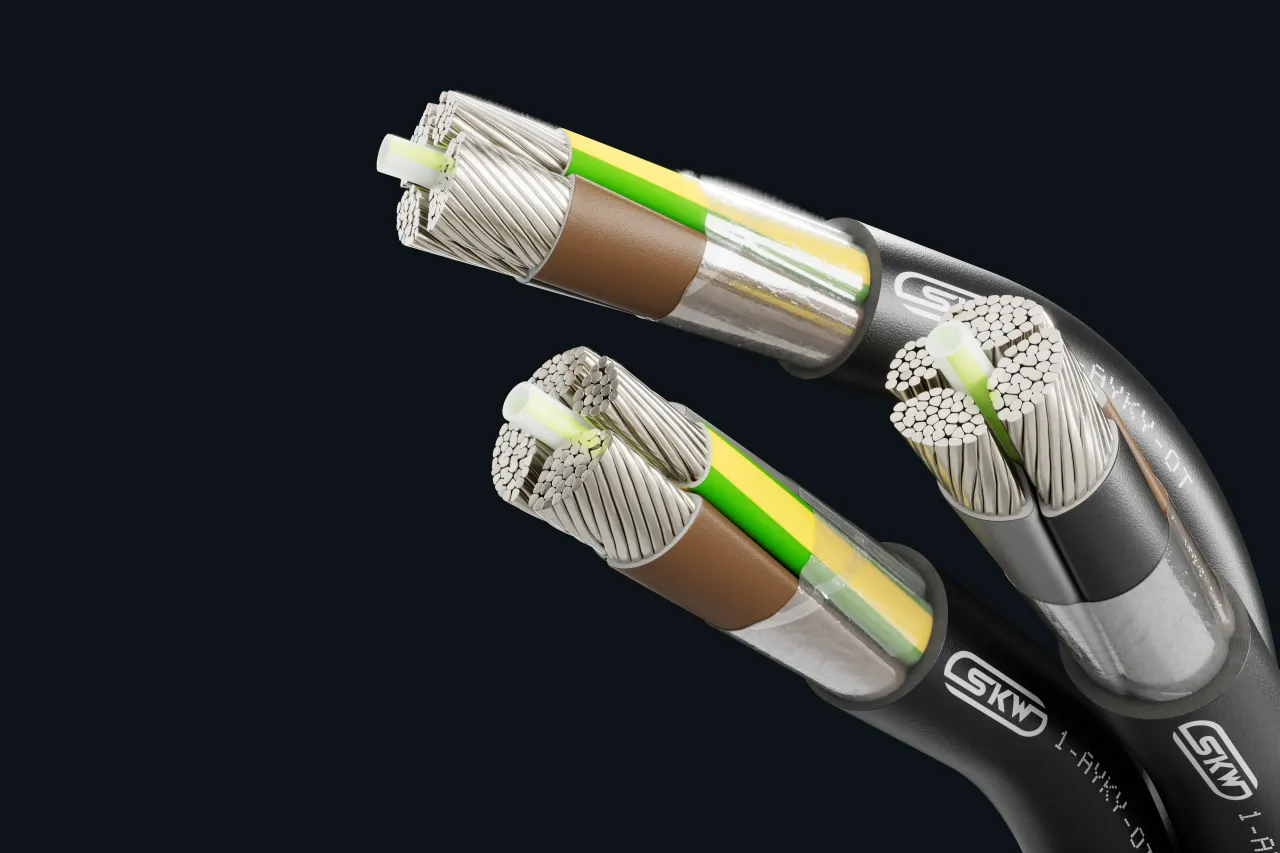

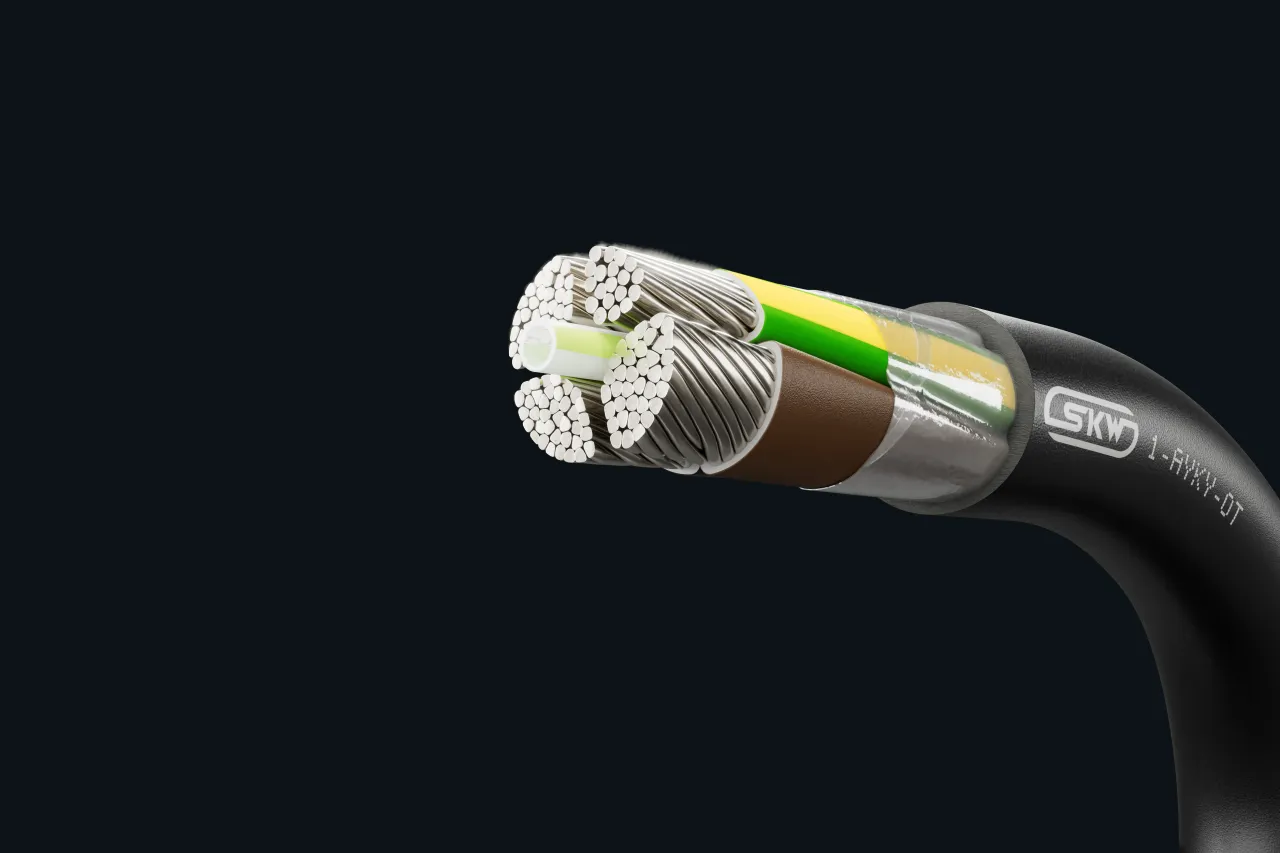

Design
This product consists of:
- 1Optical cable (is not included power cable)
- 2HDPE tube
- 3Aluminium conductor, sector-shaped stranded (SM)
- 4Core insulation (PVC)
- 5Inner covering (Plastic tape)
- 6Sheath (PVC black, UV-resistant)
Technical Data
Standard: TP PRAKAB 02/08
Certificate: EZÚ Czech Republic
Test Voltage: core/core 4 kV / 50 Hz
Rated Voltage: 0.6/1 kV
Bending radius (min.): 15 x Ø of cable
Fire properties:
- EN 60332-1-2: flame retardant and self-extinguishing
- CPR Classification: Eca
Core identification: ČSN 33 0166 ed. 2
Temperature range:
- Laying temperature: min. -5°C
- Operating temperature: -50°C up to 70°C
- Conductor temperature: max. 70°C
