PVC/PVC aluminium energy cables
Aluminium 0.6/1 kV
The cables are designed for distribution of electrical energy in fixed installation in the ground, cable ducts and in the outdoor environment.

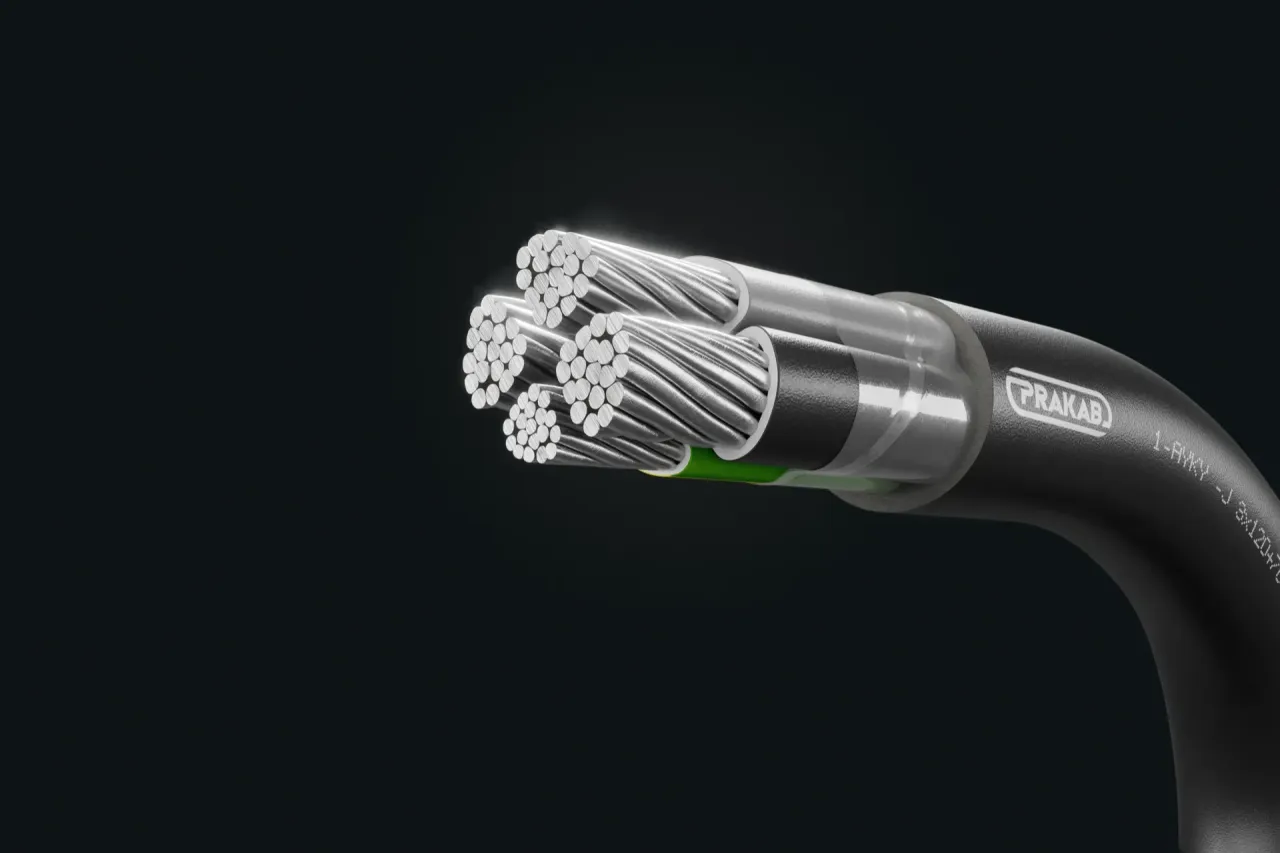

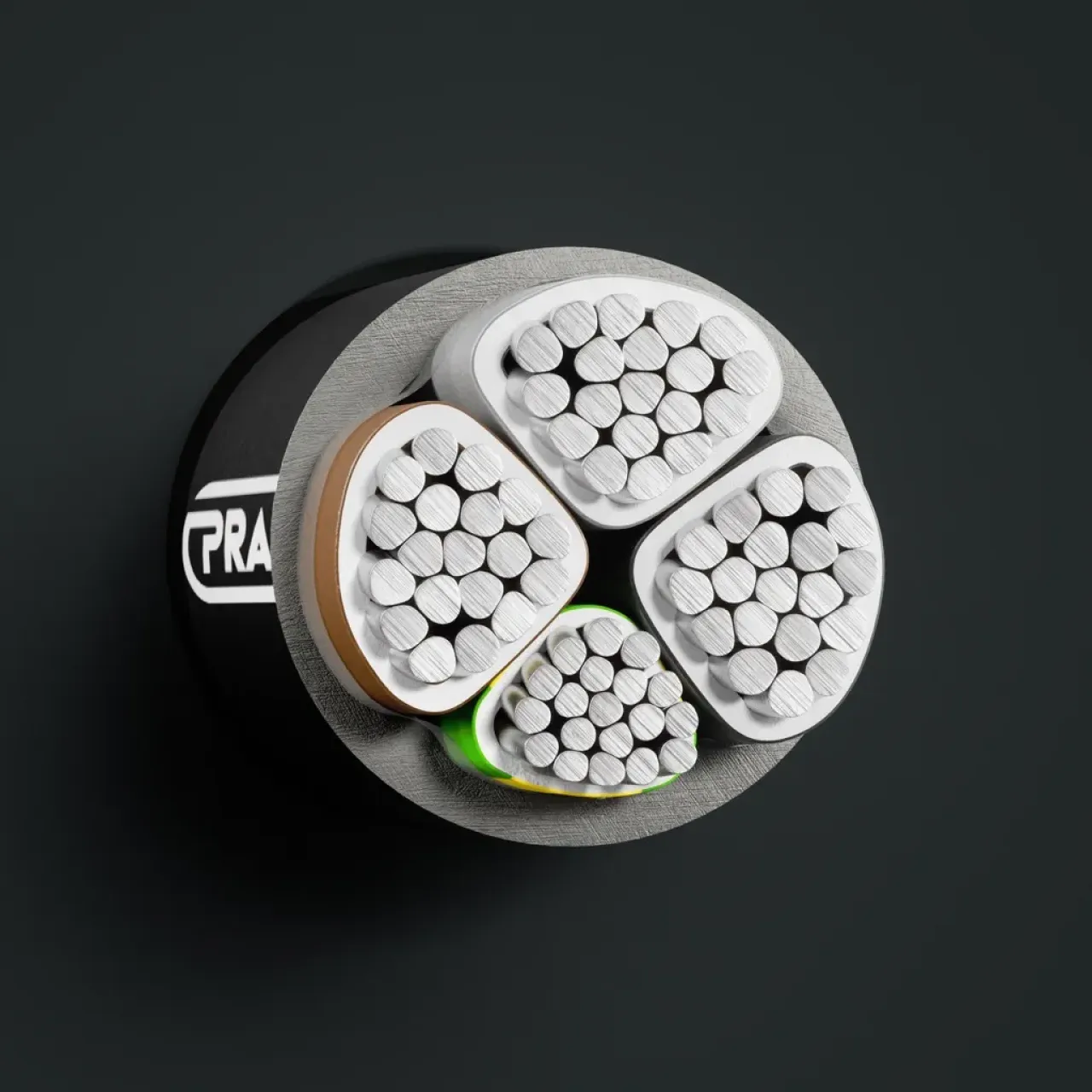

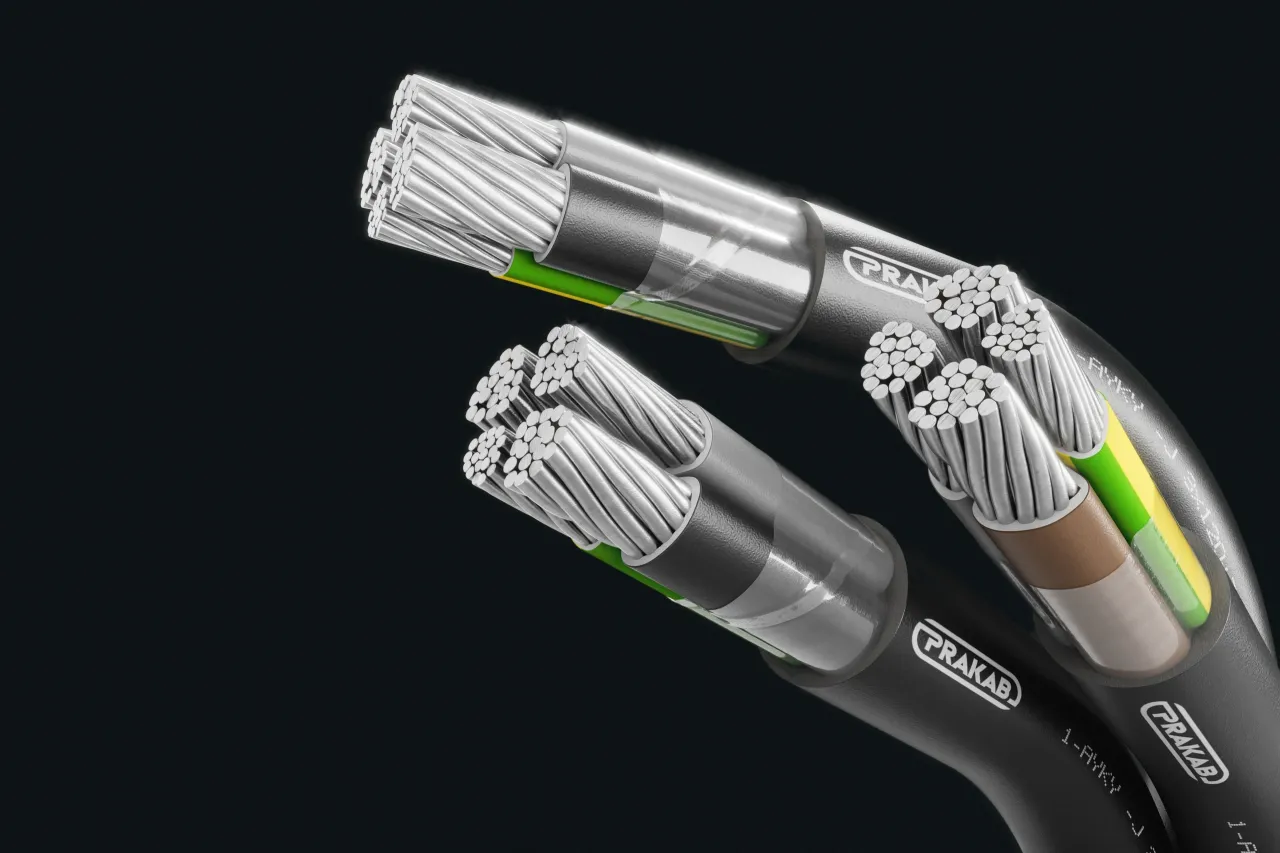

Design
This product consists of:
- 1Aluminium conductor, round solid (RE), sector-shaped solid (SE), round stranded (RM), resp. sector-shaped stranded (SM)
- 2Core insulation (PVC)
- 3Inner covering (EPDM or plastic tape)
- 4Sheath (PVC black, UV-resistant)
Technical Data
Standard: TP PRAKAB 02/08
Certificate: EZÚ Czech Republic
Test Voltage: core/core 4 kV / 50 Hz
Rated Voltage: 0,6/1 kV
Bending radius (min.):
- 12 x for Ø of cable up to 15 mm
- 15 x for Ø of cable over 15 mm
Fire properties:
- ČSN EN 60332-1-2: self-extinguishing
- CPR Classification: Eca
Core identification: ČSN 33 0166 ed. 2
Temperature range:
- Laying temperature: min. -5°C
- Operating temperature: -50°C up to 70°C
- Conductor temperature: max. 70°C
- Short circuit temperature: max. 160°C
